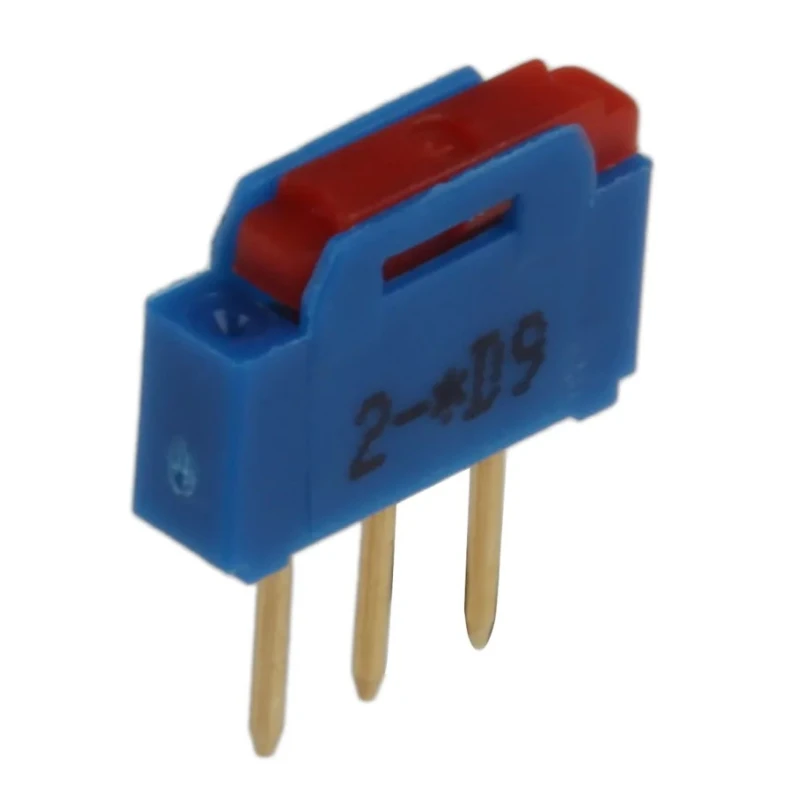

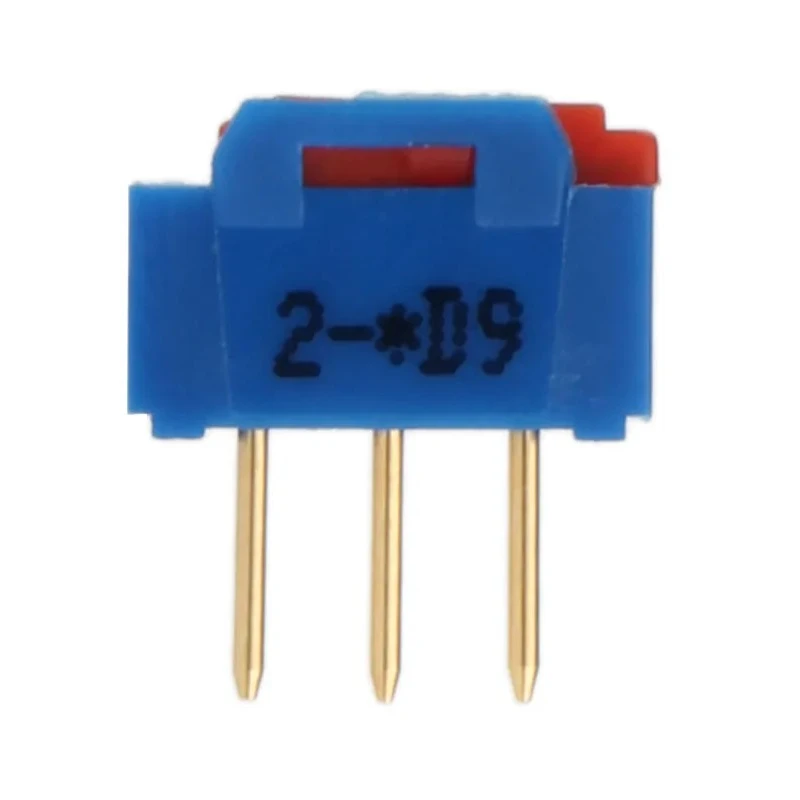

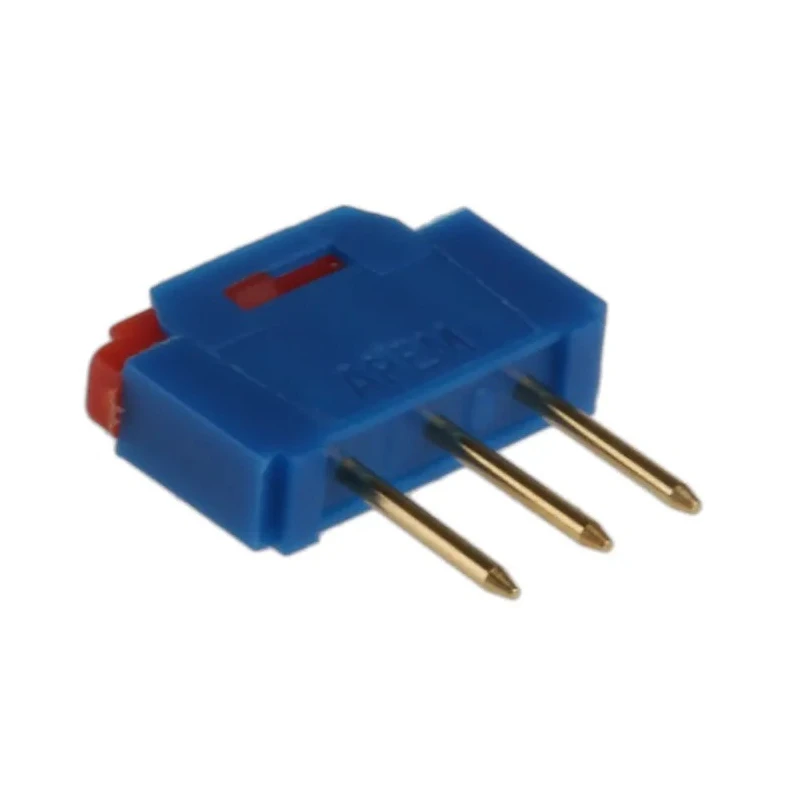

APEM PCB Slide Switch SPDT Latching 12V DC 500mA Fibreglass Reinforced Polyamide NK236

APEM NK236 PCB Slide Switch SPDT Latching 12V DC 500mA features a miniature design with a flush actuator made of fibreglass reinforced polyamide, making it an ideal choice for industrial and electronic applications requiring durable and compact slide switches.

This switch provides a single pole double throw (SPDT) contact configuration with gold plated contacts to ensure reliability and long electrical lifespan. The latching operation prevents accidental shifting, thereby maintaining circuit stability in critical systems.

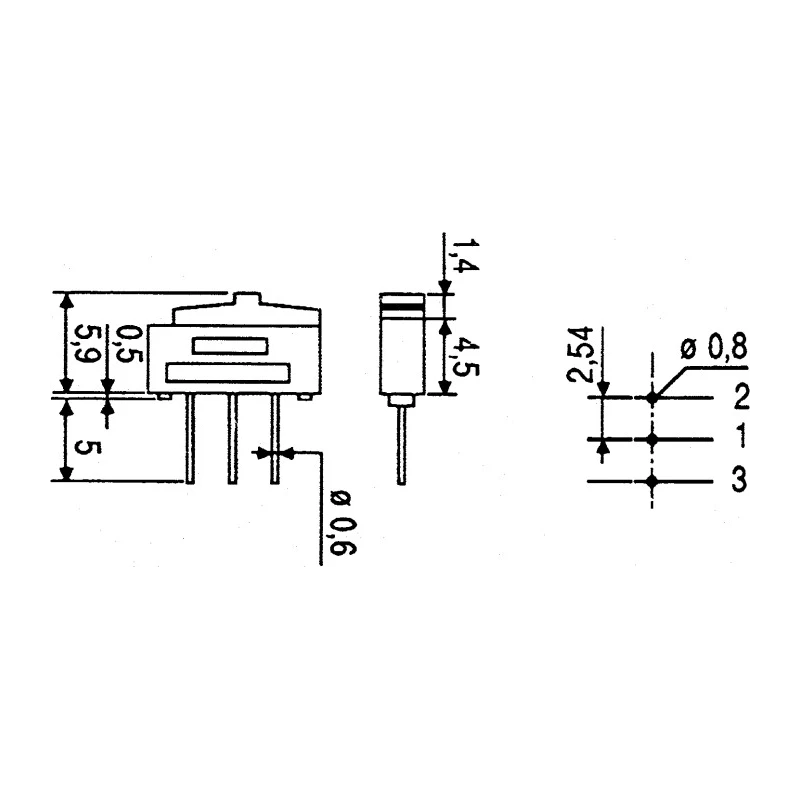

Designed for through hole PCB mounting with a 2.54mm mounting pitch, the NK236 occupies minimal board space with dimensions of 10mm in length, 6.5mm in depth, and 2.6mm in width, enabling easy integration into dense electronic circuits.

Operating over a broad temperature range from -40°C to 85°C, this switch complies with stringent UL and IEC standards, certifying its suitability for industrial, automation, instrumentation, and electronic manufacturing uses.

The mechanical life of 2000 cycles supports applications where reliable on/off switching is frequently required. Its robust fibreglass reinforced polyamide actuator enhances mechanical stability and longevity.

Typical use cases include control panels, automated machinery, and electronic devices requiring precision toggling and robust switch performance. Single pole double throw (SPDT) configuration. Latching switch operation to secure position.

Through hole terminal type suitable for PCB soldering. Compact size with 10mm×6.5mm×2.6mm dimensions. Gold plated contact for superior conductivity. Mechanical life rated at 2000 cycles. Operating temperature range: -40°C to 85°C.

Compliant with UL and IEC standards. Fibreglass reinforced polyamide actuator material. This product is ideal for industrial, automation, electronic manufacturing, and laboratory equipment requiring durable slide switch solutions.
