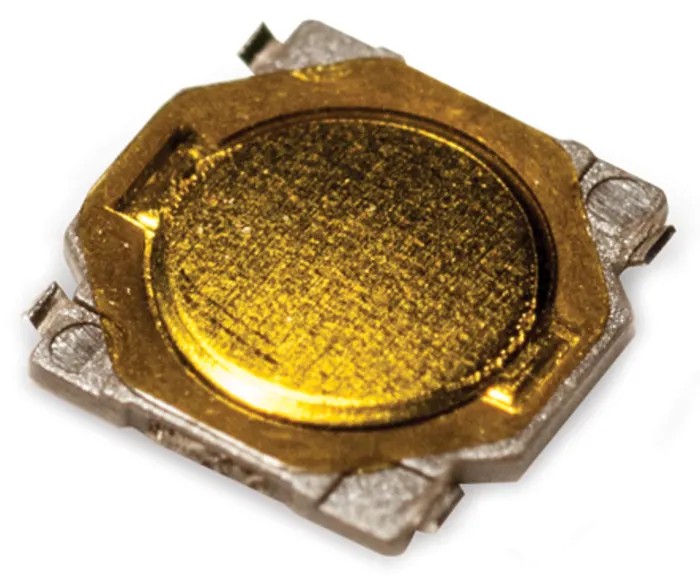

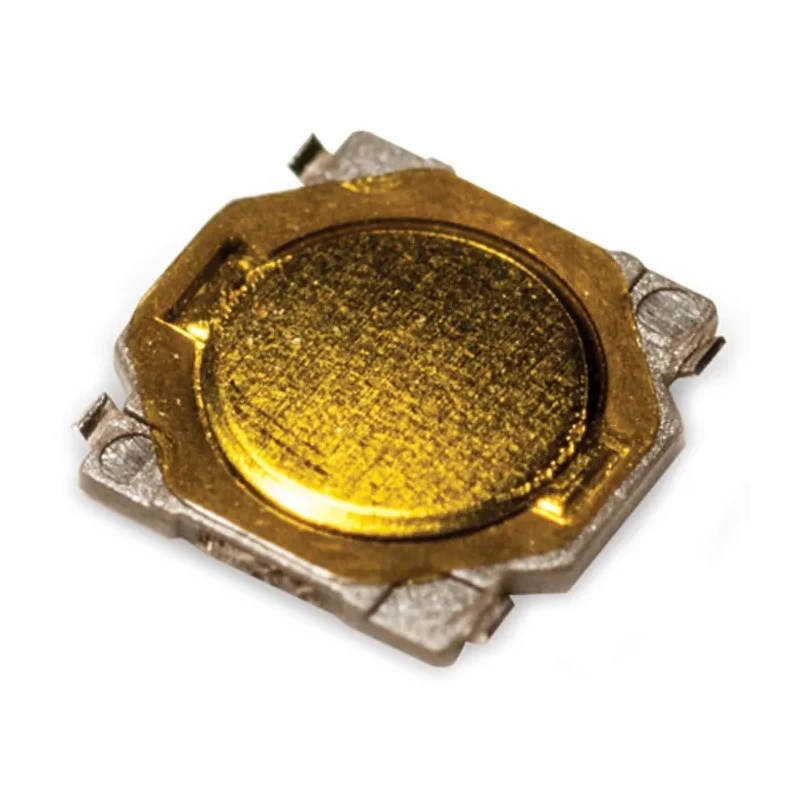

C & K Gold Tactile Switch Button SPST 50mA 12 V dc Surface Mount IP40

Name: C & K Gold Tactile Switch Button SPST 50mA 12 V dc Surface Mount IP40
Brand: C & K
SKU: 397733
Price: 7.98 INR
Availability: InStock



Category Tactile Switch Brand C & K Condition New

Specifications

Country of Origin	China
Brand	C & K
Height	2mm
Length	3.7mm
Model	IP40
IP Rating	IP40
Width	3.7mm
Mount Type	Surface
Series	PTS
Maximum Operating Temperature	85°C
Contact Configuration	SPST
Switch Configuration	(On)-Off
Minimum Operating Temperature	-30°C
Terminal type	J Bend
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Gold
Contact DC Voltage	12V dc
Actuator Style	Button
Actuator Orientation	Straight
Switch Contact Current	50mA
Operating Force	2.3N
Mechanical Life	500000Operations

Key Features

The switch features a durable gold-colored button actuator with straight orientation.
Compact 3.7 mm x 3.7 mm footprint with 2 mm height thickness for low profile designs.
Designed for surface mounting with J bend terminal type for secure soldering.
Operates with a mechanical life of up to 500,000 cycles ensuring long-lasting performance.
Provides an operating force of 2.3N for tactile responsiveness.
Rated for use at temperatures ranging from -30°C to 85°C, suitable for varied environments.
IP40 rated enclosure protects against ingress of solid objects larger than 1mm.
Silver plated contacts ensure reliable electrical connectivity and signal integrity.

Product Description

C & K PTS540 JK035 SMTR LFS is a high-quality gold tactile switch button designed for surface mount applications where space is limited and reliability is critical. This compact tactile switch has a low profile with dimensions of 3.7 mm by 3.7 mm and a height of just 2 mm, making it ideal for modern electronic devices requiring ultra-low profile components.

The switch implements a single pole single throw (SPST) momentary contact configuration with a (On)-Off switch operation. The actuator is a gold-colored, straight button style that offers a tactile feedback with an operating force of 2.3N. This mechanical design supports up to 500,000 cycles, assuring extended durability.

The contact current rating is 50mA at 12 V dc, suitable for low voltage electronic circuits. The J bend terminal type enables sturdy surface mounting, improving assembly reliability. The device is rated IP40 for ingress protection, offering resistance to solid objects larger than 1 mm but not water resistance, which is typical for tactile switches used in indoor electronic applications.

This switch is RoHS compliant, ensuring it is free from harmful substances, making it appropriate for environmentally conscious manufacturers. It is particularly useful in applications including remote controls, Bluetooth headsets, MP3 accessories, and other small electronic devices requiring precise tactile input.

The 3.7 x 3.7 mm compact footprint supports minimal PCB space usage. The IP40 rating protects against dust and solid particle ingress. Operating temperature range from -30°C to 85°C accommodates a wide range of environmental conditions.

Momentary switch operation provides fast and reliable user interface response. Silver plated contacts ensure excellent electrical conductivity and corrosion resistance.

Its compact size and reliable performance make the C & K PTS540 JK035 SMTR LFS tactile switch a preferred choice for industrial, consumer electronics, telecommunications, and automation applications.

Explore a wide range of Tactile Switches and keyboard switches to suit various electronic design requirements in EnvMart’s Switches & Sockets category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This tactile switch has a compact footprint of 3.7 mm x 3.7 mm and a height of 2 mm, making it suitable for low-profile designs.

The operating force for this tactile switch is 2.3N, providing tactile responsiveness during operation.

The switch is rated for a contact current of 50mA at 12V DC, making it suitable for low voltage electronic circuits.

It features a J bend terminal type, which allows for secure soldering during surface mounting.

This tactile switch is designed for a mechanical life of up to 500,000 operations, ensuring extended durability.

The switch has an IP40 rating, which protects against the ingress of solid objects larger than 1 mm but does not provide water resistance.

It operates effectively within a temperature range of -30°C to 85°C, accommodating various environmental conditions.

This model features a single pole single throw (SPST) configuration with a momentary (On)-Off operation.

Yes, this switch is RoHS compliant, ensuring it is free from harmful substances and suitable for environmentally conscious applications.

It is particularly useful in applications such as remote controls, Bluetooth headsets, and other small electronic devices requiring precise tactile input.

The switch features a gold-colored button actuator with a straight orientation, providing tactile feedback.

This tactile switch belongs to the PTS series, designed for surface mount applications.
