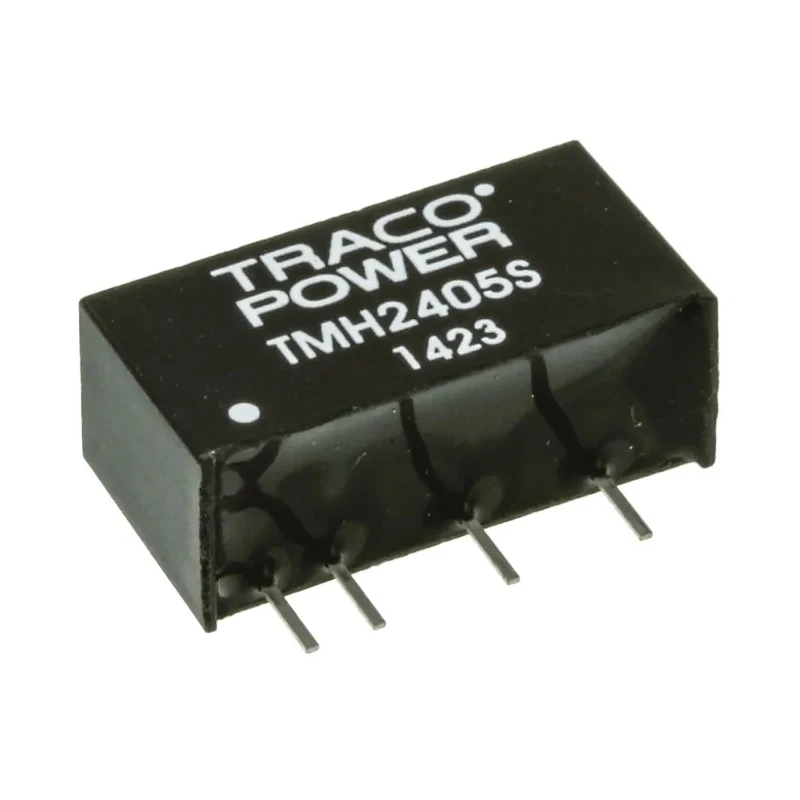

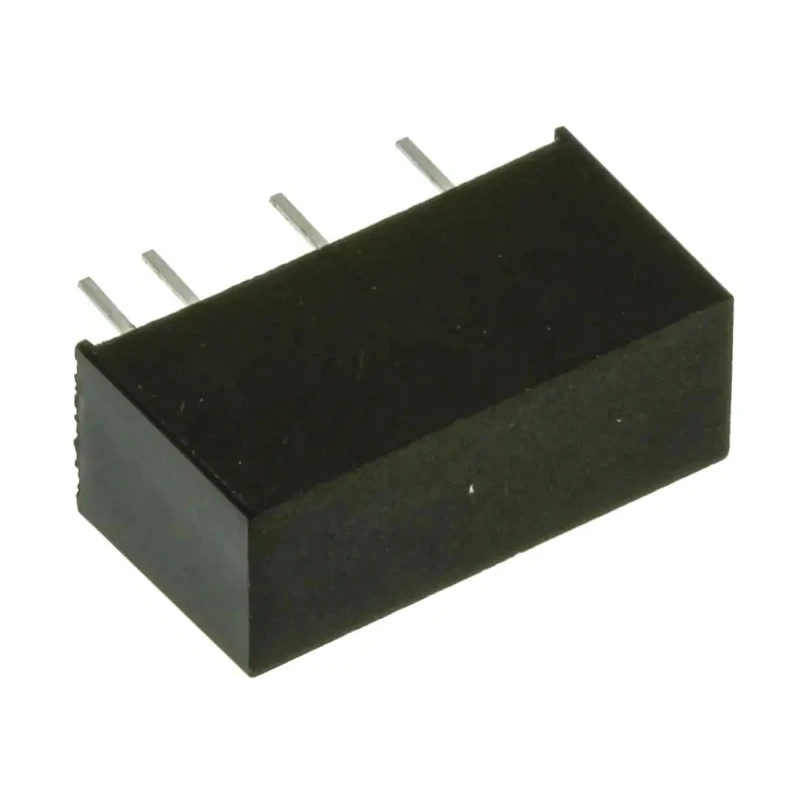

TRACOPOWER DC/DC Converter 5V DC Output 400mA 24V DC Input 1W PCB SIP Package 6-Pin TMH 2405S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMH DC/DC Converter, 5V dc/ 400 mA, 24V |
| Brand | TRACOPOWER |
| Efficiency | 77% |
| Length | 19.5mm |
| Model | TMH 2405S |
| Depth | 10.2mm |
| Width | 7.6mm |
| Mount Type | PCB |
| Series | TMH |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 24V dc |
| Minimum Input Voltage | 0V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 400mA |
| Output Voltage Adjustment Range | 0/24 V |
| Isolation Voltage | 1kV dc |
Key Features
- DC/DC converter provides stable 5V output at 400mA current.
- Operates at 77% efficiency to minimize power loss.
- Wide input voltage range from 21.6V to 26.4V DC.
- Compact 6-pin SIP package designed for PCB mounting.
- Provides 1kV DC electrical isolation for safety.
- Operates reliably between -40°C and +85°C temperature range.
- Mean time between failures (MTBF) is 2,000,000 hours.
Product Description
The TRACOPOWER TMH 2405S is a high-performance DC/DC Converter designed to deliver 5V DC output voltage with a maximum current of 400mA and an overall power rating of 1 watt. It accepts an input voltage range between 21.6V and 26.4V DC, making it suitable for applications that require voltage step-down conversion from stable 24V DC sources.

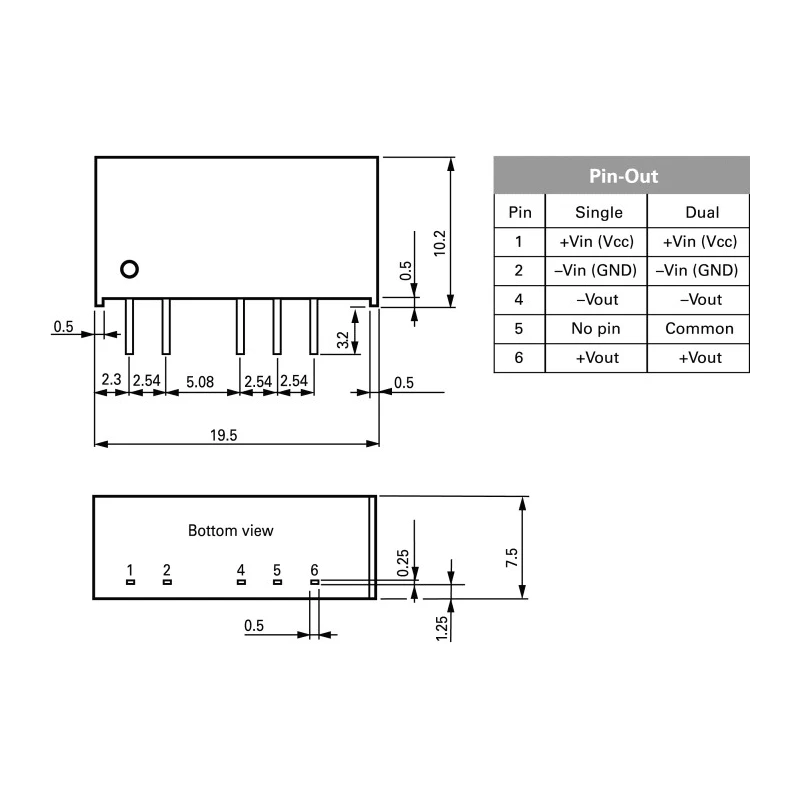

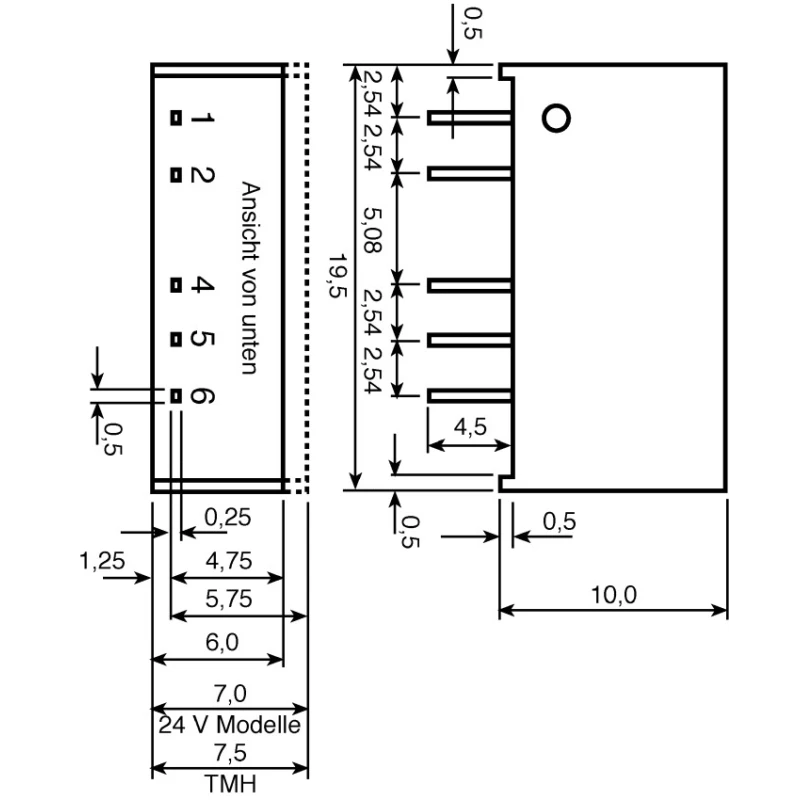

This device features a durable SIP (Single Inline Package) with 6 pins, enabling straightforward PCB mounting and integration into electronic circuits where space is limited. The compact size with dimensions 19.5mm (length) x 7.6mm (width) x 10.2mm (depth) helps maintain minimal board space usage.
It provides electrical isolation of 1kV DC, enhancing safety and preventing cross-interference between electrical segments. With a high efficiency rating of 77%, the TMH 2405S minimizes power loss and heat generation, thereby reducing system energy costs.
Designed to operate over a wide temperature range from -40°C to +85°C, this converter is reliable in industrial, automation, and communications environments requiring robust thermal performance. The converter’s MTBF (Mean Time Between Failures) of 2,000,000 hours underscores its long-term operational stability and quality.
Compact design for minimal PCB footprint. Isolated output for enhanced safety and noise immunity. Wide operating temperature range supports harsh conditions. High efficiency reduces energy consumption and heat output. Designed for use in automation, medical electronics, sensor devices, and communication systems.
Robust SIP package ensures easy mounting and reliable connections. Long MTBF to ensure dependable performance over time.
Suitable for engineers and designers seeking an efficient, compact DC/DC converter for projects requiring isolated 5V power supply from a 24V input source. This TRACOPOWER model supports critical applications with strict power and safety requirements.
Explore more DC/DC Converters and power supplies at EnvMart for industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TMH 2405S provides a stable output voltage of 5V DC with a maximum output current of 400mA.
This model accepts an input voltage range from 21.6V to 26.4V DC.
It operates at an efficiency of 77%, which helps minimize power loss.
The dimensions of the TMH 2405S are 19.5mm in length, 7.6mm in width, and 10.2mm in depth.
The converter comes in a compact SIP (Single Inline Package) with 6 pins, designed for PCB mounting.
This model provides an isolation voltage of 1kV DC, enhancing safety and preventing cross-interference.
The TMH 2405S operates reliably within a temperature range of -40°C to +85°C.
The MTBF for the TMH 2405S is 2,000,000 hours, indicating its long-term operational stability.
This converter is suitable for applications in automation, medical electronics, sensor devices, and communication systems.
The maximum output power of this converter is 1 watt.
The TMH 2405S is designed for PCB mounting, making it easy to integrate into electronic circuits.
The minimum input voltage for the TMH 2405S is 0V.
