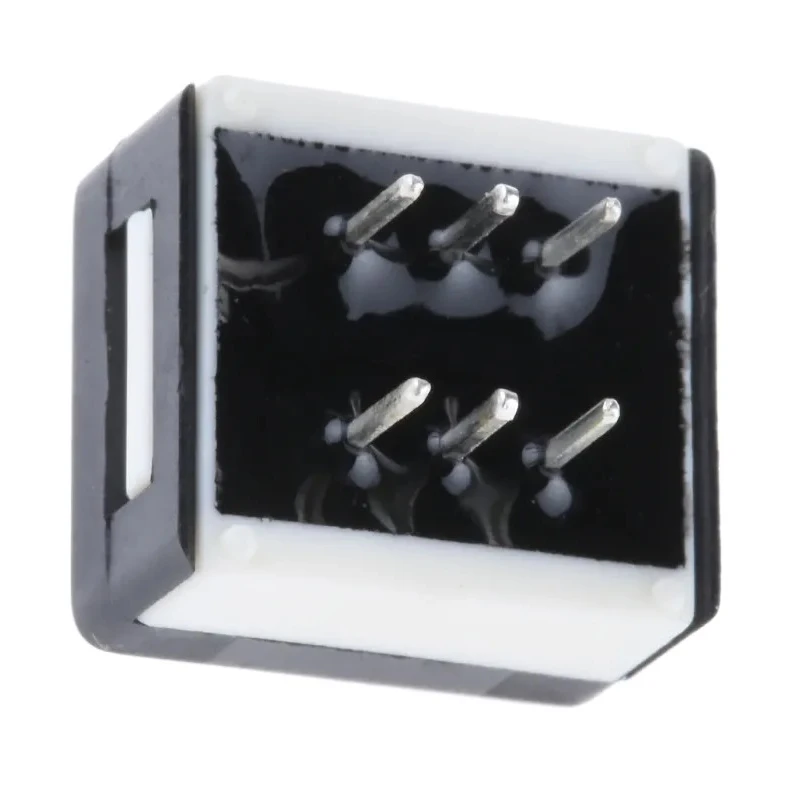

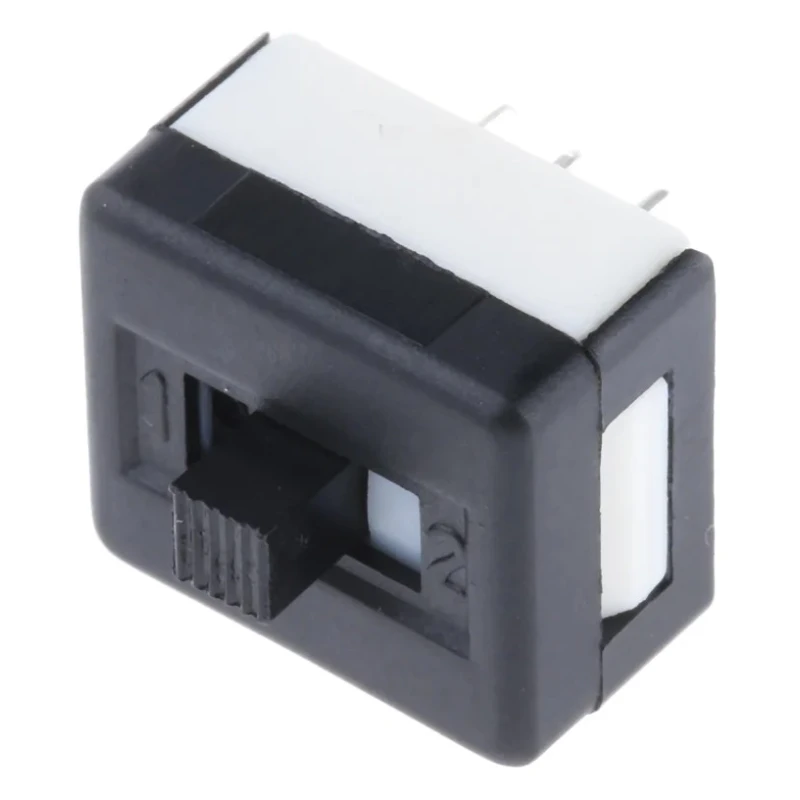

APEM PCB Slide Switch DPDT On-Off-On 1A Fibreglass Reinforced Polyamide 25149NAH

APEM 25149NAH is a high-quality PCB Slide Switch featuring a double pole double throw (DPDT) configuration with On-Off-On operation, designed for precise and reliable switching in electronic circuits. It carries a 1 ampere contact current rating at 30 volts DC, suitable for low-power control applications on printed circuit boards.

The switch is equipped with a robust actuator constructed from fibreglass reinforced polyamide, coupled with a PBT high temperature thermoplastic case, providing excellent mechanical strength and thermal stability. This ensures dependable operation even in demanding industrial, automation, and electrical environments.

Compact in size, this slide switch measures 12.5mm in width, 14.1mm in length, and 10.9mm in depth, making it ideal for space-constrained PCB designs. It features through hole terminals for secure mounting and is compliant with UL standards, supporting safety and quality assurance.

With a mechanical life expectancy of 20,000 operations and an electrical life of 10,000 cycles, the 25149NAH slide switch offers longevity and reliability. The sealed terminal design prevents flux ingress during soldering processes, improving durability and reducing maintenance needs.

Its operating temperature range from -40°C to 85°C allows it to function effectively across a wide variety of conditions typical in industrial and laboratory settings. Manufactured in France, this component adheres to stringent quality standards.

Double Pole Double Throw (DPDT) On-Off-On switch configuration for versatile circuit control. Rated for 1 ampere contact current at 30V DC ensuring safe electrical performance. Fibreglass reinforced polyamide actuator for enhanced mechanical and thermal strength.

Compact dimensions suitable for tight PCB layouts. Through hole terminal type for reliable solder connections. UL certified with robust mechanical and electrical life spans. Sealed terminals to prevent flux ingress and improve soldering reliability.

Wide temperature range from -40°C to 85°C for diverse operating environments. Manufactured in France with high quality and compliance standards.

This slide switch is widely used in electrical, automation, manufacturing, laboratory, and commercial PCB applications requiring reliable switching solutions. Explore more precision-engineered components in the Electronics & Electricals category at EnvMart for your project needs.
