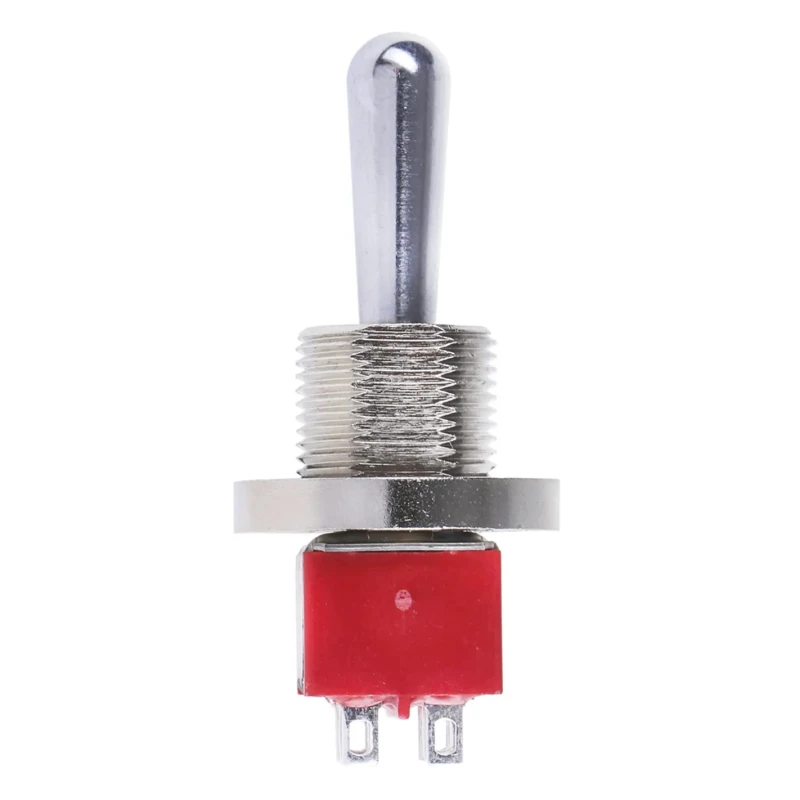

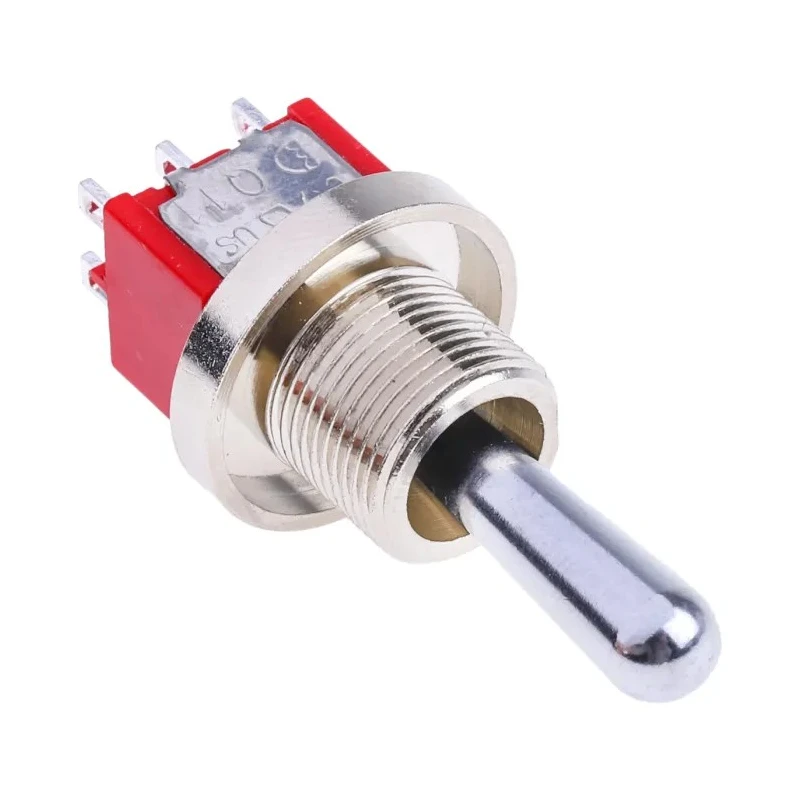

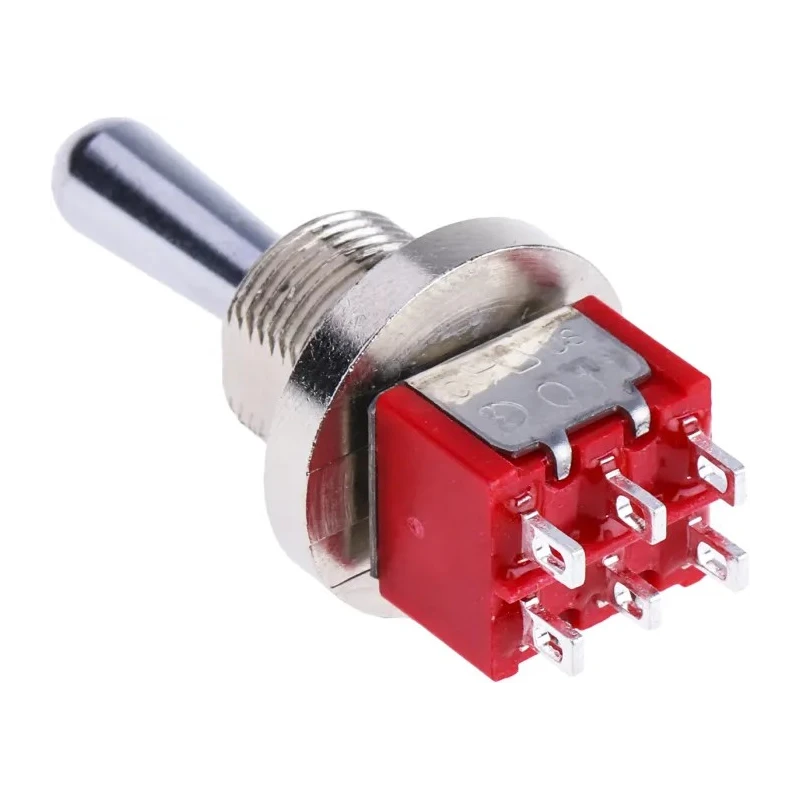

RS PRO Panel Mount Toggle Switch On-On DPDT, Solder Terminal, 26 V dc, 120 V ac 394-431

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Panel Mount Toggle Switch On-On DPDT, Solder Terminal, 26 V dc, 120 V ac 394-431

Name: RS PRO Panel Mount Toggle Switch On-On DPDT, Solder Terminal, 26 V dc, 120 V ac 394-431
Brand: RS PRO
SKU: 396298
Price: 587.64 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	394-431
Mount Type	Panel
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-On
Minimum Operating Temperature	-30°C
Panel Cutout Size	11.91 mm
Terminal type	Solder
Standards/Approvals	CE, RoHS, UL, CSA
Switch Operation	On-On
Actuator Length	17.56mm
Contact DC Voltage	26V dc
Switch Contact Current	5A
Mechanical Life	40000Cycles
Contact AC Voltage	120V ac
Actuator Material	Chrome Plated Brass
RS PRO Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal, 28V dcBrand	RS PRO
2P on-on large lever toggle switch,2ABrand	C & K

Key Features

This DPDT toggle switch features a latching On-On switch operation for reliable control of electrical circuits.
The switch supports a contact current up to 5 A, suitable for moderate power applications.
Chrome plated brass actuator material ensures durability and corrosion resistance.
The panel cutout size is 11.91 mm with an actuator length of 17.56 mm for easy panel mounting.
Silver contact material enhances conductivity and reduces contact resistance to 10 milliohms.
Operational temperature range from -30°C to +85°C makes it suitable for varied environments.
Mechanical life rated for 40,000 cycles providing long-term durability.
The switch terminals use solder type connections for secure and stable wiring.

Product Description

RS PRO 394-431 is a high-quality Panel Mount Toggle Switch featuring a Double Pole Double Throw (DPDT) configuration with On-On switch operation. It supports 26 V dc and 120 V ac voltage ratings, making it suitable for various industrial and electronic applications requiring switching of two separate circuits.

The device has a chrome plated brass actuator that is robust and corrosion-resistant. The solder terminal connection type allows for reliable and easy installation on panels with a cutout size of 11.91 mm. The actuator length is 17.56 mm, providing comfortable manual operation.

Designed for durability, the switch is rated to last for up to 40,000 mechanical cycles. The silver contacts reduce resistance to 10 milliohms, ensuring efficient electrical performance with a contact current rating of 5 A. This product is flame retardant, utilizing a Diallyl Phthalate protective casing to enhance safety in electrical usage.

Operating across a temperature range of -30°C to +85°C, this toggle switch is versatile and capable of handling moderately demanding environments typically encountered in electronics manufacturing, automation, test equipment, and control panels. It complies with CE, RoHS, UL, and CSA standards, assuring quality and regulatory adherence.

This toggle switch is commonly used in electronic circuitry where dual circuit on-off switching is required. It is ideal for panel mounting applications in industrial control systems, automation equipment, and laboratory devices.

Its solder terminal design allows for secure and lasting electrical connections. The robust actuator and high contact rating provide reliable performance under various load and environmental conditions. Manufactured in China with quality assurance and certification standards.

Explore more Toggle Switch varieties and related electrical components available at EnvMart for your industrial and electronic project requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This toggle switch supports a contact DC voltage of 26 V and an AC voltage of 120 V.

The contact current rating for this switch is 5 A, suitable for moderate power applications.

It uses solder type connections for secure and stable wiring.

The mechanical life of this toggle switch is rated for 40,000 cycles, indicating its durability over time.

The operating temperature range for this model is from -30°C to +85°C, making it suitable for varied environments.

The panel cutout size required for this toggle switch is 11.91 mm.

The actuator is made of chrome plated brass, and the contacts are made of silver, which enhances conductivity.

This model complies with CE, RoHS, UL, and CSA standards, ensuring quality and regulatory adherence.

The actuator length of this switch is 17.56 mm, providing comfortable manual operation.

The switch configuration is Double Pole Double Throw (DPDT) with an On-On operation.

This toggle switch is commonly used in electronic circuitry where dual circuit on-off switching is required, such as in industrial control systems and automation equipment.

The contact resistance is rated at 10 milliohms, which helps in ensuring efficient electrical performance.
