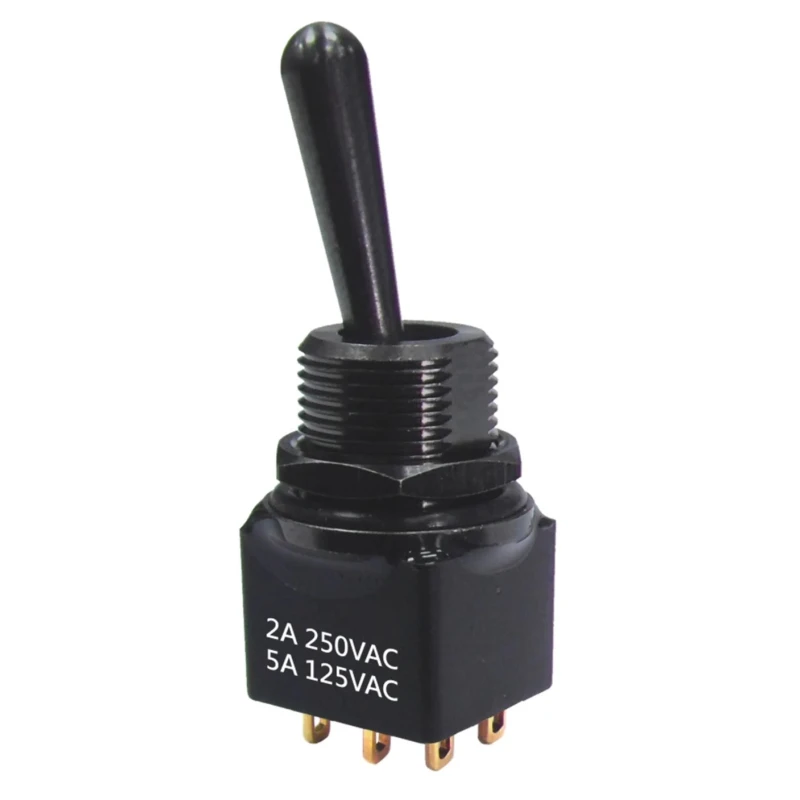

RS PRO PCB Mount Toggle Switch On-On-On DPDT Solder Terminal 28 V dc 250 V ac 820-0523

RS PRO 820-0523 is a robust PCB mount toggle switch with a double-pole double-throw (DPDT) On-On-On operation designed to provide reliable switching performance in demanding industrial and automation applications. Rated for 28 V dc and 250 V ac, this toggle switch supports a contact current of 5 amps, suitable for both low-level and power switching tasks.

The switch features a fully sealed double shell case and two O-ring frontal seals to maintain IP67 ingress protection against dust and water. The rear is equally sealed, allowing full protection from flowing water during operation and use in harsh environments.

The brass actuator is 18mm long, with overall compact dimensions of 40.2mm height, 16mm length, and 14.48mm width, ensuring an easy fit on standard PCBs while maintaining durability and ease of mechanical actuation.

Operating temperature spans from -30°C to 85°C, making it suited for various industrial settings including electrical control panels, automation equipment, and machinery operated in diverse ambient conditions.

Designed to meet MIL-STD-202F standards, the switch guarantees mechanical ruggedness and longevity with a mechanical life of 50,000 cycles, ensuring dependable performance over extended use.

This toggle switch with solder terminal type supports secure and stable electrical connections on PCB mount setups in commercial, manufacturing, laboratory, and HVAC control systems.

The toggle switch features a double-pole double-throw (DPDT) contact configuration for flexible circuit switching. On-On-On switch operation enables three distinct switch positions for complex control schemes. Rated current capability of 5 Amps supports power and signal applications.

IP67 rating ensures complete sealing against dust and water intrusion. Brass actuator ensures corrosion resistance and durable actuation. Compact physical size enabling mounting on circuit boards with ease. Wide operating temperature range for harsh environments.

Compliance with MIL-STD-202F validates reliability and durability. Mechanical life of 50,000 cycles supports long service life. Manufactured in Taiwan, Province Of China, reflecting quality standards.
