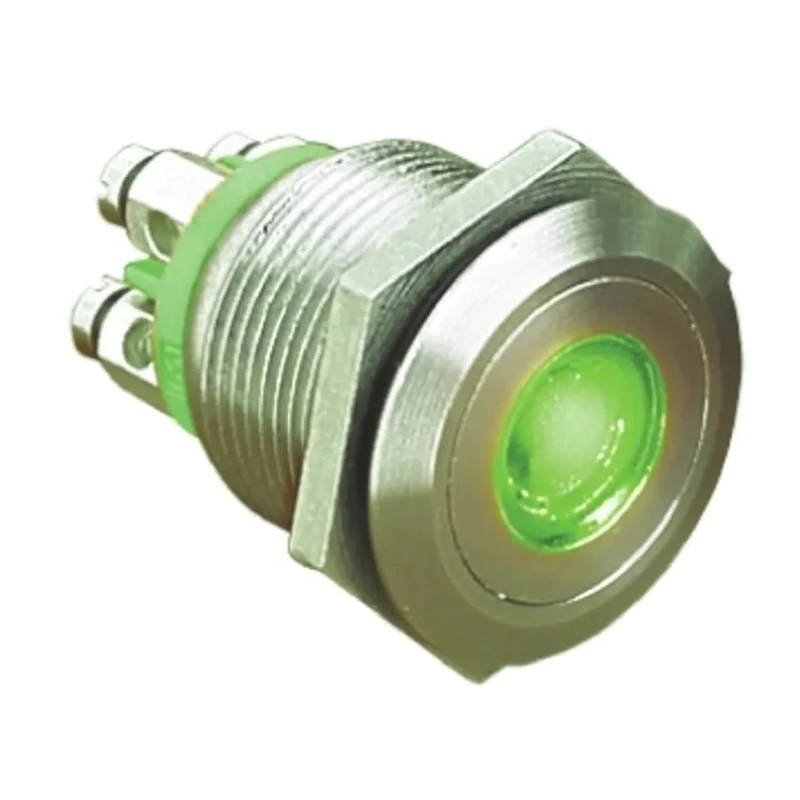

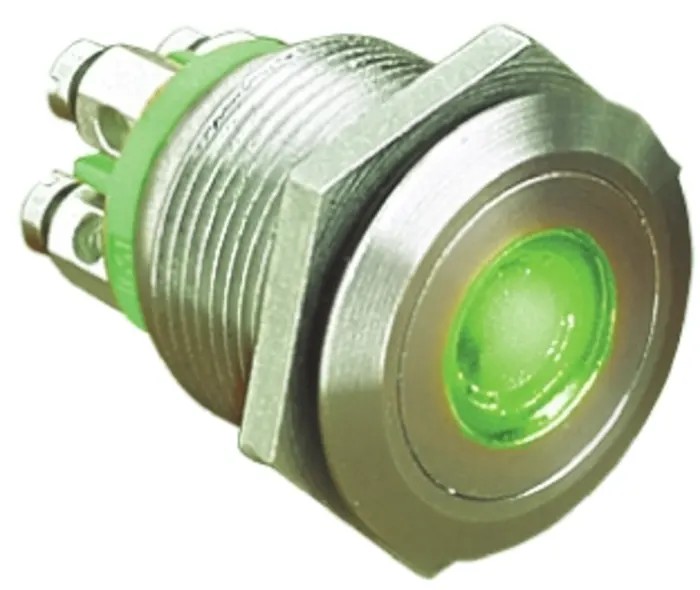

Bulgin Illuminated Push Button Switch Panel Mount SPST Green LED Momentary 19.2 mm Cutout IP66 24 V dc MPI001

Bulgin MPI001 Illuminated Push Button Switch is a high-quality, panel-mount switch designed for industrial and commercial electrical applications. Featuring a momentary switch operation with an SPST contact configuration, it ensures precise control over circuits. The actuator is styled as a silver button, illuminated by a green LED, which enhances visibility in low-light conditions. The switch is intended for 24 V dc circuits and includes an integral supply resistor for the 24 V illumination variant.

The device is manufactured from stainless steel, making it highly vandal resistant and suitable for environments requiring high durability. It mounts through a 19.2 mm panel cutout and uses screw type terminals for secure electrical connections. The switch is front panel sealed to IP66 standards, protecting it against ingress of dust and powerful water jets, making it ideal for harsh environments, including outdoor applications and automation equipment.

Operating temperature is rated from -30°C to 70°C, allowing use in diverse thermal conditions. The switch contact current rating of 50 mA and internal TVS (Transient Voltage Suppressor) protection ensures reliable switching performance and long service life under electrical stress.

Additional features include availability of different LED illumination colors (red, green, blue) and options for 6 V, 12 V, and 24 V resistor-fitted variants for various application voltages. The overall device length varies slightly depending on termination method, 31 mm for screw terminals and 32.7 mm for 2.8 mm tag terminals.

Bulgin MPI001 series switches are ideal for industrial automation, control panels, electrical equipment, machinery interfaces, and security systems. Their robust construction and protective features make them suitable for applications demanding reliability and vandal resistance.

This switch features a silver actuator and a button style for easy operation. It has a screw terminal type and an internal supply resistor suitable for 24 V dc illumination voltage. The switch is vandal resistant, manufactured from stainless steel for durability in harsh environments.

It supports a contact DC voltage of 24V dc and a switch contact current of 50 mA. The IP66 rating ensures protection against dust ingress and water jets, suitable for outdoor and industrial use. Operating temperature ranges from -30°C to 70°C, supporting a wide range of environmental conditions.

This product is RoHS compliant and includes internal TVS protection for enhanced reliability. The overall length of the switch depends on termination type, with 31 mm for screw terminals and 32.7 mm for 2.8 mm tags. Explore more industrial Push Button Switches and electrical components at EnvMart to find compatible solutions for your automation and control needs.
