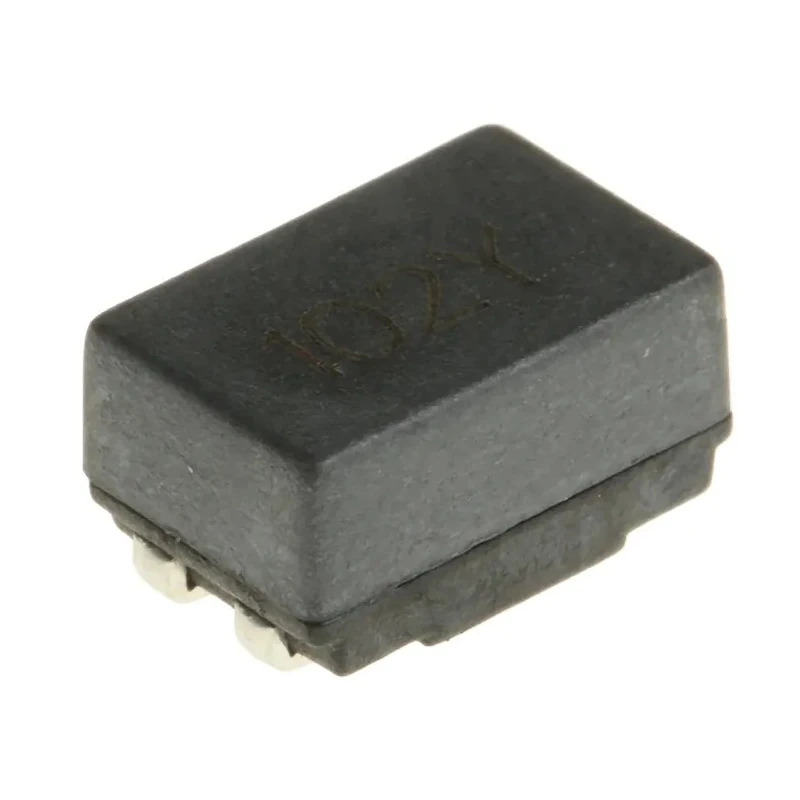

Bourns 0905 Shielded Surface Mount Common Mode Line Filter Ferrite Core 1mH ±50% 800mA Idc SRF0905

Free Delivery in India | Lowest Global Shipping Charges

Bourns 0905 Shielded Surface Mount Common Mode Line Filter Ferrite Core 1mH ±50% 800mA Idc SRF0905

Name: Bourns 0905 Shielded Surface Mount Common Mode Line Filter Ferrite Core 1mH ±50% 800mA Idc SRF0905
Brand: BOURNS
SKU: 395595
Price: 1.04 USD
Availability: InStock



Category Surface Mount Inductors Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	5mm
Length	9.2mm
Model	SRF0905
Depth	6mm
Packaging	Reel
Series	SRF0905
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	1mH
Standards/Approvals	RoHS
Package/Case	0905
Maximum DC Current	800mA
Pin Count	2
Maximum DC Resistance	310mΩ
Inductance Tolerance	±50 %
Termination Style	Solder
Maximum Self Resonant Frequency	15MHz
Inductor Construction	Wirewound

Key Features

Compact 0905 package size suitable for surface mount applications.
Ferrite core with wirewound inductor construction for efficient EMI suppression.
Operating temperature range from -40°C to 105°C for reliable industrial use.
Maximum DC resistance of 310mΩ ensures low power losses.
Shielded design reduces electromagnetic interference effectively.
Moulded construction for robust mechanical stability.
RoHS compliant and suitable for automotive and general electronics applications.
Supplied on reel packaging for efficient automated assembly processes.

Product Description

Bourns SRF0905 model is a shielded surface mount common mode line filter with a ferrite core, designed for EMI suppression in electronic circuits. It offers an inductance of 1mH with a tolerance of ±50% and can handle a maximum DC current of 800mA. The device is housed in a compact 0905 package (9.2mm length, 6mm depth, and 5mm height), making it suitable for densely packed PCBs in industrial, automotive, telecommunications, and consumer electronics applications.

The inductor construction is wirewound over a ferrite core and features a shielded design to minimize electromagnetic interference. Its maximum DC resistance of 310mΩ ensures efficient performance without significant power loss. The filter supports operating temperatures from -40°C up to 105°C, allowing dependable operation in harsh environments.

This Bourns surface mount inductor is moulded and RoHS compliant, adhering to environmental and safety standards. It comes supplied on a reel for automated surface mount technology (SMT) assembly efficiency, ideal for mass production lines.

Key uses include EMI filtering in power supplies, signal lines, and communication devices, making it essential for electronic manufacturing and repair. The robust physical and electrical specifications enable broad industrial, laboratory, commercial, and automotive applications.

Compact size and shielded construction support dense PCB layouts. High current capacity with low DC resistance for efficient filtering. Wide operating temperature range suits automotive and industrial environments. Compliance with RoHS ensures environmentally responsible manufacturing.

Reel packaging streamlines assembly and production efficiency.

This product is part of the Bourns SRF0905 Series, a trusted line of surface mount common mode chokes designed for high-performance EMI suppression solutions. Browse Bourns filters and inductors at EnvMart for reliable electronic component sourcing.
