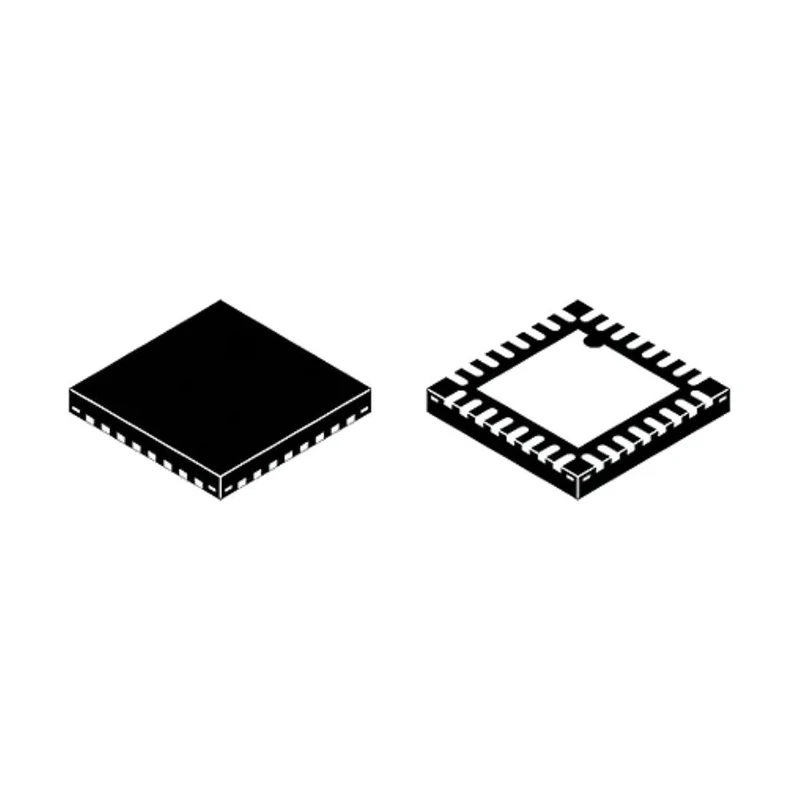

Texas Instruments IP30 24 Output Display Driver 30V 90mA PWM
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Model | IP30 |
| IP Rating | IP30 |
| Mount Type | Surface |
| Series | TLC5947 |
| Operating Modes | Constant Current |
| Number of outputs | 24 |
| Terminal type | Solder |
| Input Voltage | 3, 5.5V |
| Output Voltage | 30V |
| Power Dissipation | 3482mW |
| Standards/Approvals | RoHS, CE |
| Dimming Operation | PWM |
| Driver Current | 90mA |
| LED Voltage | 5.5V |
Key Features
- Supports 24 constant current outputs for flexible LED control.
- Operates with input voltage range of 3 to 5.5V.
- Surface mount device with solder terminal type for PCB integration.
- Power dissipation rated at 3482mW ensuring efficient thermal management.
- Suitable for LED display, signage, and backlighting applications.
- Complies with RoHS and CE standards for environmental and safety compliance.
- IP30-rated for protection against solid objects larger than 2.5mm.
Product Description
Texas Instruments TLC5947RHBT is a 24 output display driver IC designed for precise constant current LED control with output voltage up to 30V and driver current of 90mA. It operates with an input voltage range of 3 to 5.5V and supports PWM dimming operation making it ideal for signage, display, and backlighting LED applications that require high reliability and efficient power dissipation of 3482mW.
This surface-mount package device comes with solder-type terminals ensuring robust PCB assembly and mechanical stability. The product holds certifications including RoHS and CE, confirming compliance with international safety and environmental standards.
The IP30 rating protects internal components from dust particles larger than 2.5mm, suitable for most indoor industrial and manufacturing environments. This LED driver is part of Texas Instruments TLC5947 series, celebrated for versatility and efficiency in LED lighting component solutions.
The device finds applications in industrial automation, commercial electronic LED displays, laboratory instrumentation requiring controlled LED illumination, and HVAC control panels with integrated LED indicators.
Supports 24 constant current outputs for flexible LED control. Operates with input voltage range of 3 to 5.5V. Surface mount device with solder terminal type for PCB integration. Power dissipation rated at 3482mW ensuring efficient thermal management.
Suitable for LED display, signage, and backlighting applications. Complies with RoHS and CE standards for environmental and safety compliance. IP30-rated for protection against solid objects larger than 2.5mm.
Experience the quality and innovation of Texas Instruments products through EnvMart’s comprehensive range of electronic components, including specialized LED drivers like the TLC5947RHBT. Enhance your industrial and commercial LED solutions with reliable and efficient display driver ICs.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is between 3 to 5.5V.
It supports 24 constant current outputs for flexible LED control.
The maximum output voltage of this driver is 30V.
The power dissipation rating is 3482mW, ensuring efficient thermal management.
This unit is a surface mount device with solder terminal type for PCB integration.
It complies with RoHS and CE standards for environmental and safety compliance.
The driver current is rated at 90mA.
The product has an IP30 rating, which protects against solid objects larger than 2.5mm.
It is suitable for LED display, signage, and backlighting applications.
This model supports PWM dimming operation.
The country of origin for this product is India.
