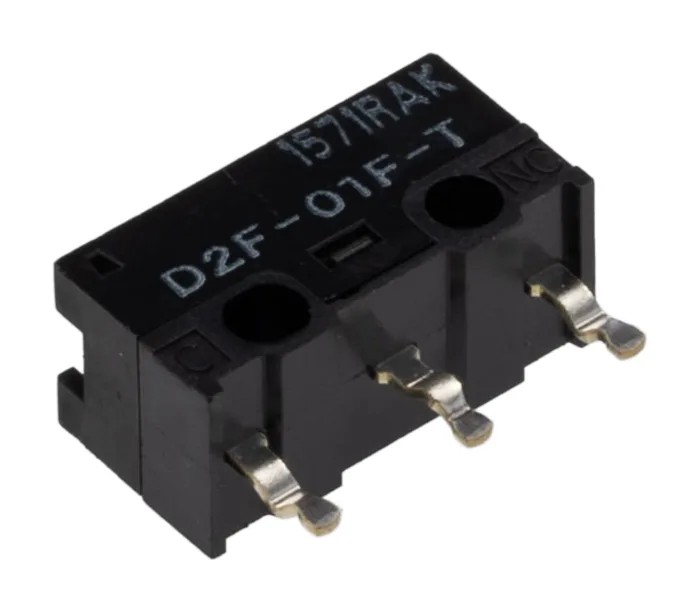

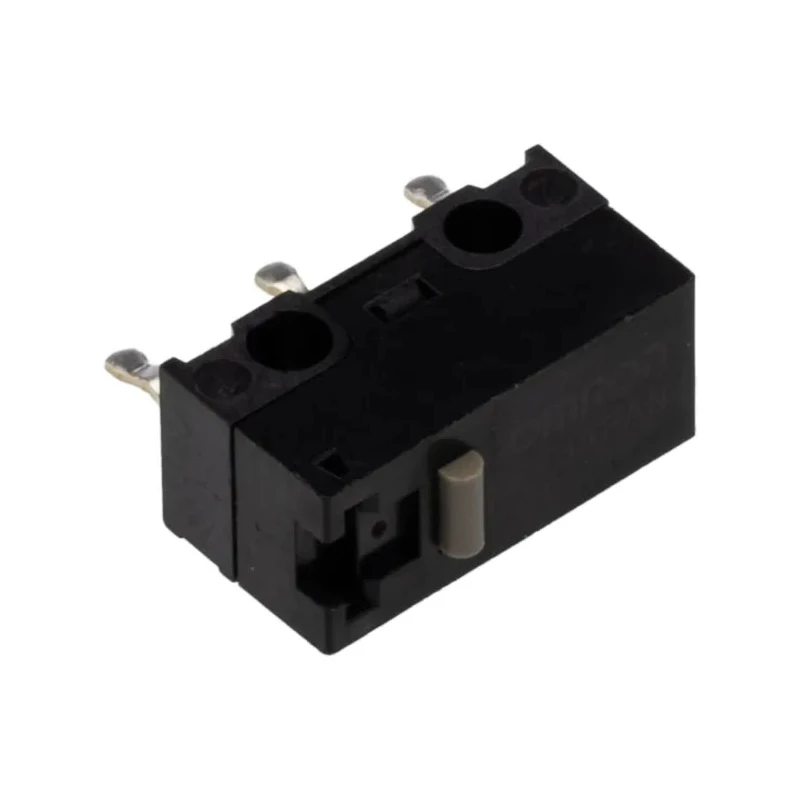

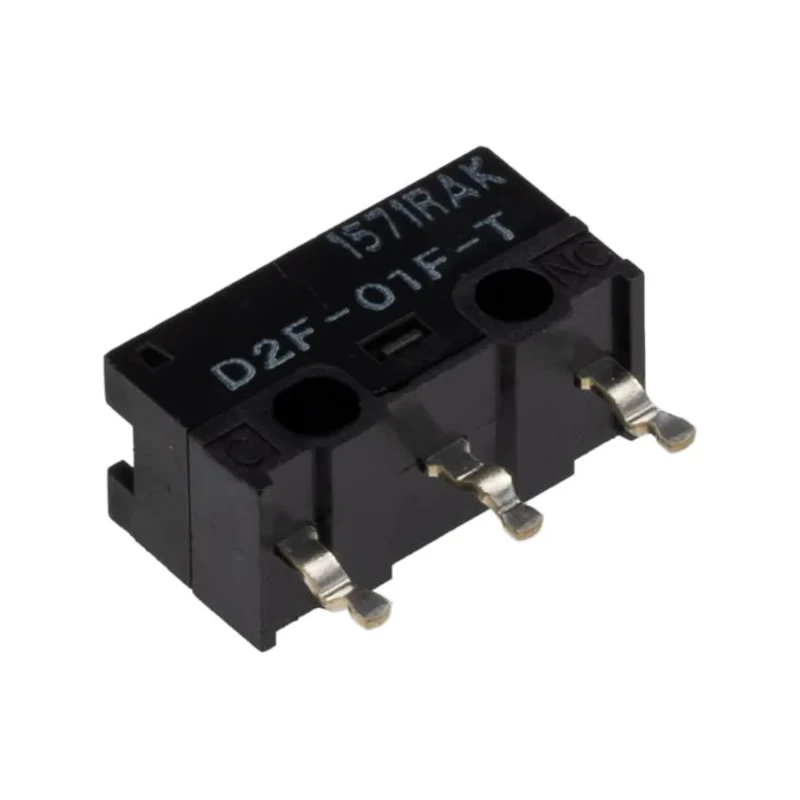

Omron Ultra Subminiature Pin Plunger Micro Switch, PCB Terminal, SPDT, 100mA, 30 V DC, IP40, Model D2F-01F-T
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 12.8mm |
| Model | D2F-01F-T |
| IP Rating | IP40 |
| Approvals | UL & CSA |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Contact Rating | 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.74N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Ultra Subminiature |
Key Features
- This micro switch features a pin plunger actuator for sensitive and reliable operation.
- The switch provides a single pole double throw (SPDT) contact configuration.
- It has an IP40 rating suitable for limited dust protection.
- Operating force is a low 0.74N, ensuring minimal actuation effort.
- The switch supports a mechanical life of 1,000,000 operations, guaranteeing durability.
- It can operate in temperatures from -25°C to 65°C for versatile environmental use.
- The length of the switch is compact at 12.8mm for space-saving PCB installation.
- Contact rating includes 3A at 125V AC with silver contacts and 0.1A at 30V DC with gold contacts for diverse electrical applications.
Product Description
Omron D2F-01F-T is an ultra subminiature micro switch featuring a pin plunger actuator and PCB terminal suitable for precise, miniature switching needs in electrical and automation circuits.
This micro switch supports a single pole double throw (SPDT) contact configuration, facilitating versatile switching operations with a contact current rating of 100mA at 30 V DC. The device has a compact length of 12.8mm, making it ideal for tight PCB layouts in consumer electronics, audio devices, and communication equipment.
With an operating force of 0.74N and a mechanical life rating of one million operations, this switch delivers high reliability and durability in demanding applications. The IP40 rating offers protection against solid objects larger than 1mm, suitable for many indoor environments.
The switch is RoHS compliant and is certified with UL and CSA approvals, ensuring it meets stringent safety and environmental standards. This product is manufactured in Japan, reflecting a high standard of quality and craftsmanship.
This micro switch features a pin plunger actuator for sensitive and reliable operation. Single pole double throw (SPDT) contact configuration. Low operating force of 0.74N ensures easy actuation. Mechanical life rated for 1,000,000 operations.
Operating temperature range from -25°C to 65°C. Compact size with 12.8mm length suitable for PCB usage. Contact ratings: 3A @125V AC with silver contacts, 0.1A @ 30V DC with gold contacts. RoHS compliant and UL & CSA approved.
Manufactured in Japan.
This micro switch is extensively used in industrial automation, home appliances, audio equipment, communication systems, and other applications requiring precise and reliable switching.
Explore more Omron Micro Switches and related electrical components on EnvMart for diverse industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch features a single pole double throw (SPDT) contact configuration, allowing for versatile switching operations.
The maximum operating temperature for this model is 65°C, making it suitable for various environmental conditions.
It has a mechanical life rating of 1,000,000 operations, ensuring high reliability and durability in applications.
The operating force for this micro switch is 0.74N, which ensures easy actuation.
The length of this micro switch is compact at 12.8mm, making it ideal for tight PCB layouts.
The contact ratings include 3A at 125V AC with silver contacts and 0.1A at 30V DC with gold contacts, suitable for diverse electrical applications.
This model has an IP40 rating, providing limited protection against dust and solid objects larger than 1mm.
Yes, the switch is RoHS compliant, ensuring it meets environmental standards.
It features a pin plunger actuator, which allows for sensitive and reliable operation.
The minimum operating temperature for this micro switch is -25°C, making it versatile for various applications.
This model is certified with UL and CSA approvals, ensuring it meets stringent safety standards.
It features a PCB terminal, suitable for precise installation on printed circuit boards.
