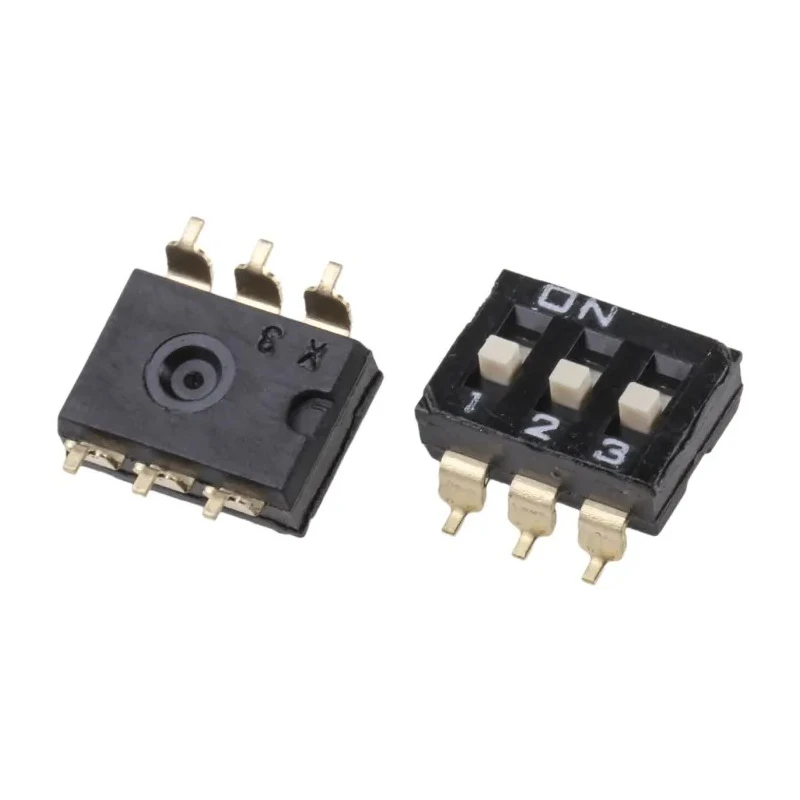

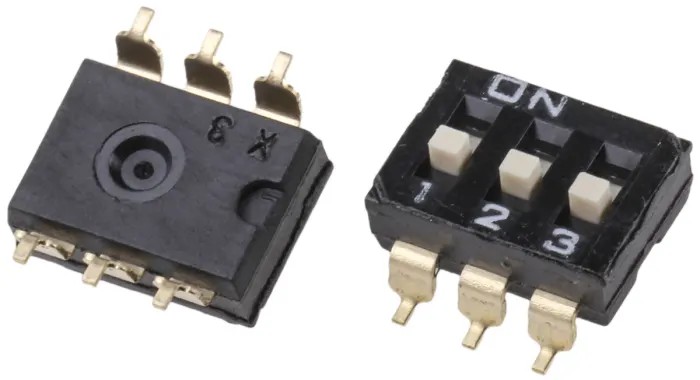

Omron Rotary Coded DIP Switch Surface Mount Slide Actuator, Contact Resistance 200mΩ max, Insulation Resistance A6S-3104-H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Model | A6S-3104-H |
| Mount Type | Surface Mount |
| Actuator Type | Slide |
| Insulation resistance | 100MΩ min at 250Vdc |
| Terminal type | Surface Mount |
| Contact Resistance | 200mΩ max |
| Mechanical Life | 1000 operations |
Key Features
- Surface mount design compatible with IC insertion machines.
- Slide actuator type allows precise switching control.
- Gold plated contacts ensure reliable connectivity.
- Contact resistance is 200mΩ maximum for efficient signal transmission.
- Insulation resistance at least 100MΩ at 250Vdc for electrical safety.
- Mechanical life expectancy of 1000 operations ensures durability.
- RoHS compliant and manufactured using quality materials in China.
Product Description
The Omron A6S-3104-H is a rotary coded DIP switch offering a surface mount package with a slide actuator type, optimized for automated assembly using IC insertion machines. This switch complies with DIL standards providing reliable mechanical and electrical performance in compact surface-mounted assemblies.
It features gold-plated contacts that maintain excellent conductivity and reduce the risk of corrosion. The maximum contact resistance is rated at 200mΩ, ensuring low-loss signal integrity. The insulation resistance is rated at a minimum of 100MΩ at 250Vdc, providing robust protection against electrical leakage.
The device boasts a mechanical life of 1000 switching operations, suitable for various industrial and electronic applications needing durable switching components. The slide actuator offers smooth and precise switching control suitable for complex electronic control circuits.
The product is RoHS compliant, manufactured in China under strict quality control. It is ideal for use in electronics manufacturing, industrial automation, instrumentation, and other applications requiring small-scale rotary code selection.
Surface mounting allows for streamlined automatic production processes. Flat actuators are available in sealed tape versions to facilitate integration. Gold plating enhances corrosion resistance and conductivity. High electrical insulation makes it ideal for sensitive electronic applications.
Suitable for industrial equipment and electronic circuit control uses. Compact, durable design ensures long-term reliability in harsh environments. Designed to meet DIL standards for compatibility with diverse equipment.
Explore the Omron Rotary Coded DIP Switches category for more options suitable for precision electronic controls, industrial automation, and assembly line applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact resistance is rated at 200mΩ, ensuring low-loss signal integrity.
The insulation resistance is at least 100MΩ at 250Vdc, providing robust protection against electrical leakage.
It has a mechanical life expectancy of 1000 operations, making it suitable for various applications requiring durable switching components.
This model features a slide actuator type, allowing for smooth and precise switching control.
Yes, the A6S-3104-H is RoHS compliant, ensuring it meets environmental safety standards.
It supports a surface mount design, optimized for automated assembly using IC insertion machines.
This product is manufactured in China under strict quality control standards.
It is suitable for electronics manufacturing, industrial automation, instrumentation, and other applications requiring small-scale rotary code selection.
The specific dimensions are not provided in the product details; however, it is designed for compact surface-mounted assemblies.
The switch features gold-plated contacts to enhance conductivity and reduce the risk of corrosion, although specific materials are not detailed.
Yes, the terminal type is surface mount, which is compatible with various electronic circuit designs.
It complies with DIL standards, ensuring compatibility with diverse equipment in electronic applications.
