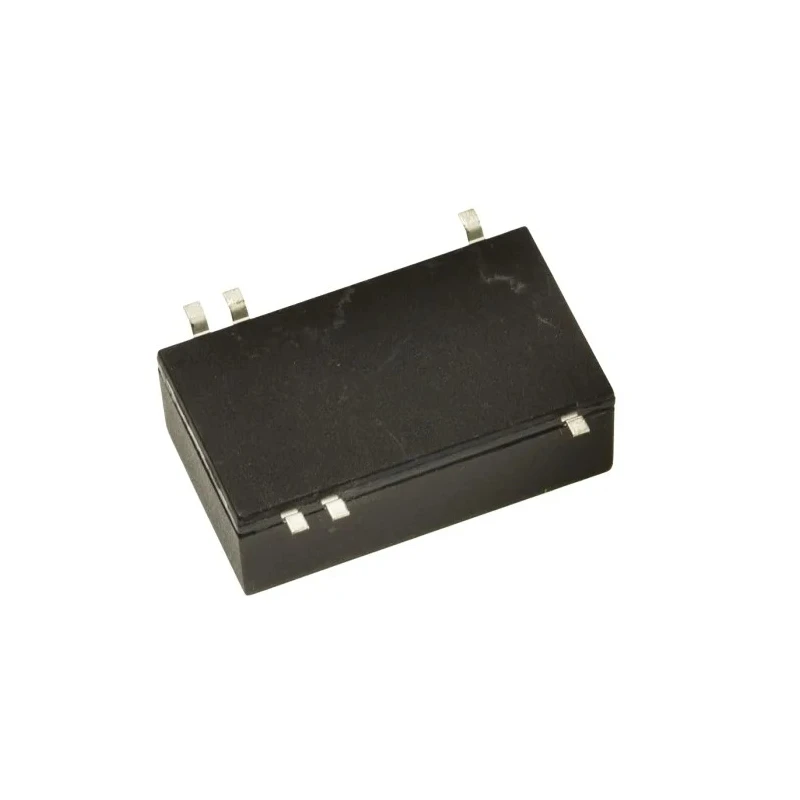

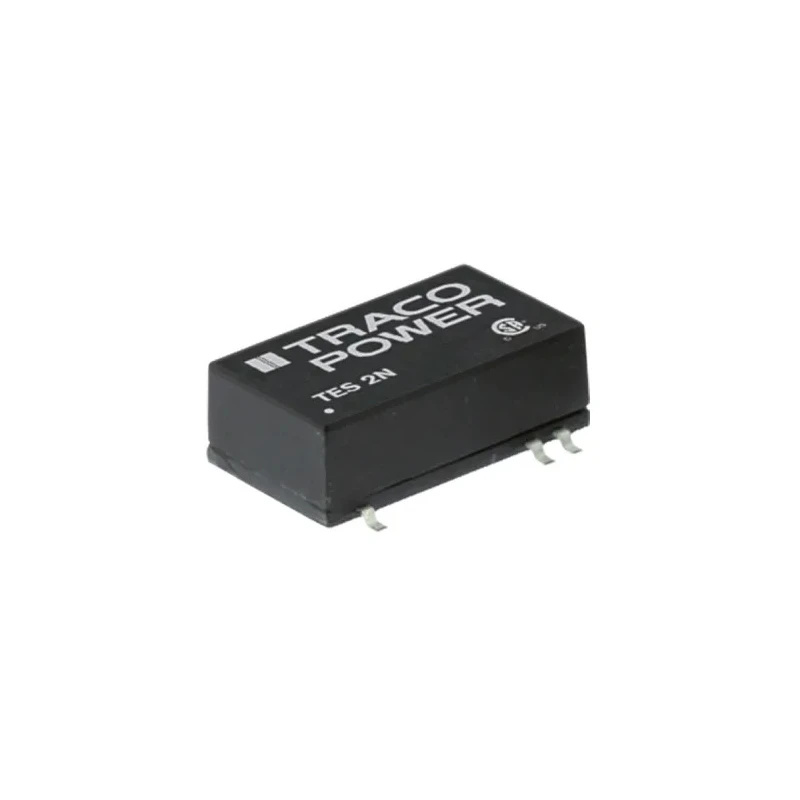

TRACOPOWER Surface Mount DC/DC Converter 15V DC Output 65mA 9V DC Input 4.5V Input 2W Max Power 71% Efficiency TES 2N-0523

TRACOPOWER TES 2N-0523 is a high-quality surface mount DC/DC converter designed to provide stable 15V DC output at 65mA current with an input voltage range spanning from 4.5V to 9V DC. It delivers a maximum power output of 2W with an efficiency rating of 71%. This converter is suitable for powering sensitive electronic components that require isolated and regulated power supplies.

The unit features a compact design with physical dimensions of 24mm in length and 8mm in depth, facilitating integration into space-constrained PCB layouts. Its isolation voltage of 1.5kV DC offers protection against voltage spikes and noise, ensuring system stability.

With a robust operating temperature range from -40°C to 85°C, this converter is engineered for durable performance in industrial, laboratory, and power management applications. The device’s mean time between failures (MTBF) is one million hours, underscoring its reliability under continuous operation.

This product incorporates indefinite short circuit protection and an input filter compliant with EN55022 Class A standards, making it suitable for modern electromagnetic compatibility requirements. The wide 2:1 input voltage ratio adds versatility, allowing use with varying power sources.

Manufactured in Taiwan, the TES 2N-0523 DC/DC converter is ideal for use in electronics, power supply units, industrial automation controls, and other applications requiring isolated DC power conversion. It is part of the TES 2N series known for its low profile and surface mount packaging.

This converter features a compact surface mount package with dimensions 24mm by 8mm. It provides dual outputs with an isolation voltage of 1.5kV DC, ensuring secure operation in electronic circuits. The device operates reliably in temperatures from -40°C to 85°C, suitable for harsh industrial environments.

Designed for use in power supply and distribution, industrial automation, and electronic component applications. Includes built-in indefinite short circuit protection enhancing device safety and reliability. The input voltage ratio is a wide 2:1 range, allowing flexible power source use.

Its mean time between failures (MTBF) is rated at 1,000,000 hours, indicating high reliability. Manufactured in Taiwan, reflecting international quality standards. Explore more DC/DC Converters and electronic power modules in EnvMart’s extensive industrial electronics category.
