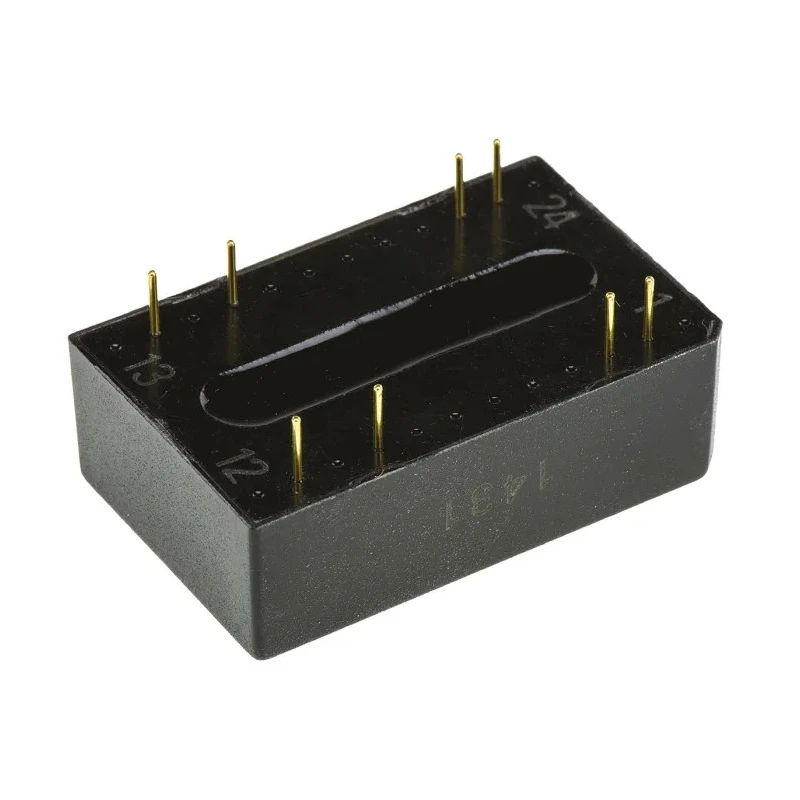

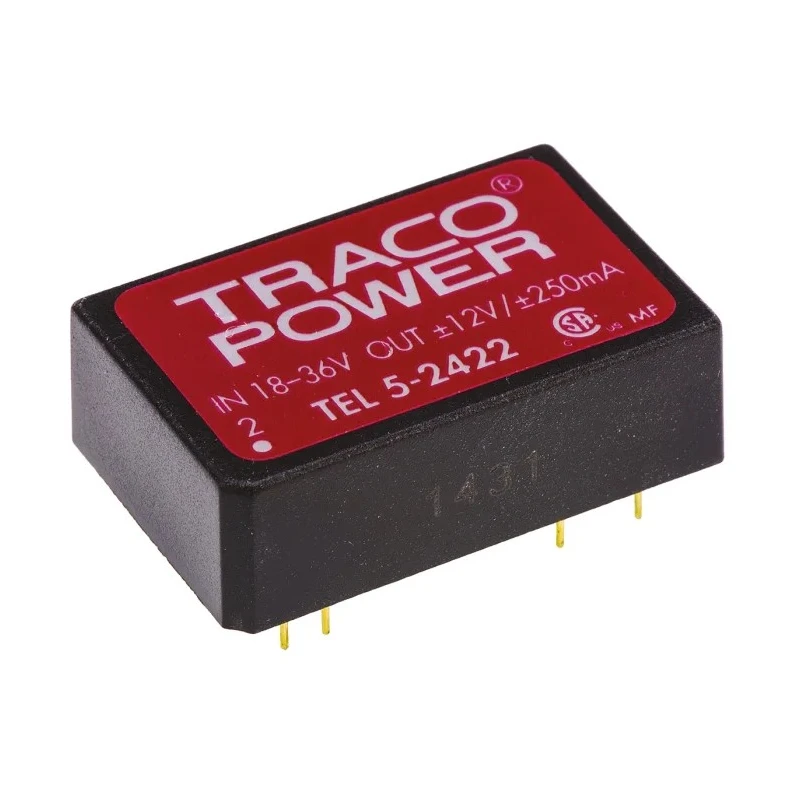

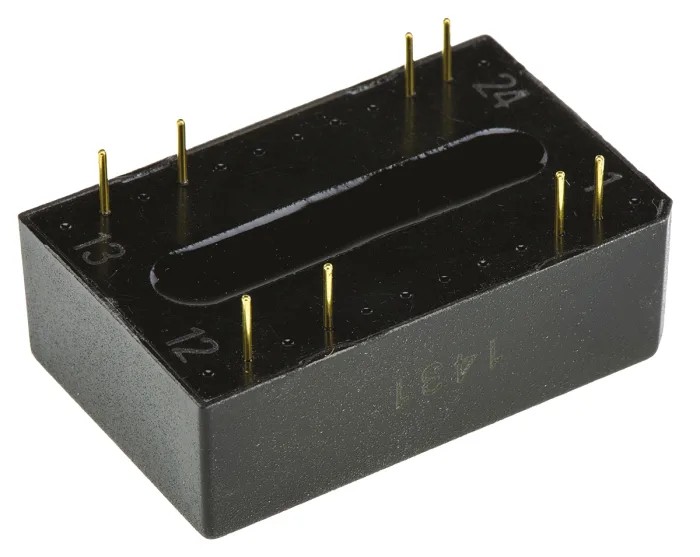

TRACOPOWER TEL 5 PCB Mount Dual Output DC/DC Converter 12V dc 250mA 36V dc Input 18V Input 5W 85°C Max Temperature TEL 5-2422

TRACOPOWER TEL 5-2422 is a high-quality PCB-mounted dual output DC/DC converter designed for industrial electronic power applications. It provides regulated isolated outputs of 12V dc at 250mA and -12V dc from an input voltage range of 18V to 36V dc, with a maximum output power of 5 watts.

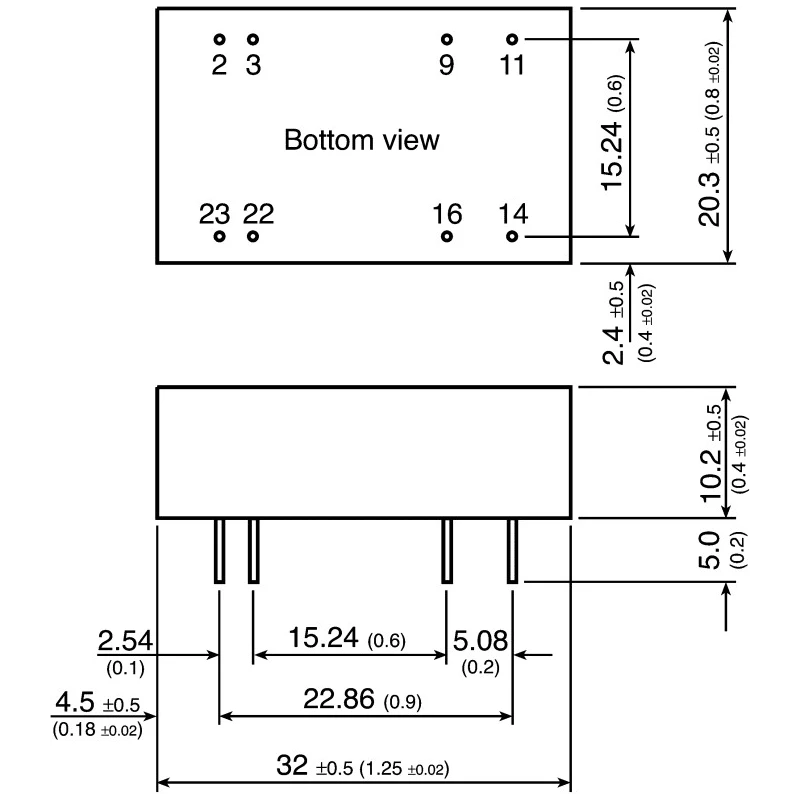

This device features a wide 2:1 input voltage range, making it compatible with varied supply voltages. Its input-to-output isolation voltage of 1.5kV dc ensures electrical safety in demanding environments. The converter is built with a compact 24-pin DIP surface mount package, supporting simple integration into existing PCB designs.

Operating efficiently at 86%, the TEL 5-2422 maintains stable performance across a broad temperature range from -40°C to 85°C, with temperature derating above 70°C. It offers continuous short circuit protection to safeguard connected circuits and components.

With an impressive mean time between failure (MTBF) of one million hours, this converter ensures long-lasting reliability and dependable power conversion. Its industry-standard pin-out simplifies replacement and design adaptation in electronic assemblies.

The TEL 5 series converters are ideal for industrial automation, instrumentation, telecommunications, and embedded systems requiring isolated dual outputs at low power levels. Dual regulated isolated outputs with positive and negative 12V voltages.

Wide input voltage range suitable for automotive and industrial supplies. High isolation voltage guarantees safe operation in noise-sensitive circuits. Compact surface mount package reduces PCB footprint. High efficiency minimizes heat dissipation and power losses.

Extended operating temperature range meets demanding environmental conditions. Continuous short circuit protection enhances device robustness. Long MTBF ensures system reliability. Industry standard pin configuration facilitates upgrades and repairs.

Manufactured in Taiwan, integrating stringent quality standards.
