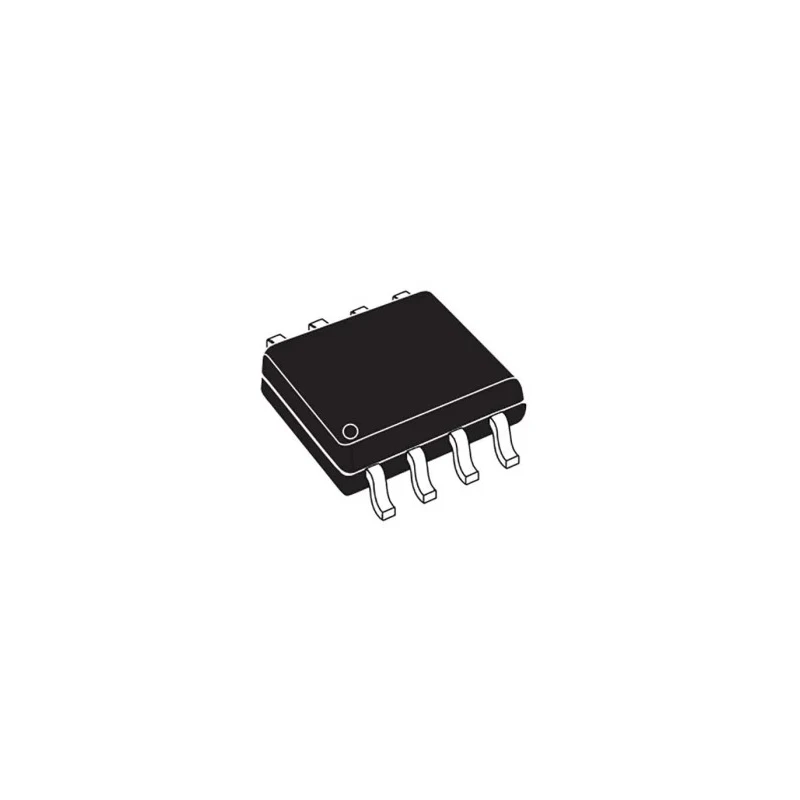

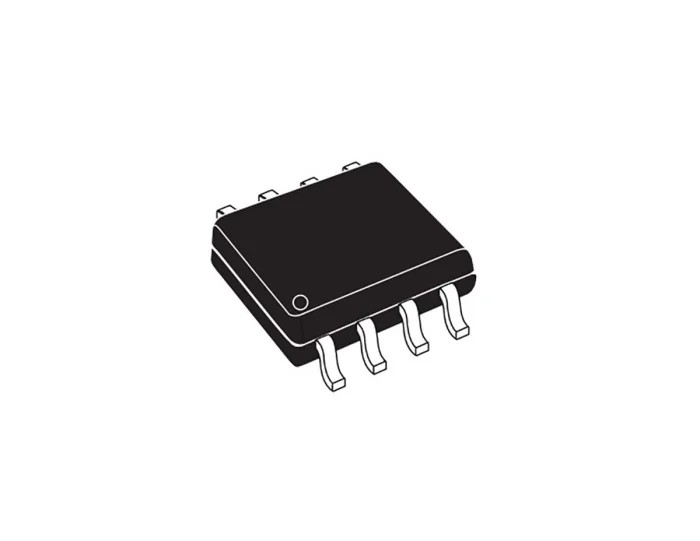

STMicroelectronics Operational Amplifier 22 MHz, 8-Pin 36V SO TSB7192AIDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.75mm |
| Length | 5mm |
| Model | TSB7192AIDT |
| Width | 4mm |
| Mount Type | Surface |
| Series | TSB7192 |
| Output Current | 20mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 36V |
| GBP - Gain Bandwidth Product | 22MHz |
| Input Bias Current | 900 nA |
| Slew Rate | 3V/μs |
| Input Offset Current | 10 nA |
Key Features
- Features rail-to-rail input and output operation with a supply range from 2.7 V up to 36 V.
- Contains two amplifier channels in a compact SO package with 8 pins.
- Offers low input offset voltage and low noise for precision analogue signal conditioning.
- Built-in EMI filter enhances noise immunity in automotive and industrial environments.
- Wide operating temperature from -40°C to 125°C suitable for automotive applications.
- Slew rate of 3 V/μs enables fast response in dynamic circuits.
- Includes automotive-grade AEC-Q100 qualification ensuring reliability for vehicle systems.
- Ideal for actuator driving, hall effect sensors, filters, power supply and motor control uses.
Product Description
STMicroelectronics TSB7192AIDT is a high precision operational amplifier designed for demanding industrial, automotive, and laboratory applications. It features a 22 MHz gain bandwidth product with a dual channel configuration housed in an 8-pin SO (Small Outline) surface mount package.
This amplifier supports a wide supply voltage range from as low as 2.7 V to a maximum of 36 V, with rail-to-rail input and output capability ensuring maximum dynamic range and signal fidelity. The device incorporates an integrated EMI filter to reduce susceptibility to electromagnetic interference, crucial for environments with high electrical noise such as automotive and industrial controls.
The TSB7192AIDT offers low input offset voltage, low input bias and offset currents, making it suitable for precision analogue signal measurement and conditioning tasks. Its fast slew rate of 3 V/μs allows it to handle rapidly changing signals effectively. Operating temperature range from -40°C to 125°C meets harsh environmental requirements, reinforced by compliance with the automotive AEC-Q100 standard, making it ideal for embedded automotive sensor and actuator systems.
Typical applications include actuator driving, hall effect sensors, power supply regulation, resistive transducers, motor control circuits, and various filtering applications. The compact physical dimensions (5 mm length, 4 mm width, 1.75 mm height) make it ideal for space-constrained printed circuit board layouts.
Features rail-to-rail input and output operation with a supply range from 2.7 V up to 36 V. Contains two amplifier channels in a compact SO package with 8 pins. Offers low input offset voltage and low noise for precision analogue signal conditioning.
Built-in EMI filter enhances noise immunity in automotive and industrial environments. Wide operating temperature from -40°C to 125°C suitable for automotive applications. Slew rate of 3 V/μs enables fast response in dynamic circuits.
Includes automotive-grade AEC-Q100 qualification ensuring reliability for vehicle systems. Ideal for actuator driving, hall effect sensors, filters, power supply and motor control uses. Package dimensions approximately 5 mm by 4 mm by 1.75 mm.
Explore the STMicroelectronics Operational Amplifier range on EnvMart for high reliability and precision signal amplification components suitable for automotive, industrial, and laboratory use cases.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TSB7192AIDT operational amplifier is 22 MHz.
This operational amplifier supports a supply voltage range from 2.7 V to 36 V.
The operational amplifier operates within a temperature range of -40°C to 125°C.
The TSB7192AIDT contains two amplifier channels.
The slew rate of this model is 3 V/μs.
The package dimensions of the TSB7192AIDT are approximately 5 mm in length, 4 mm in width, and 1.75 mm in height.
This model uses surface mount technology.
The operational amplifier features a low input offset voltage, although the exact value is not specified.
The TSB7192AIDT is compliant with the automotive standard AEC-Q100.
This operational amplifier can provide an output current of 20 mA.
The operational amplifier meets RoHS standards.
Typical applications include actuator driving, hall effect sensors, power supply regulation, and motor control circuits.
