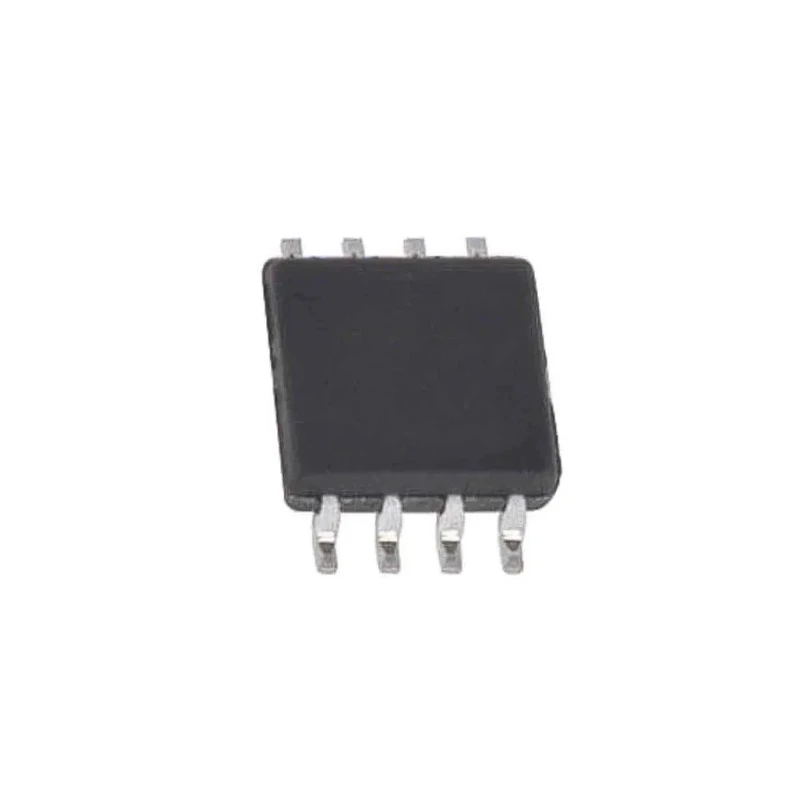

STMicroelectronics Dual Channel Operational Amplifier 4 MHz Gain Bandwidth, 8-Pin TSSOP Package TS922IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 4.5mm |
| Model | TS922IPT |
| Width | 3.1mm |
| Mount Type | Surface |
| Low Noise | 9 nV/√Hz |
| Series | TS922 |
| Output Current | 80mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 4MHz |
| Input Bias Current | 100 nA |
| Vos - Input Offset Voltage | 3 mV |
| Slew Rate | 1.3V/μs |
| High output current | 80 mA (able to drive 32 Ω loads) |
| Input Offset Current | 30 nA |
| ESD internal protection | 2 kV |
Key Features
- Rail-to-rail input and output operation ensuring full voltage range utilization.
- Low noise level of 9 nV/√Hz for precision audio and signal processing.
- High output current capability up to 80 mA, suitable for driving low impedance loads.
- Wide operating voltage range from 2.7 V to 12 V for flexible power supply designs.
- Temperature range from -40°C to 125°C for reliable industrial performance.
- Low input bias current of 100 nA and low offset voltage for accurate signal amplification.
- Compact dimensions with TSSOP package (4.5 mm length, 3.1 mm width, 1.05 mm height).
- Compliant with RoHS standards and automotive grade AEC-Q100 certification.
Product Description
STMicroelectronics TS922IPT dual BiCMOS operational amplifier is designed for low voltage operations at 3 V and 5 V, offering rail-to-rail input and output capability with high current drive ability of 80 mA, allowing it to directly drive 32 Ω loads efficiently.
Featuring a gain bandwidth product of 4 MHz and a slew rate of 1.3 V/μs, this device is optimized for audio and precision amplification applications where low distortion and noise are critical. The input bias current is minimal at 100 nA and the input offset voltage is 3 mV, providing accurate signal conditioning.
The compact 8-pin TSSOP surface mount package measures 4.5 mm by 3.1 mm with a height of 1.05 mm, making it suitable for space-constrained designs. Operating temperature spans from -40°C to 125°C, ensuring stability in harsh industrial and automotive environments, supported by the AEC-Q100 automotive qualification.
This operational amplifier incorporates internal ESD protection rated at 2 kV and latch-up immunity to enhance device reliability. It complies with RoHS directives, emphasizing environmentally responsible manufacturing processes.
Rail-to-rail input and output operation for full signal range. Low noise of 9 nV/√Hz optimized for audio quality. High output current capacity up to 80 mA for low load driving. Low operating voltage range from 2.7 V to 12 V suitable for battery-powered devices.
Industrial and automotive temperature rating (-40°C to 125°C). Compact 8-pin TSSOP surface mount package for easy PCB integration. Low input bias and offset voltages for precision amplification. Compliance with RoHS and automotive AEC-Q100 standards.
Robust ESD protection and latch-up immunity built in. Ideal for audio, industrial control, and instrumentation applications.
STMicroelectronics products deliver quality and reliability for electronic design and manufacturing. Explore more Operational Amplifiers and semiconductor devices on EnvMart for advanced electronics project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 4 MHz, making it suitable for audio and precision amplification applications.
It can drive loads with a maximum output current of 80 mA, allowing it to efficiently drive low impedance loads such as 32 Ω.
The operational amplifier operates within a voltage range of 2.7 V to 12 V, providing flexibility for various power supply designs.
This model has compact dimensions of 4.5 mm in length, 3.1 mm in width, and a height of 1.05 mm, suitable for space-constrained applications.
The operational amplifier is rated for operation in temperatures ranging from -40°C to 125°C, ensuring stability in harsh environments.
The input bias current is low at 100 nA, which contributes to its accuracy in signal amplification.
It is packaged in an 8-pin TSSOP (Thin Shrink Small Outline Package), which is suitable for surface mounting.
The slew rate is 1.3 V/μs, allowing for rapid changes in output voltage, which is beneficial in audio applications.
Yes, it complies with RoHS standards and is qualified under the AEC-Q100 automotive standard, ensuring its suitability for automotive applications.
The input offset voltage is 3 mV, which helps maintain accuracy in signal processing.
It incorporates internal ESD protection rated at 2 kV, enhancing the reliability of the device in various applications.
The TS922IPT features two channels, making it a dual-channel operational amplifier suitable for various applications.
