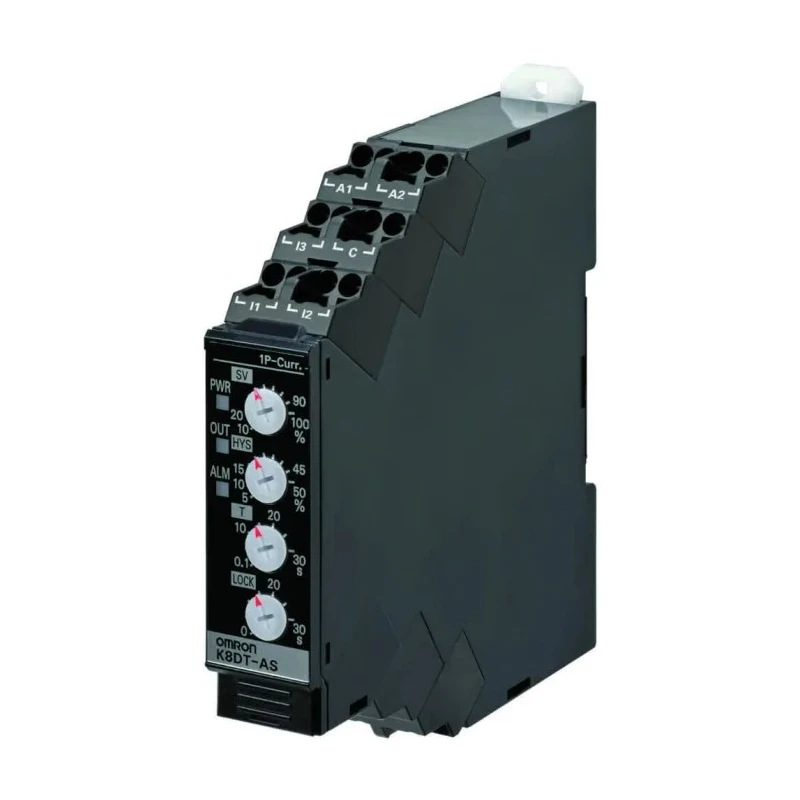

Omron Monitoring Relay 1 Phase SPDT DIN Rail Mount 2mA to 500mA Current Sensing 24 V dc / 240V ac K8DT-AS1CA

Omron K8DT-AS1CA Monitoring Relay is a precision device designed for continuous current monitoring of single-phase electrical systems. It supports both overcurrent and undercurrent detection, ensuring reliable protection of motors and associated equipment in industrial environments. Operating with universal AC supply voltages of 100-240 V or a dedicated 24 V DC supply, this relay offers flexible installation options and is designed for standard DIN rail mounting in control panels and switchgear.

The relay features an adjustable sensing range from 2mA up to 500mA, allowing for fine-tuning to specific application requirements. The SPDT (single-pole double-throw) contact is rated for 5A, enabling effective load switching and signaling in control systems. A built-in time delay of 250 milliseconds minimizes nuisance trips due to transient current spikes, enhancing operational stability.

Designed with easy wiring in mind, the device includes push-in terminals for direct conductor insertion without additional connectors, speeding up installation and maintenance. Its compact form factor with dimensions of 90mm height, 90mm length, and 17.5mm width allows efficient use of panel space. The IP20 rated enclosure protects the relay within enclosed environments but is not intended for exposure to liquids.

Compliant with RoHS, UL 60947-5-1, and EN 60947-5-1 standards, this monitoring relay meets stringent safety and environmental requirements. It operates reliably in ambient temperature conditions ranging from -20°C to 60°C, making it suitable for various industrial, manufacturing, HVAC, and electrical control applications.

This Omron K8DT-AS1CA relay is widely used in automated control panels, industrial pump assemblies, conveyor drive fault detection, and protecting single-phase distribution circuits in machinery. Its robust current monitoring capabilities help prevent motor stall and phase-loss conditions, contributing to the longevity and safety of industrial equipment.

The product package contains the Monitoring Relay unit ready for DIN rail mounting and immediate integration into your electrical or automation system. Explore the full range of Omron relays and other industrial electrical components on EnvMart for reliable and high-performance system solutions.

Provides overcurrent and undercurrent detection for motor and equipment protection. Features adjustable sensing range from 2mA to 500mA for precise current monitoring. Single-pole double-throw (SPDT) contact rated at 5A for load switching.

Equipped with a 250 ms time delay to prevent false trips caused by transient currents. DIN rail mountable with push-in terminals for easy, secure wiring. Operates efficiently with low power consumption of 2.5 VA. IP20 rated enclosure suitable for installation in enclosed control panels.

Complies with RoHS, UL 60947-5-1, and EN 60947-5-1 safety standards. Operational temperature range from -20°C to 60°C for versatile factory use. Compact dimensions: 90mm height, 90mm length, 17.5mm width for space-saving installation.
