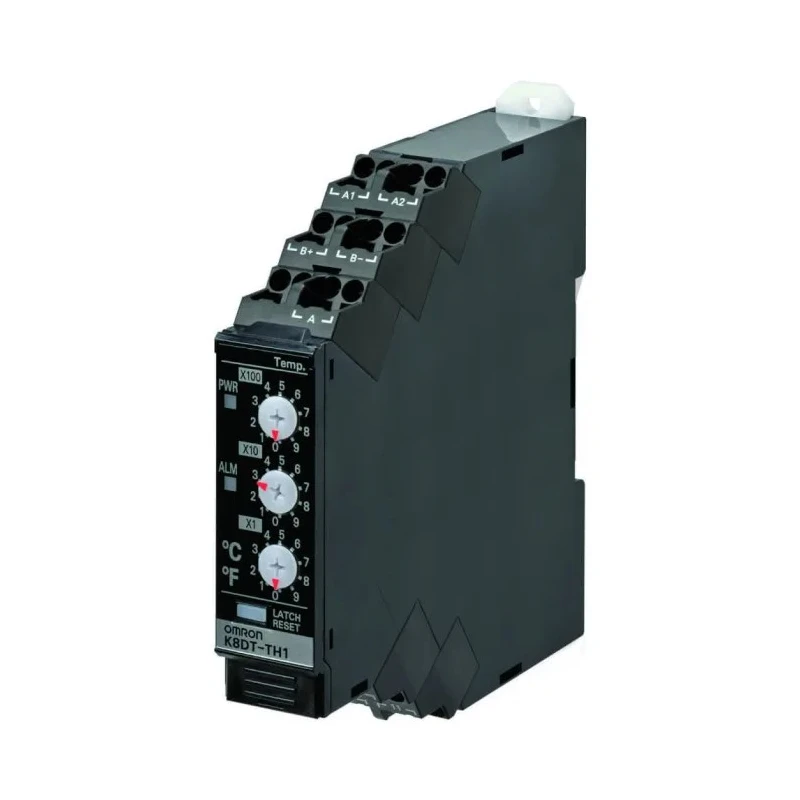

Omron Monitoring Relay SPST DIN Rail Thermocouple Temperature Control 0-999°C 20.4-26.4V DC/AC K8DT-TH1TD
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 90mm |
| Function | On or Off Control, Temperature |
| Length | 90mm |
| Model | K8DT-TH1TD |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | K8DT-TH |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Sub Type | Thermocouple |
| Minimum Operating Temperature | +60°C |
| Terminal type | Push-in |
| Contact Current | 10A |
| Supply DC Voltage | 20.4 → 26.4 V dc |
| Supply AC Voltage | 26.4V ac |
| Maximum Temperature Monitoring | 999°C |
| Minimum Temperature Monitoring | 0°C |
| Crouzet Temperature Monitoring Relay, SPSTBrand | Crouzet |
| Omron Monitoring Relay, SPST, DIN Rail, Monitoring | 0 °C to 999 °C, 20.4 → 26.4 V dc 26.4V ac |
Key Features
- SPST contact rated for 10 A ensures robust direct load switching.
- Wide temperature monitoring range from 0 °C up to 999 °C for versatile applications.
- Push-in terminal design enables quick and secure wiring connections.
- Compatible with both DC and AC power supplies for flexible installation.
- Compact size with 90mm height and depth, and 17.5mm width for easy panel integration.
- IP20 rated enclosure suitable for protected industrial environments.
- Includes standard compliance with EN 61326-1, UL 61010-1, and RoHS.
- Ideal for temperature alarm signaling and heating element monitoring.
Product Description
Omron K8DT-TH1TD Monitoring Relay is a precision thermocouple input device engineered for industrial temperature control and supervision. Operating within a temperature range of 0 °C to 999 °C, it supports both 20.4-26.4 V DC and 26.4 V AC power supplies, making it suitable for diverse electrical and automation panels. The compact DIN rail mounting form factor with dimensions of 90mm height, 90mm depth, and a slim 17.5mm width allows for efficient space utilization in control cabinets.
This relay features an SPST contact rated at 10 A, enabling direct load switching and simple on/off temperature control. Its push-in terminal configuration promotes quick and reliable wiring, reducing installation time and ensuring secure electrical connections. The IP20 rated enclosure protects internal components from foreign objects and dust ingress under enclosed installation conditions.
Engineered to meet rigorous industrial standards including EN 61326-1, UL 61010-1, EN 61010-1, and RoHS compliance, this device ensures safety and emission regulations adherence. The K8DT-TH series is widely used for monitoring heating elements in production equipment, providing temperature alarm signaling in electrical panels, and on/off control of fans and cooling systems, enhancing operational safety and equipment longevity.
Its reliable operation ambient can range from -20 °C to 60 °C, supporting typical indoor industrial environments. The DIN rail mounting facilitates convenient installation and replacement without the need for complex mechanical mounting solutions.
SPST contact rated 10 A for load switching and control. Thermocouple input covers wide temperature range 0-999 °C. Push-in terminals enable fast, secure wiring. Dual DC/AC supply voltage compatibility between 20.4 and 26.4 V.
Compact design with 90mm height and depth, 17.5mm width. IP20 protection suitable for enclosed electrical cabinets. Meets EN 61326-1, UL 61010-1, and RoHS standards. Ideal for temperature alarms, heating element supervision, and fan control.
Reliable performance from -20 °C to 60 °C ambient conditions. Designed for easy mounting on standard DIN rails. Explore more monitoring and control solutions at EnvMart for industrial automation and electrical system optimization.
Explore more products in our Monitoring Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The monitoring relay can monitor temperatures ranging from 0 °C to 999 °C.
It is compatible with both DC and AC power supplies, specifically 20.4-26.4 V DC and 26.4 V AC.
This model features an SPST (Single Pole Single Throw) contact configuration rated for 10 A.
The relay has a compact size with dimensions of 90mm in height, 90mm in depth, and 17.5mm in width.
The device has an IP20 rating, which means it is suitable for protected industrial environments.
This relay is designed for DIN rail mounting, facilitating easy installation and replacement.
The reliable operation ambient temperature range is from -20 °C to 60 °C.
It features push-in terminals that enable quick and secure wiring connections.
It complies with EN 61326-1, UL 61010-1, and RoHS standards.
It is designed for on/off control and temperature monitoring applications.
The maximum contact current rating for this relay is 10 A.
This model is suitable for temperature alarm signaling, heating element monitoring, and control of fans and cooling systems.
