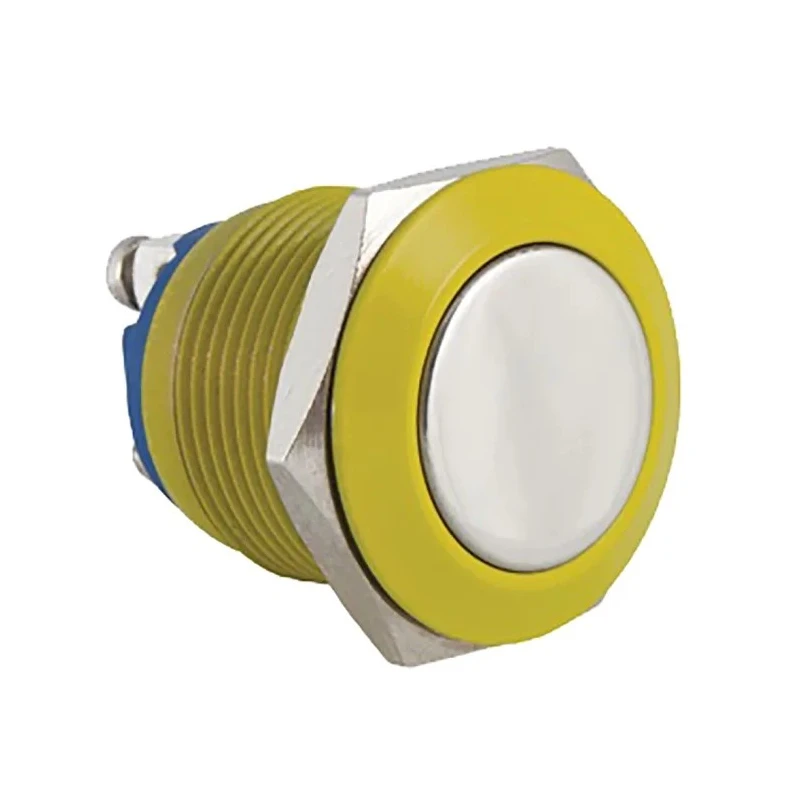

RS PRO Push Button Switch Momentary Panel Mount 19 mm Cutout SPST IP65 Rated 36 V dc 914-3566

Name: RS PRO Push Button Switch Momentary Panel Mount 19 mm Cutout SPST IP65 Rated 36 V dc 914-3566
Brand: RS PRO
SKU: 388243
Price: 1994.59 INR
Availability: InStock



Category Push Button Switches Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Operating Temperature Range	-25 °C to +55 °C
Model	914-3566
IP Rating	IP65
Operating Pressure	4N approximately
Mount Type	Panel
Ingress Protection	IP65
Maximum Operating Temperature	55°C
Switch Rating	2 A at 36 V dc
Contact Configuration	SPST
Switch Configuration	1 NO
Minimum Operating Temperature	-25°C
Panel Cutout Size	19 mm
Switching	1NO Momentary
Terminal type	Screw
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	White
Contact DC Voltage	36V dc
Actuator Style	Push Button
Switch Contact Current	2A
Mechanical Life	1,000,000 cycles
Electrical Life	200,000 cycles
Operating Travel	1.5mm approximately

Key Features

This push button switch features a white actuator color and operates with momentary switch action.
It has an IP65 ingress protection rating, suitable for harsh environments.
The switch has a mechanical life expectancy of 1,000,000 cycles and electrical life of 200,000 cycles.
The contact configuration is single pole single throw (SPST) with a switch rating of 2 A at 36 V dc.
The terminal type is screw for secure panel mounting and easy installation.
The operating temperature range is from -25°C to +55°C, supporting wide application environments.
The actuator style is push button with approximately 1.5 mm travel and an operating pressure of around 4 N.
This non-illuminated switch is RoHS compliant and designed for anti-vandal use.

Product Description

RS PRO 914-3566 Push Button Switch is a momentary SPST switch designed for panel mounting with a 19 mm cutout size. Operating at 36 V dc with a current rating of 2 A, it is ideal for rugged and industrial applications requiring reliable switching performance.

The switch features a white push button actuator with a robust construction rated IP65 ingress protection, ensuring dust and water resistance suitable for harsh operating conditions. It has a mechanical life of 1,000,000 cycles and an electrical life expectancy of 200,000 cycles, guaranteeing durability in demanding industrial environments.

Installation is facilitated by screw terminals, allowing mounting on panels between 1 mm and 10 mm thick. The switch operates within a broad temperature range of -25 °C to +55 °C, accommodating various climatic conditions.

The switch's momentary operation with a 1 NO contact configuration supports control applications in automation, manufacturing, electrical panels, and industrial machinery. Its anti-vandal design adds reliability and protection in public or exposed installations.

The product is RoHS compliant, ensuring it meets environmental and safety standards. This makes the RS PRO 914-3566 an excellent choice for professionals seeking a dependable, long-lasting push button switch for applications requiring momentary panel switch functionality with robust IP65 protection.

This push button switch features a white actuator color and operates with momentary switch action. It has an IP65 ingress protection rating, suitable for harsh environments. The switch has a mechanical life expectancy of 1,000,000 cycles and electrical life of 200,000 cycles.

The contact configuration is single pole single throw (SPST) with a switch rating of 2 A at 36 V dc. The terminal type is screw for secure panel mounting and easy installation. The operating temperature range is from -25°C to +55°C, supporting wide application environments.

The actuator style is push button with approximately 1.5 mm travel and an operating pressure of around 4 N. This non-illuminated switch is RoHS compliant and designed for anti-vandal use. Explore a wide range of Push Button Switches and other electrical components in the Electronics & Electricals category on EnvMart for your industrial automation and control needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch has a contact configuration of single pole single throw (SPST) with a momentary operation style, featuring 1 normally open (1 NO) contact.

This model has an IP65 ingress protection rating, making it suitable for use in harsh environments as it is dust-tight and protected against water jets.

The operating temperature range is from -25 °C to +55 °C, allowing it to function in a variety of climatic conditions.

The electrical life expectancy of this switch is 200,000 cycles, ensuring reliable performance over time in electrical applications.

The maximum current rating for this model is 2 A at 36 V dc, suitable for various low-voltage applications.

It uses screw terminals for secure panel mounting, facilitating easy installation on panels between 1 mm and 10 mm thick.

The actuator style is a push button, and it features a white actuator color.

The mechanical life expectancy of this push button switch is 1,000,000 cycles, indicating its durability for repeated use.

The actuator has an approximate travel distance of 1.5 mm, which is typical for momentary switches.

Yes, this model is RoHS compliant, ensuring it meets relevant environmental and safety standards.

This switch is suitable for control applications in automation, manufacturing, electrical panels, and industrial machinery due to its robust design and specifications.

The operating pressure for this push button switch is approximately 4 N, which is required for its momentary operation.
