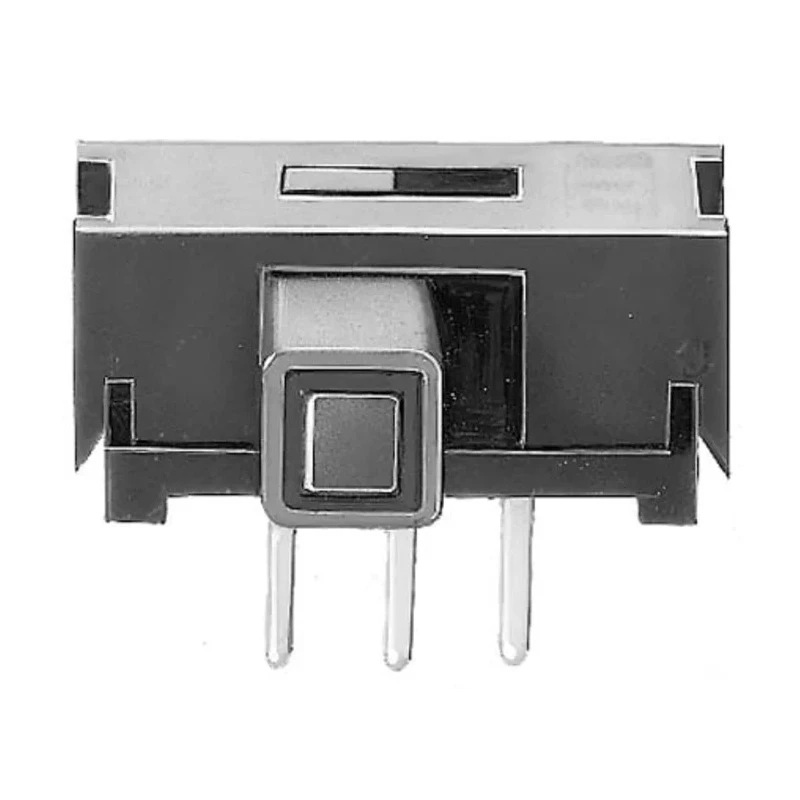

KNITTER-SWITCH PCB Slide Switch DPDT Latching 300mA 30V DC 125V AC MFP 261 N-RA

Name: KNITTER-SWITCH PCB Slide Switch DPDT Latching 300mA 30V DC 125V AC MFP 261 N-RA
Brand: KNITTER-SWITCH
SKU: 388108
Price: 165.52 INR
Availability: InStock



Category PCB Slide Switch Brand KNITTER-SWITCH Condition New

Specifications

Country of Origin	China
Brand	KNITTER-SWITCH
Length	11mm
Model	MFP 261 N-RA
Depth	7.5mm
Width	7.5mm
Mount Type	PCB
Series	MFP
Contact Configuration	DPDT
Switch Configuration	On-On-On
Terminal type	Terminal
Standards/Approvals	RoHS
Switch Operation	Latching
Contact DC Voltage	30V dc
Switch Contact Current	300mA
Mechanical Life	10000Operations
Contact AC Voltage	125V ac

Key Features

Durable latching switch operation suitable for PCB mounting.
Double Pole Double Throw (DPDT) contact configuration enabling versatile switching.
Compact plastic body designed for easy integration with dimensions 11mm length, 7.5mm width and depth.
Silver plated terminals and contacts ensure reliable, low-resistance connections.
Mechanical life rating of 10,000 operations for long-lasting performance.
Non-shorting contact timing enhances electrical safety during switching.
Operates at 300mA contact current with contact voltage ratings of 30V DC and 125V AC.
Compliant with RoHS standards ensuring environmental safety.

Product Description

KNITTER-SWITCH MFP 261 N-RA PCB Slide Switch is a miniature, robust component designed for electronic and electrical applications requiring a reliable double pole, double throw (DPDT) latching switch. Its plastic body construction combines compact size and durability, measuring 11mm in length and 7.5mm in both width and depth to fit precise PCB mounting requirements.

This switch supports latching operation and features silver plated terminals and contacts that enhance conductivity and wear resistance. Rated for a contact current of 300mA, it can handle voltages up to 30V DC and 125V AC, suitable for low-power circuitry in industrial, automation, and consumer electronics contexts.

The MFP series is engineered for a mechanical life of 10,000 operations, ensuring longevity and consistent switching performance. Its non-shorting contact timing feature improves operational safety by preventing unintended simultaneous connections.

Certified under the Restriction of Hazardous Substances (RoHS) directive, this switch meets environmental and safety standards vital for modern manufacturing. Originating from China, the MFP 261 N-RA series slide switch ideally serves applications in electronics assembly, industrial automation, electrical controls, and repair tasks.

Durable latching switch operation for PCB mounting applications. DPDT contact configuration offers versatile switching functions. Compact dimensions of 11mm x 7.5mm x 7.5mm suit space-constrained designs. Silver plated contacts for superior electrical performance and reliability.

Mechanical endurance rated at 10,000 operational cycles. Non-shorting contact timing enhances electrical safety. Rated contact current: 300mA; DC voltage: 30V; AC voltage: 125V. RoHS compliant ensuring environmental compliance.

Produced in China under MFP series standards.

Explore a wide selection of slide switches and other electronic components within the Electronics & Electricals category at EnvMart for industrial, manufacturing, and laboratory applications.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The slide switch features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching functions.

This model has dimensions of 11mm in length, 7.5mm in width, and 7.5mm in depth, making it suitable for space-constrained PCB mounting applications.

It is rated for a contact current of 300mA, suitable for low-power circuitry applications.

The switch can handle contact voltage ratings of 30V DC and 125V AC, making it versatile for different electrical applications.

The mechanical life of this switch is rated at 10,000 operations, ensuring longevity and consistent performance in applications.

Yes, the KNITTER-SWITCH MFP 261 N-RA is compliant with RoHS standards, ensuring it meets environmental safety regulations.

This model is designed for PCB mounting, making it suitable for integration into various electronic circuits.

It features a latching switch operation, allowing it to maintain its position until manually changed.

The switch has terminal type connections, facilitating easy integration into PCB layouts.

This slide switch is manufactured in China, adhering to the MFP series standards.

It includes non-shorting contact timing, which enhances electrical safety by preventing unintended simultaneous connections during operation.

This model is suitable for applications in electronics assembly, industrial automation, electrical controls, and repair tasks due to its reliable switching capabilities.
