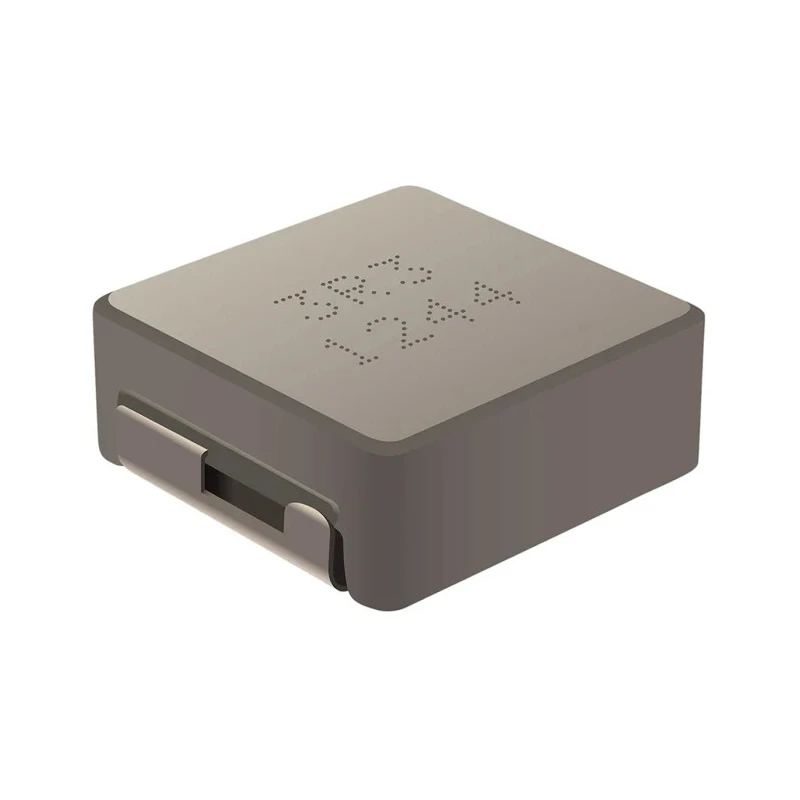

Bourns Shielded Wirewound Surface Mount Inductor with Carbonyl Powder Core 100 μH ±20% 5.3A IDC SRP1770TA

Bourns SRP1770TA shielded wirewound surface mount inductor features a carbonyl powder core designed for high saturation current and low magnetic interference. This 100 μH inductor offers ±20% inductance tolerance and a maximum DC current rating of 5.3 A, making it suitable for power regulation in automotive, industrial, and consumer electronics.

The device meets the stringent AEC-Q200 automotive standard, ensuring reliability in driver assistant systems, lighting modules, and information/entertainment systems. Its shielded wirewound construction reduces magnetic radiation, important for noise-sensitive applications. With an operating temperature range of -40°C to 150°C, it withstands severe operating environments.

Dimensionally compact, the inductor uses a 1770 package style with physical dimensions of 17.3 mm length, 16.9 mm height, and 6.7 mm depth. It features solder termination for surface mounting and comes in reel packaging, facilitating high-volume automated assembly.

Additional technical attributes include a maximum DC resistance of 118 milliohms, minimum quality factor of 20, and a maximum self-resonant frequency of 2 MHz. The carbonyl powder core and enamelled copper wire construction contribute to the device’s robust electrical performance. It is RoHS compliant, meeting environmental and safety standards.

This surface mount power inductor is ideal for use in power supplies, DC/DC converters, and automotive electronic modules, where stability, efficiency, and low noise are critical. Its reliable design and certifications ensure suitability for industrial, automotive, and HVAC applications.

Constructed from carbonyl powder core for high saturation current performance. Shielded design minimizes magnetic radiation for sensitive electronic applications. Meets automotive standard AEC-Q200 for reliable use in automotive systems.

Suitable for power supplies, driver assistant devices, lighting, and DC/DC converters. Operating temperature range from -40°C to 150°C supports harsh environments. Compact 1770 package with dimensions: length 17.3mm, height 16.9mm, depth 6.7mm.

RoHS compliant and solder termination style for surface mount installation. Maximum DC resistance of 118 mΩ ensures efficient performance. Minimum quality factor of 20 and maximum self-resonant frequency of 2 MHz. For more components like inductors and passive electronics, browse our Electronics & Electricals category at EnvMart.
