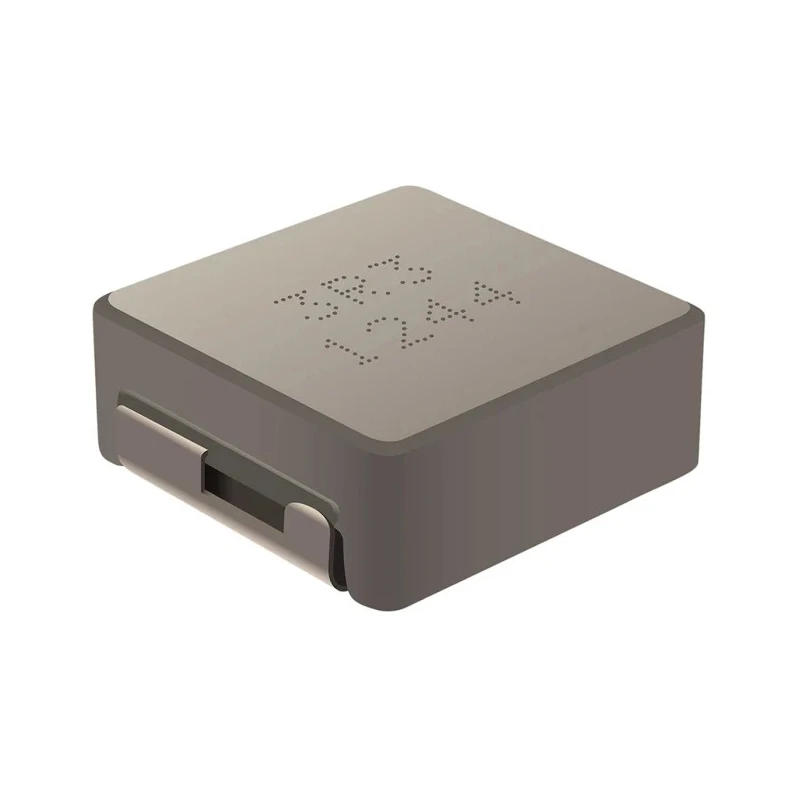

Bourns Shielded Wirewound Surface Mount Inductor 15 μH ±20 %, 12.5 A IDc, Carbonyl Powder Core, Reel Package SRP1770TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 16.9mm |
| Length | 17.3mm |
| Model | SRP1770TA |
| Depth | 6.7mm |
| Packaging | Reel |
| Series | SRP1770TA |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Carbonyl Powder |
| Inductance | 15μH |
| Standards/Approvals | RoHS |
| Package/Case | 1770 |
| Maximum DC Current | 12.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 20.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 7MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a carbonyl powder core for high saturation current and durability.
- Shielded design reduces magnetic radiation, ensuring low EMI interference.
- Operates effectively within a temperature range of -40°C to 150°C.
- Complies with AEC-Q200 automotive industry standard for reliability.
- Features solder termination style suitable for surface mount technology assembly.
- Compact packaging in 1770 reel case for easy automated PCB mounting.
- Maximum DC resistance is 20.5 milliohms, supporting efficient current flow.
- Capable of operating frequencies up to 7 MHz with a minimum quality factor of 20.
Product Description
Bourns SRP1770TA wirewound surface mount inductor offers robust performance with a carbonyl powder core and shielded construction, providing low EMI and high saturation current. This 15 μH ±20 % inductance component supports a maximum DC current of 12.5 A, making it suitable for demanding electronic power applications.
The device is built with a 1770-sized package, measuring 17.3 mm in length, 16.9 mm in height, and 6.7 mm in depth with 2 pins and a solder termination style, facilitating secure and reliable PCB mounting. It complies with the AEC-Q200 automotive standard, enabling use in automotive systems, including driver assistance, lighting, and infotainment systems.
The inductor is designed to operate over a wide temperature range from -40°C to 150°C and has a maximum DC resistance of 20.5 mΩ, ensuring efficient power delivery. It supports frequencies up to 7 MHz with a minimum quality factor of 20, suitable for power supplies and DC/DC converters.
Key features include its carbonyl powder core, high saturation current, and molded wirewound construction shielded against magnetic interference. The reel packaging facilitates ease of assembly and inventory management.
Constructed with a carbonyl powder core for high saturation current and durability. Shielded design reduces magnetic radiation and electromagnetic interference. Automotive qualified with compliance to AEC-Q200 standard. Supports a wide operating temperature range from -40°C to 150°C.
Compact 1770 package for efficient PCB space utilization. Solder termination style for secure surface mount applications. Maximum DC resistance of 20.5 milliohms for optimal conduction. Suitable for high-frequency applications up to 7 MHz.
Minimum quality factor of 20 ensures effective inductance performance.
The Bourns SRP1770TA series is ideal for industrial, automotive, telecommunications, and power management applications requiring a reliable and robust surface mount power inductor.
Explore more inductors and electronic components under the Electronics & Electricals category on EnvMart.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 15 μH with a tolerance of ±20%.
It can handle a maximum DC current of 12.5 A.
The maximum DC resistance is 20.5 milliohms, which supports efficient current flow.
This inductor operates effectively within a temperature range of -40°C to 150°C.
The core material is carbonyl powder, which contributes to high saturation current and durability.
The maximum self-resonant frequency is 7 MHz.
The minimum quality factor is 20, ensuring effective inductance performance.
It is packaged in a reel, which facilitates easy automated PCB mounting.
The termination style is solder, suitable for surface mount technology assembly.
It complies with the AEC-Q200 automotive industry standard for reliability.
The dimensions are 17.3 mm in length, 16.9 mm in height, and 6.7 mm in depth.
This model is suitable for industrial, automotive, telecommunications, and power management applications.
