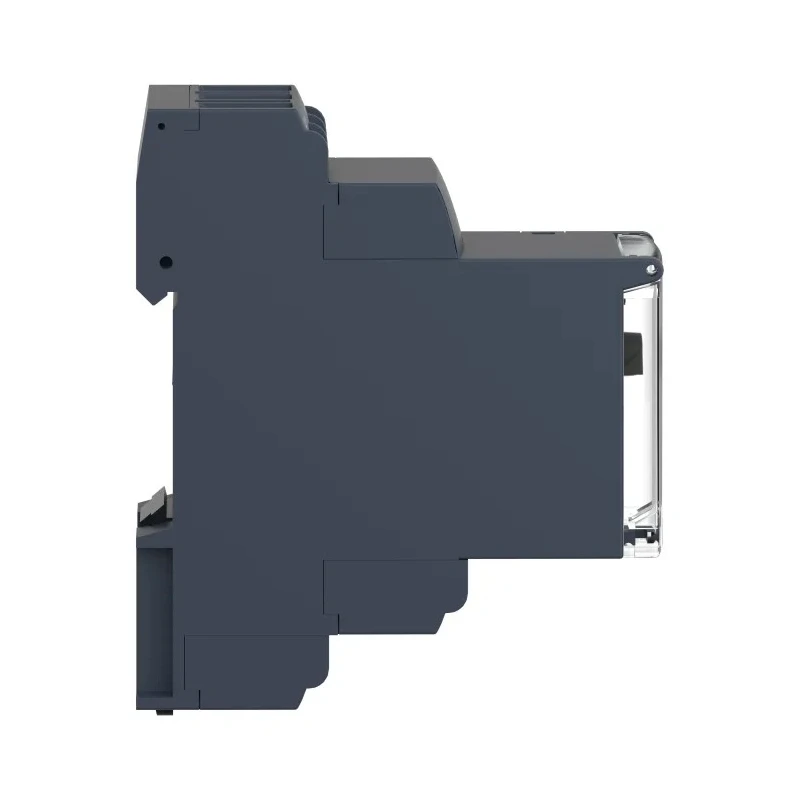

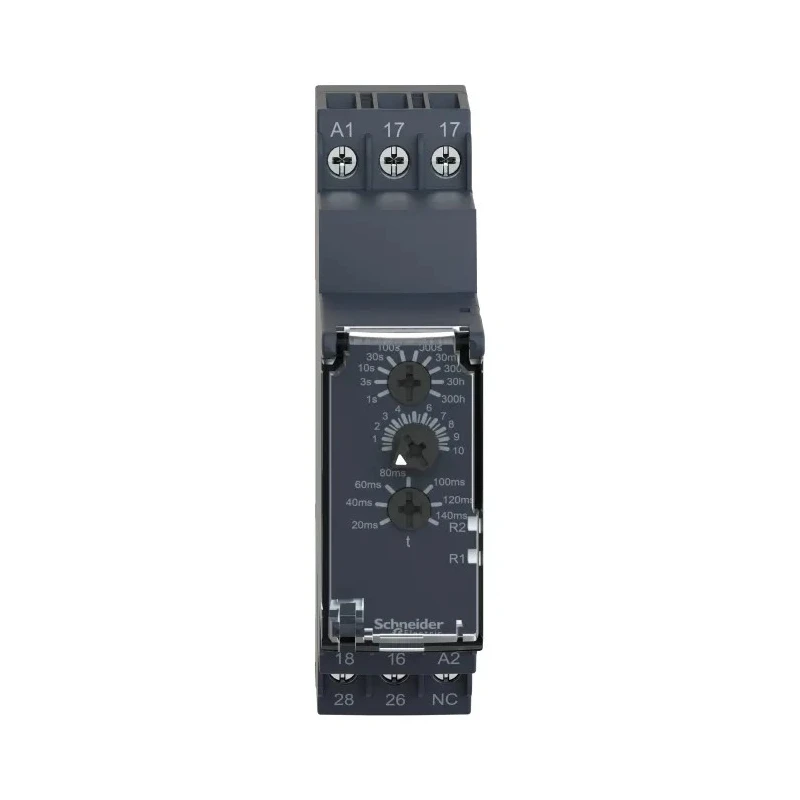

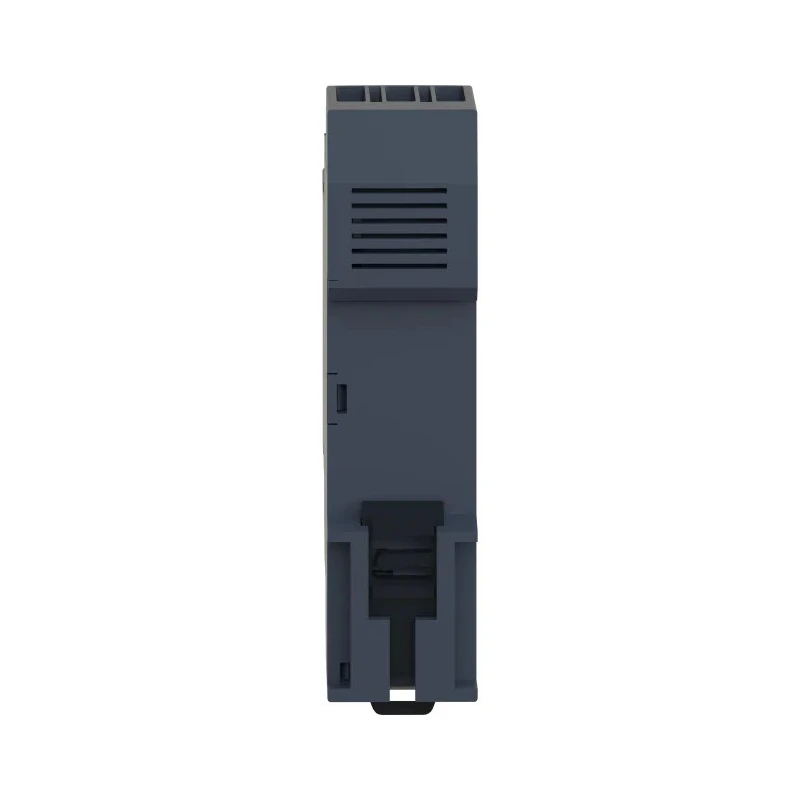

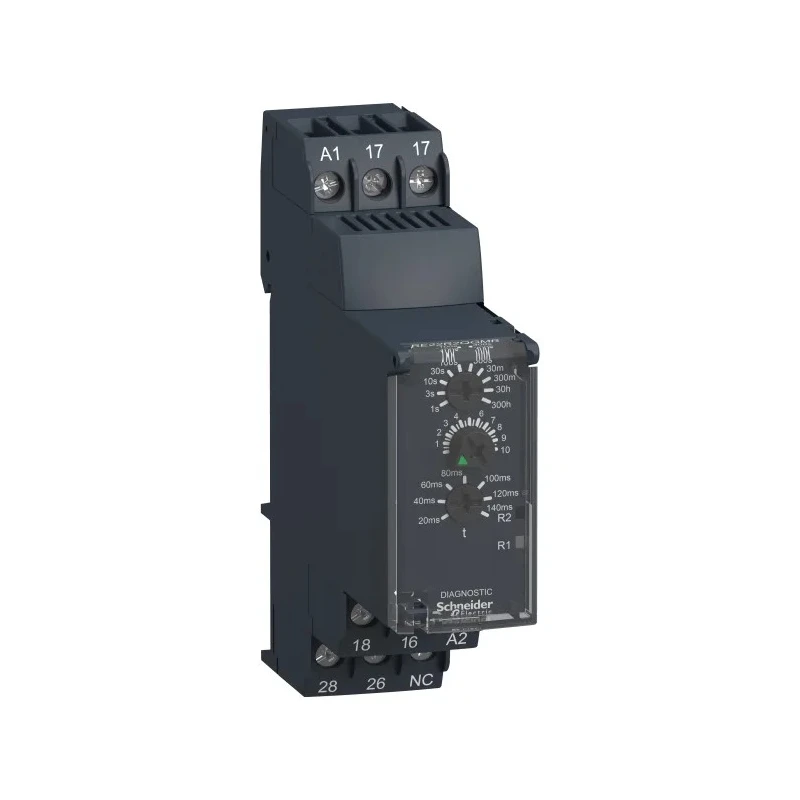

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 2-Contact, 240 V DC, 24 V AC, 240 V AC, 0.05 to 1 s RE22R2QGMR

Schneider Electric RE22R2QGMR is a Harmony Time Series DIN Rail Timer Relay designed for precise timing control in industrial automation and electrical systems. It features a 2-contact DPDT switch configuration suitable for valve control functions. The relay supports a broad range of timing intervals starting from as low as 0.05 seconds up to 300 hours, with this model configured specifically for the 0.05 to 1 second range.

This timer relay supports multiple supply voltages including 240 V DC, 24 V AC, and 240 V AC, enabling versatile applications across various circuits. It is equipped with screw terminals for reliable and secure mounting on DIN rails, facilitating easy installation and replacement in electrical panels.

The device operates effectively within a temperature range from -20°C to 60°C and offers ingress protection ratings of IP20 at the terminal block, IP40 for the housing, and IP50 on the front face, ensuring protection against dust and physical contact. The housing casing is self-extinguishing, enhancing safety in industrial environments.

Key functional advantages include LED state indication that provides clear operational feedback, and a knob for easy adjustment of the timing settings. The relay has a repeat accuracy of ±0.5% compliant with IEC 61812-1 standards, promoting consistent and reliable operation.

Compact with dimensions of 22.9 mm length, 90 mm width, and 79.5 mm height, it fits standard control cabinets without occupying excessive space. This product is ideal for industrial automation, manufacturing processes, HVAC systems, and other control applications requiring precise time-based switching.

Supports timing ranges from 0.05 to 1 second. Equipped with 2 contacts configured as DPDT for versatile switching. Operates with supply voltages of 240 V DC, 24 V AC, and 240 V AC. Features robust screw terminal connections for secure mounting on DIN rails.

Designed with an operating temperature range from -20°C to 60°C. Ingress protection ratings IP20 (terminal block), IP40 (housing), and IP50 (front face) ensure durability. Includes LED state indication and a knob for timing adjustments.

Constructed with a self-extinguishing housing material for safety. Repeat accuracy of ±0.5% conforms to IEC 61812-1 standards. Compact dimensions with a 22.9 mm length, 90 mm width, and 79.5 mm height. Explore the full range of Timer Relays and automation components at EnvMart for reliable and efficient industrial automation solutions.
