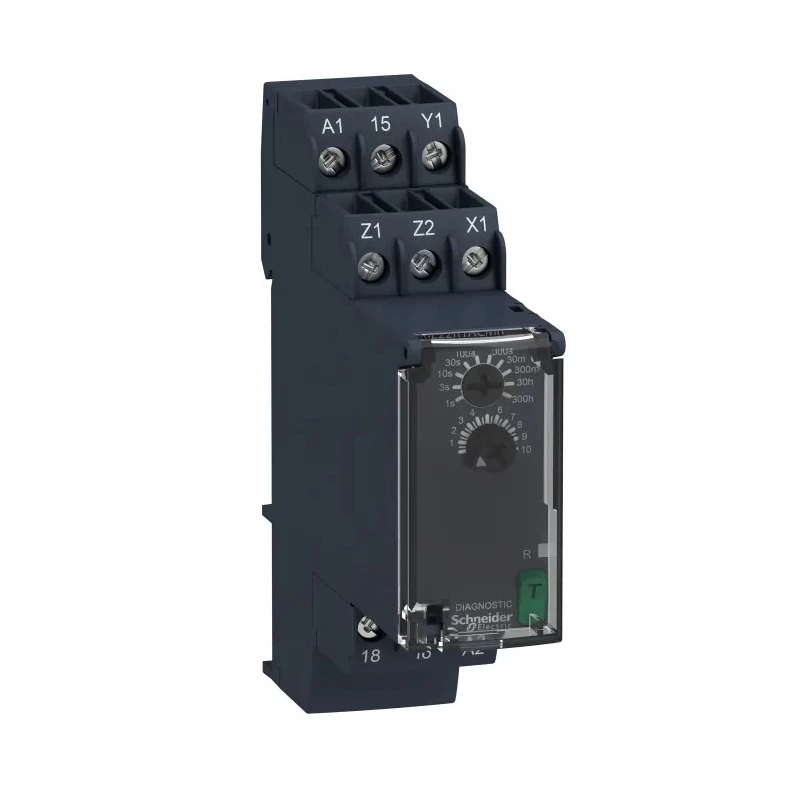

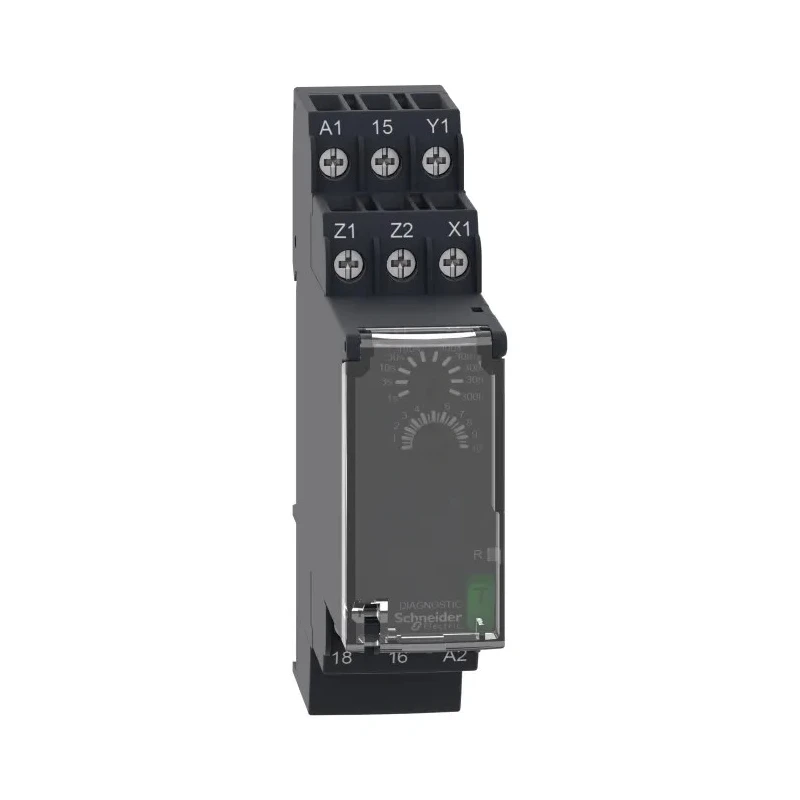

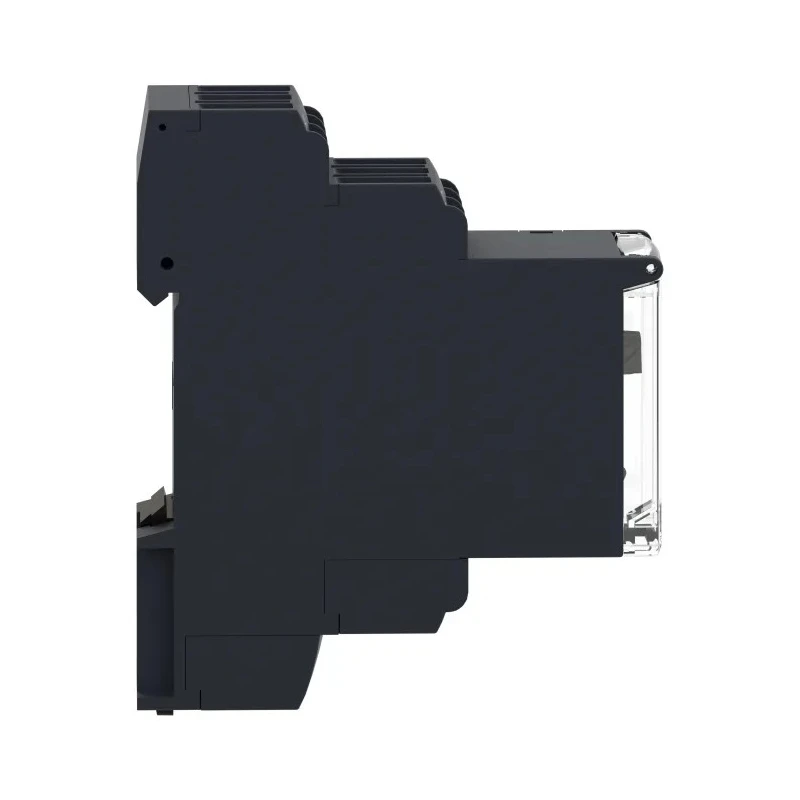

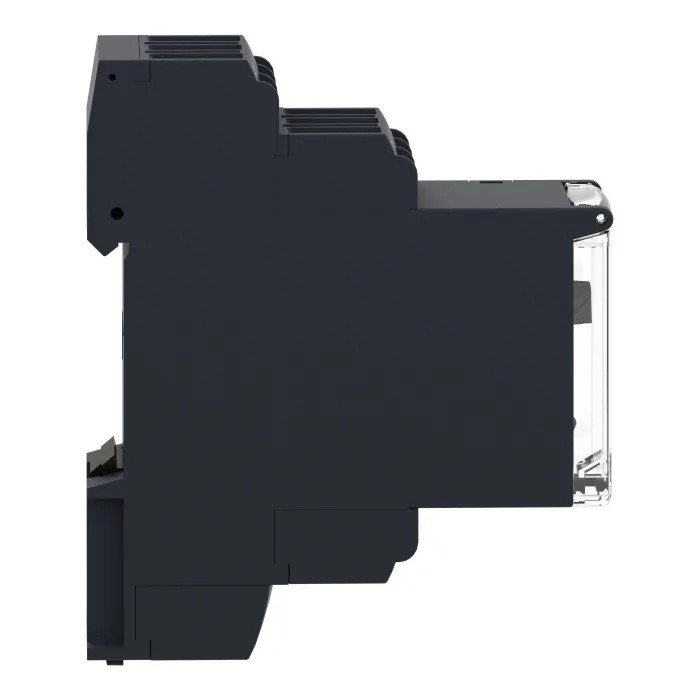

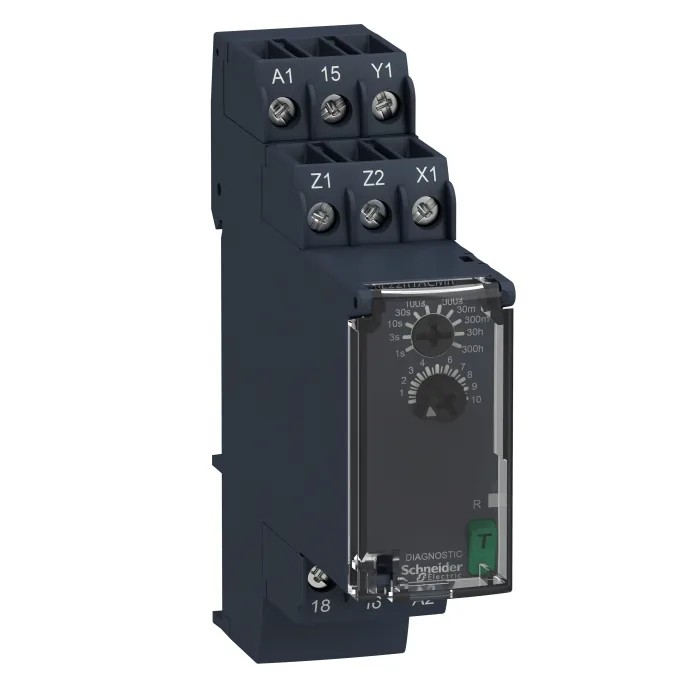

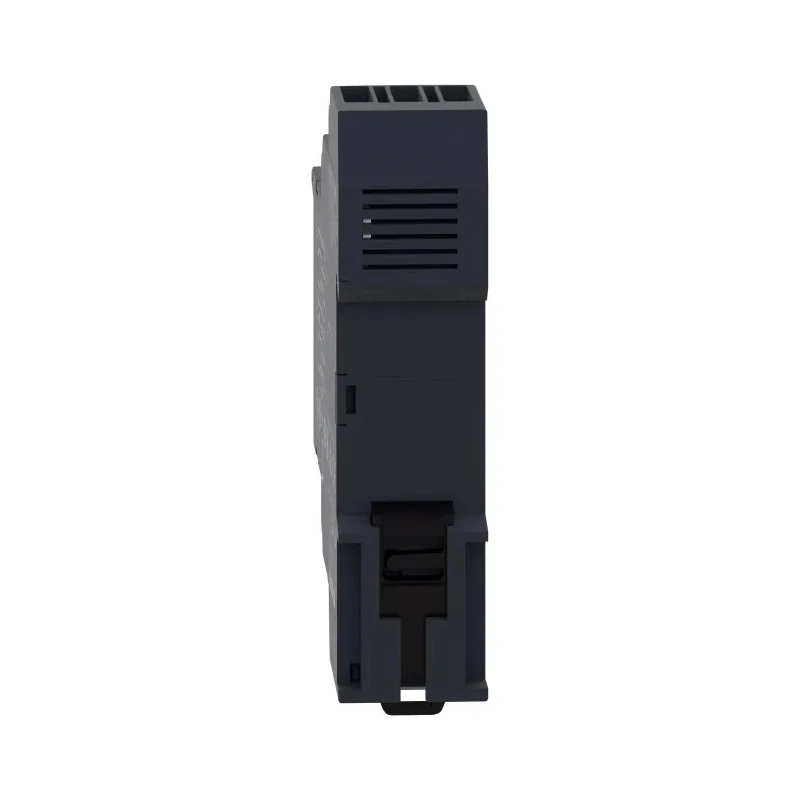

Schneider Electric Harmony Time Series DIN Rail Timer Relay, 1-Contact, 240 V dc 24 V ac, 240 V ac, 0.05 to 1 s RE22R1ACMR

Schneider Electric RE22R1ACMR DIN Rail Timer Relay is a multifunctional timer designed for precise time control in industrial and automation systems. This timer features one contact and supports both DC and AC supply voltages, 240 V dc and 24 V to 240 V ac, making it versatile for various applications.

The device is designed to mount on standard DIN rails with dimensions optimized for space-saving installations (22.9 mm length, 90 mm width, and 79.5 mm height). It uses screw-type terminals, ensuring reliable and secure wiring in demanding industrial environments.

This timer series offers multiple timing ranges from milliseconds to hours, specifically from 0.05 to 1 second in this model, enabling precise control over operations such as motor starters, lighting delays, and process automation.

With a contact current rating of 8 A and SPDT contact configuration, it is suitable for switching and controlling electrical loads efficiently. The housing is fabricated from self-extinguishing material and designed with ingress protection ratings of IP20 (terminal block), IP40 (housing), and IP50 (front face), providing durability and safety in industrial settings.

Temperature operation range spans from -20°C to 60°C, catering to various climatic and operational conditions. State indication is facilitated by an integrated LED for easy operational status visibility.

The RE22R1ACMR timer complies with international standards such as CSA, UL 508, CE, RCM, GL, UL, CCC, EAC, and IEC 61812-1, ensuring high safety and quality benchmarks suitable for industrial automation, electrical installations, manufacturing processes, and control systems.

Designed for DIN rail mounting with compact dimensions. Supports multifunctional timing with high precision. Robust screw terminals for secure connection. Wide operating temperature tolerance and industrial-grade ingress protection.

LED state indication for clear monitoring. Self-extinguishing housing material enhances operational safety. Meets multiple international standards ensuring compliance and reliability. Suitable for diverse industrial and automation applications.

Explore our extensive Schneider Electric Timer Relay range for efficient and reliable control solutions across industrial and electrical systems on EnvMart.
