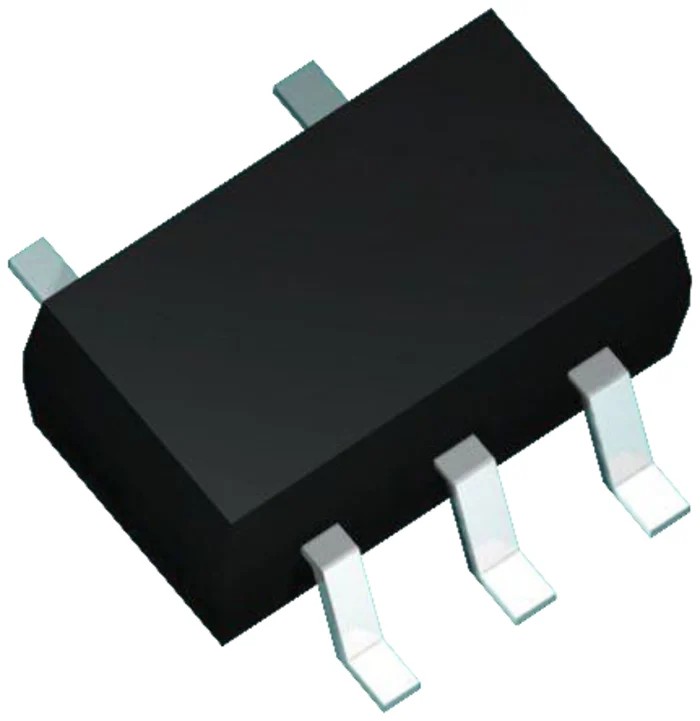

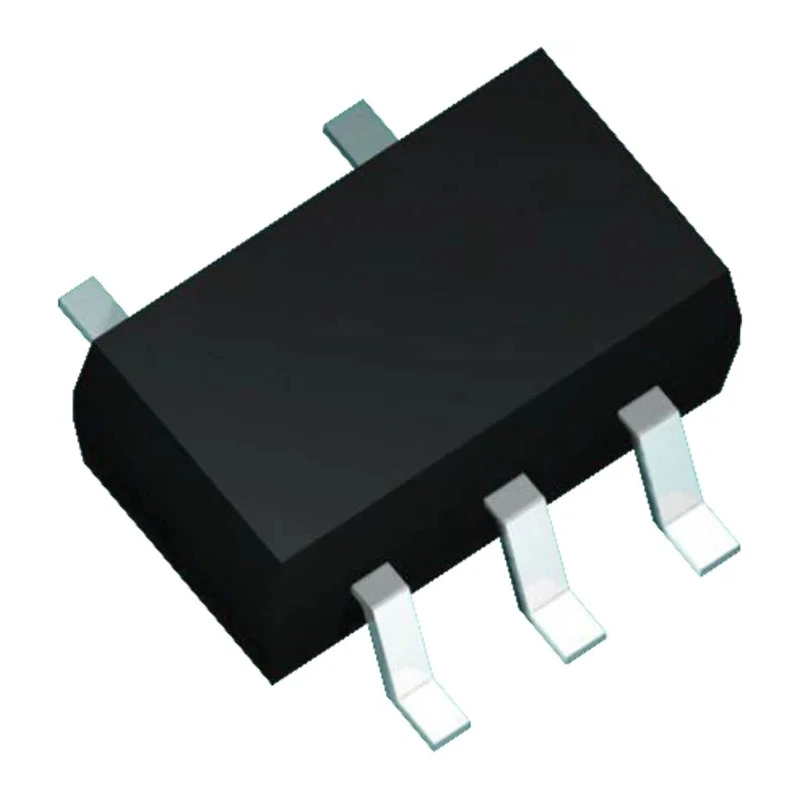

DiodesZetex Surface Hall Effect Sensor 1.65 V to 3.3 V, SOT-553 Package, 5-Pin AH1883-ZG-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Response time | 3.75μs |
| Height | 600μm |
| Length | 1.7mm |
| Model | AH1883-ZG-7 |
| Technology | Chopper Stabilised |
| Sensor Type | Hall Effect Sensors |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | AH1883 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-553 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 1.65V |
| Magnetic Type | Omnipolar |
Key Features
- Utilizes chopper stabilized technology for precise sensing.
- Omnipolar magnetic sensing for versatile magnetic field detection.
- Wide operating temperature range from -40°C to 85°C.
- Fast response time of 3.75 microseconds ensures quick magnetic field detection.
- RoHS compliant, ensuring environmental safety.
- Ideal for non-contact switching and sensing applications in industrial electronics.
Product Description
DiodesZetex AH1883-ZG-7 is a chopper stabilized surface Hall Effect sensor, designed for accurate and reliable detection of magnetic fields through its omnipolar sensing capability. It operates within a voltage range of 1.65 V to 3.3 V and is packaged in a compact SOT-553 5-pin surface-mount package with dimensions measuring 1.7 mm in length, 1.25 mm in width, and a height of 600 µm.
This sensor sustains a wide operating temperature spectrum from -40°C to 85°C, making it suitable for demanding industrial and automotive environments. Its rapid response time of 3.75 microseconds offers quick switching, which is essential in motion sensing and proximity detection applications.
As a RoHS compliant device, the AH1883-ZG-7 meets key environmental directives, suitable for designs prioritizing regulatory compliance. The omnipolar magnetic type allows it to detect magnetic fields of either polarity, enabling flexible usage without concern for magnet orientation.
Applications include industrial automation, electronic controls, consumer electronics, and embedded systems that require precise magnetic field switching or latching functionality without physical contact, enhancing durability and reliability.
Chopper stabilized technology ensures low offset and high precision outputs. Surface-mount SOT-553 packaging facilitates easy integration into compact PCB designs. Wide temperature tolerance supports use in harsh environments.
Five pin configuration supports typical Hall sensor interfacing requirements. Omnipolar sensing adds versatility to magnetic detection tasks. Fast switching response time reduces system latency in control applications. Meets RoHS directive for environmentally responsible manufacturing.
This Hall Effect sensor is an excellent choice for engineers and designers looking for reliable, accurate magnetic sensing devices with small form factors and robust performance for commercial, industrial, and automotive applications. Explore more sensors and semiconductor components in the Electronics & Electricals category on EnvMart.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 1.65 V to 3.3 V.
The response time of the AH1883-ZG-7 is 3.75 microseconds, allowing for quick magnetic field detection.
The SOT-553 package has dimensions of 1.7 mm in length, 1.25 mm in width, and a height of 600 µm.
This sensor can operate in a wide temperature range from -40°C to 85°C, making it suitable for various environments.
It utilizes chopper stabilized technology for precise sensing of magnetic fields.
This Hall Effect sensor has omnipolar sensing capability, allowing it to detect magnetic fields of either polarity.
This model features a 5-pin configuration, which supports typical Hall sensor interfacing requirements.
Yes, this sensor is RoHS compliant, ensuring it meets key environmental directives.
It is suitable for non-contact switching and sensing applications in industrial automation, electronic controls, and consumer electronics.
This model is designed for surface mounting, facilitating easy integration into compact PCB designs.
The AH1883-ZG-7 is part of the AH1883 series of Hall Effect sensors.
The AH1883-ZG-7 is manufactured in India.
