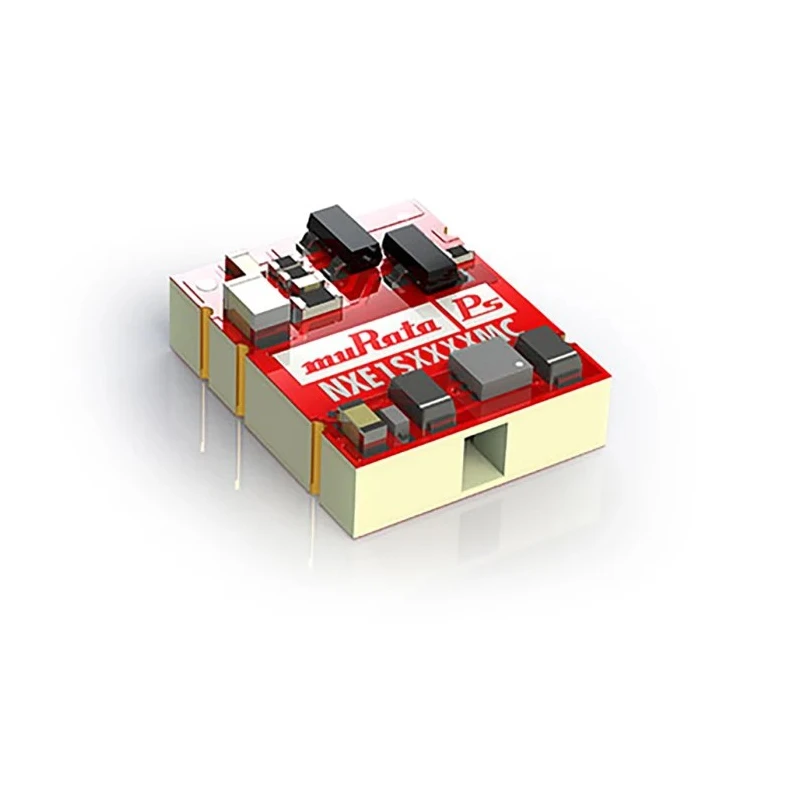

Murata Power Solutions Isolated 1W Single Output DC/DC Converter, 5V DC Input, 200mA Output, Surface Mount, 14-Pin NXE1
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NXE1 DC/DC Converter, 5V dc |
| Brand | Murata Power Solutions |
| Efficiency | 66% |
| Length | 12.7mm |
| Model | NXE1 |
| Depth | 4.5mm |
| Gross Weight | 1g |
| Width | 10.41mm |
| Mount Type | Surface |
| Series | NXE1 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 5V dc |
| Standards/Approvals | RoHS |
| Number of Pins | 14 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 3kV dc |
Key Features
- This converter provides a stable 5V DC output voltage at 200mA maximum output current.
- Compact surface mount design with a low profile of 4.5mm height and small footprint.
- Offers 3kV DC isolation voltage ensuring safety in industrial applications.
- Operates efficiently with 66% efficiency over a wide industrial temperature range.
- Features a substrate-embedded transformer for enhanced performance and reliability.
- Meets RoHS compliance and relevant UL safety approvals (UL60950, UL60101 pending).
- Ideal for space-critical applications requiring a low profile and pin-compatible replacement.
- Supports automated manufacturing and short circuit protection for robust operation.
Product Description
Murata Power Solutions NXE1S0505MC-R7 is a high-quality isolated 1W single output DC/DC converter designed for industrial, laboratory, and electronic power supply applications. It features a 5V DC input voltage and delivers a stable 5V DC output at 200mA maximum current, suitable for compact power solutions where space is critical.
The converter has a low profile of just 4.5mm height and comes in a surface mount 14-pin package with an industry-standard pin footprint for easy integration or replacement in existing designs. Its compact size is achieved by embedding the transformer in the substrate, reducing height by over 30% compared to traditional devices.
Designed to operate over a wide temperature range from -40°C to +85°C, this converter is reliable in harsh industrial environments. It offers an isolation voltage of 3kV DC, providing electrical isolation between input and output sides for safety and noise reduction. Efficiency is rated at 66%, balancing power consumption with performance.
Additional features include RoHS compliance, pending UL approvals (UL60950 and UL60101), and built-in short circuit protection. Automated manufacturing compatibility ensures consistent quality, making it ideal for large-scale production.
Stable 5V DC output at 200mA maximum current. Low profile 4.5mm height surface mount design. 3kV DC electrical isolation between input and output. Operational temperature range -40°C to 85°C. Efficiency rating of 66%. Embedded substrate transformer reduces size and enhances performance.
RoHS compliant and pending UL safety approvals. Short circuit protection included. Manufactured in the United Kingdom ensuring premium quality.
This DC/DC converter is suitable for use in industrial power supplies, electronic instrumentation, telecommunications, and other compact power conversion applications. It is an excellent choice for engineers requiring a reliable, compact, and efficient isolated DC/DC converter.
Explore the full range of Murata Power Solutions products in the DC/DC Converter category on EnvMart for comprehensive solutions tailored to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a stable 5V DC output voltage with a maximum output current of 200mA.
The efficiency of this DC/DC converter is rated at 66%.
It offers an isolation voltage of 3kV DC, ensuring safety between the input and output sides.
The dimensions are 12.7mm in length, 10.41mm in width, and 4.5mm in height.
It operates over a wide temperature range from -40°C to +85°C.
This model features a surface mount design, suitable for compact applications.
It is RoHS compliant and has pending UL safety approvals (UL60950 and UL60101).
This DC/DC converter has one output channel.
The maximum input voltage is 5V DC.
Yes, it includes built-in short circuit protection for robust operation.
It is manufactured in the United Kingdom.
It is suitable for industrial power supplies, electronic instrumentation, and telecommunications, especially in space-critical applications.
