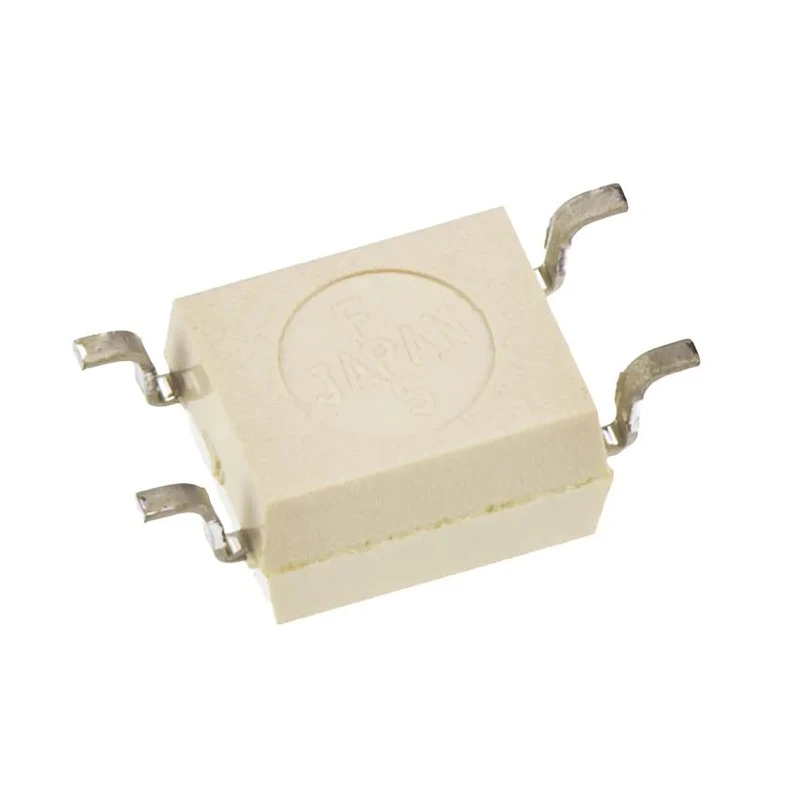

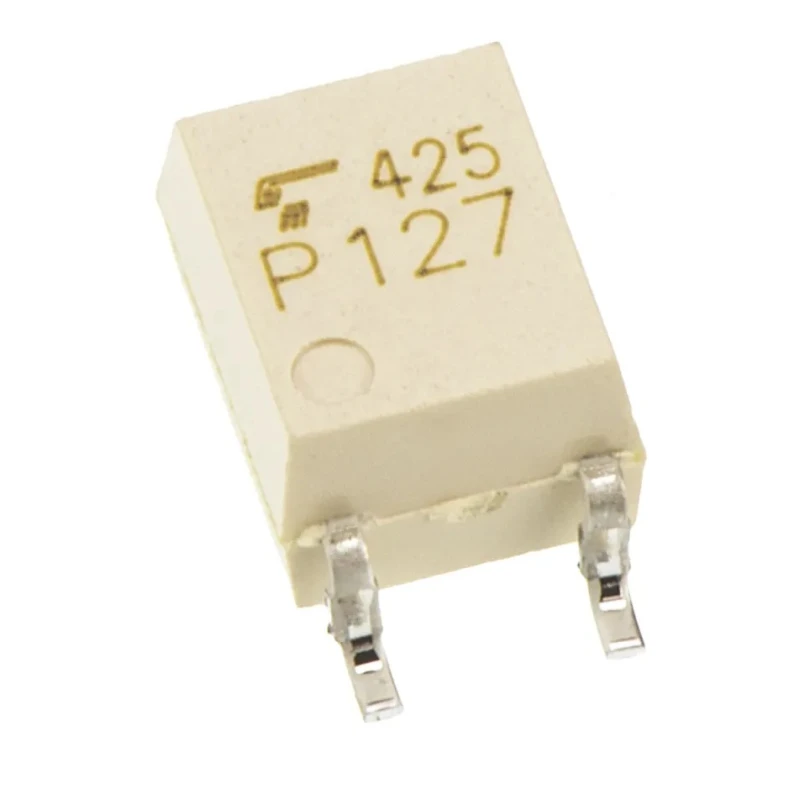

Toshiba DC Input Phototransistor Output Optocoupler Surface Mount 4-Pin SO TLP385(BL,E(T

Free Delivery in India | Lowest Global Shipping Charges

Toshiba DC Input Phototransistor Output Optocoupler Surface Mount 4-Pin SO TLP385(BL,E(T

Name: Toshiba DC Input Phototransistor Output Optocoupler Surface Mount 4-Pin SO TLP385(BL,E(T
Brand: Toshiba
SKU: 385079
Price: 0.32 USD
Availability: InStock



Category Optocoupler Brand Toshiba Condition New

Specifications

Country of Origin	Thailand
Brand	Toshiba
Model	TLP385(BL,E(T
Mount Type	Surface
Output type	Phototransistor
Series	TLP 385
Maximum Operating Temperature	110°C
Package Type	SO
Minimum Operating Temperature	-55°C
Maximum input current	50mA
Number Of Channels	1
Standards/Approvals	UL, EN, CSA
Maximum Forward Voltage	1.4V
Number of Pins	4
Input Current Type	DC
Typical Rise Time	2μs
Maximum Current Transfer Ratio	600%
Typical Fall Time	3μs
Minimum Current Transfer Ratio	200%
Lite-On LTV-356T DC Input Optocoupler, Surface, 4-Pin Mini-FlatBrand	Lite-On

Key Features

Provides electrical isolation with 5000 Vrms isolation voltage.
Compact surface mount package type for easy PCB integration.
Input characteristics include maximum forward voltage of 1.4V and maximum input current of 50mA.
Fast response times with typical rise time of 2 microseconds and typical fall time of 3 microseconds.
Wide operating temperature range from -55°C to 110°C suitable for industrial applications.
High current transfer ratio ranging from 200% minimum to 600% maximum ensures efficient signal transfer.
Complies with UL, EN, and CSA standards for safety and reliability.
Manufactured in Thailand ensuring quality assurance and consistency.

Product Description

Toshiba TLP385(BL,E(T is a DC input optocoupler featuring a phototransistor output and surface mount 4-pin SO package. It provides reliable electrical isolation between input and output circuits, ideal for industrial, electronic, and power control applications.

This optocoupler supports a maximum forward voltage of 1.4V and can handle a maximum input current of 50mA. It offers fast switching capabilities with typical rise time of 2 microseconds and a typical fall time of 3 microseconds, making it suitable for high-speed applications.

Operating over a wide temperature range from -55°C to 110°C, it is designed to perform reliably even in demanding environmental conditions. The device exhibits a high current transfer ratio spanning from 200% minimum to 600% maximum, ensuring efficient signal transmission and robust operation.

Compliance with UL, EN, and CSA standards underscores its quality, safety, and reliability. The product is manufactured in Thailand, supporting consistent production quality and supply chain transparency.

This optocoupler is predominantly used in electronic components, power and connectors, and optoelectronics systems within industrial automation, consumer electronics, telecommunications, and power supply designs.

Provides electrical isolation with 5000 Vrms isolation voltage. Compact surface mount package type for easy PCB integration. Input characteristics include maximum forward voltage of 1.4V and maximum input current of 50mA.

Fast response times with typical rise time of 2 microseconds and typical fall time of 3 microseconds. Wide operating temperature range from -55°C to 110°C suitable for industrial applications. High current transfer ratio ranging from 200% minimum to 600% maximum ensures efficient signal transfer.

Complies with UL, EN, and CSA standards for safety and reliability. Manufactured in Thailand ensuring quality assurance and consistency. Explore more Toshiba Optocouplers and related electronic components on EnvMart for reliable industrial and electronic solutions.
