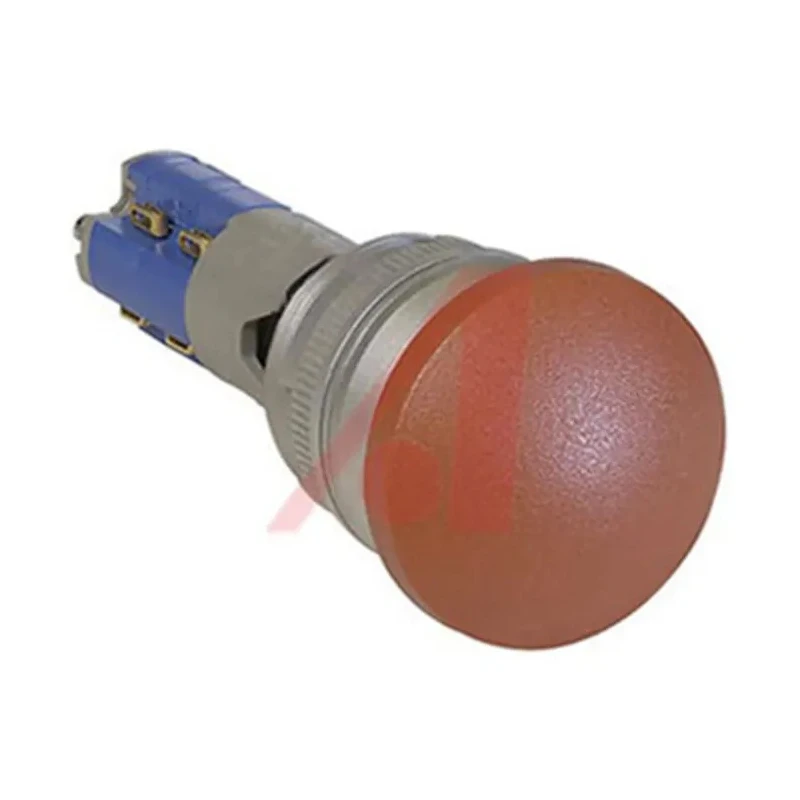

Johnson Electric TP4 Series Red Push Button Switch Latching Momentary Panel Mount 16.2 mm Cutout 1 NO/1 NC IP40 250 V

Johnson Electric TH414119RED is a robust and versatile push button switch from the TP4 Series, designed for both latching and momentary switch operations. This panel-mounted switch is engineered for industrial and commercial electrical and automation applications requiring dependable control in compact spaces.

The switch features a 16.2 mm panel cutout and a red actuator color for easy identification. It supports a single normally open (NO) and normally closed (NC) contact configuration, facilitating complex circuit control. Rated for contact voltages of 250 V AC and DC with a maximum switching current of 5 A, it offers reliable performance under common electrical loads.

With an IP40 rating, it is protected against solid objects larger than 1 mm, suitable for indoor environments where moderate dust protection is needed. Operating temperature ranges from -30°C to 120°C accommodate various industrial conditions. The switch uses screw terminals for secure wiring connections and supports panel thicknesses up to 7 mm with a depth of 44 mm behind the panel.

This TP4 Series switch is supplied with one contact block pre-fitted and allows expansion up to a total of three contact blocks for increased functionality. Its design includes two-part polycarbonate lenses with synthetic rubber sealing glands available separately for enhanced environmental protection. The switch complies with CSA and UL electrical safety standards, assuring reliability and safety for use in electrical panels, machinery controls, and automated systems.

Applications include industrial control panels, automation systems, HVAC controls, manufacturing equipment interface, and other electrical panel-mounted control points requiring a compact, durable push button switch with flexible configuration options.

Features a 16.2 mm panel cutout size suitable for compact installations. Incorporates 1 normally open and 1 normally closed contact configuration for reliable switching. Rated for 250 V AC/DC voltage and supports a 5 A contact current.

IP40 protection rating ensures resistance against solid objects and moderate protection from dust. Operates within temperatures ranging from -30°C to 120°C for diverse environments. Uses screw terminals for secure electrical connections.

Compact depth of 44 mm behind the panel with a maximum panel thickness of 7 mm. Designed with a red actuator color for high visibility without illumination. Supplied with one contact block, expandable up to three for additional customization.

Built to meet CSA and UL standards for quality and safety compliance. Explore the range of push button switches and electrical components on EnvMart for reliable panel and automation solutions.
