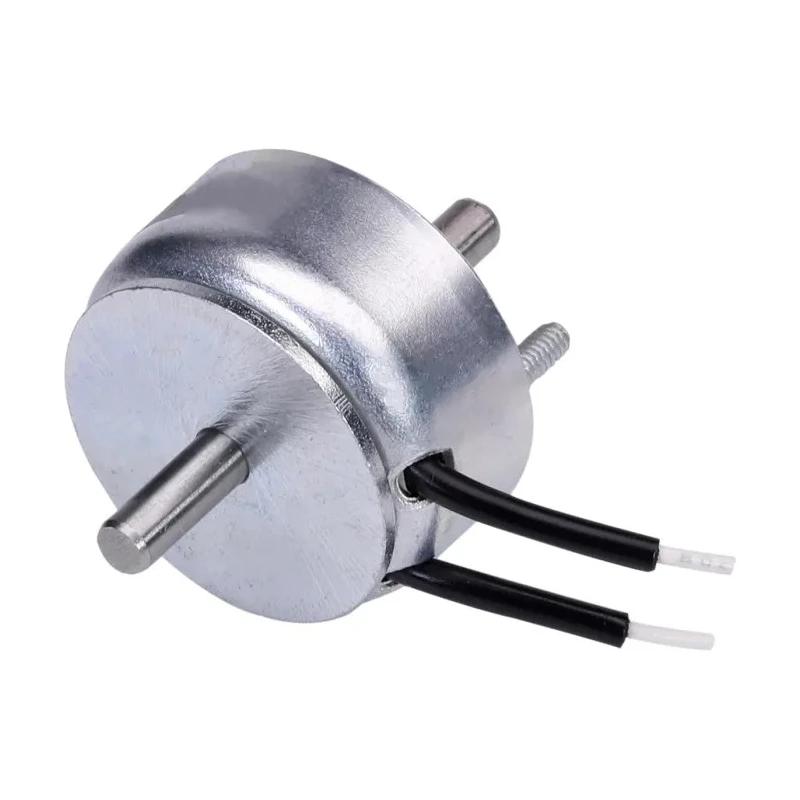

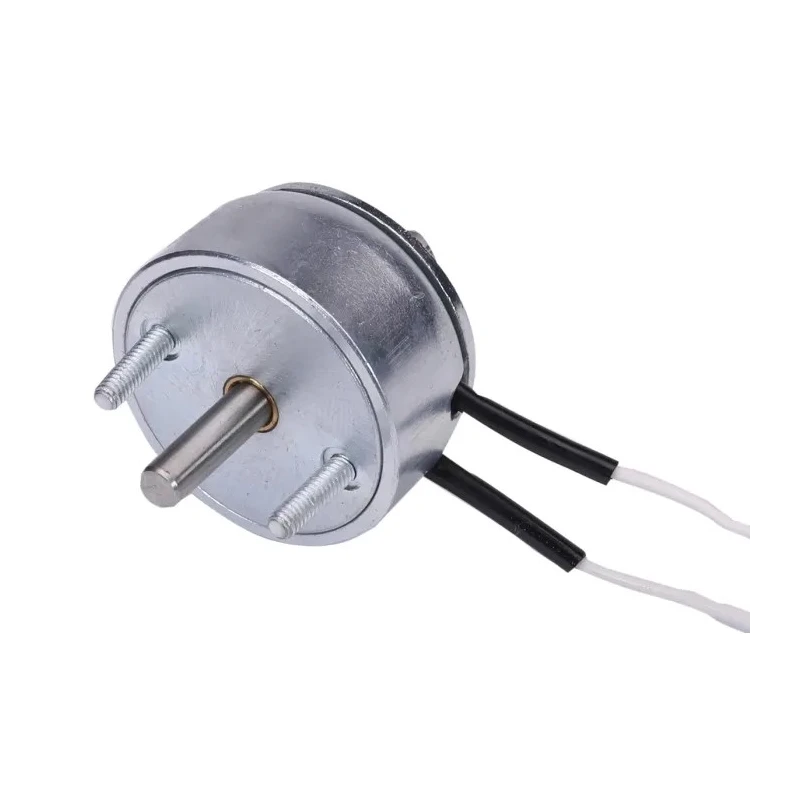

Johnson Electric Ledex Low Profile Linear Solenoid 28.575 mm 100% Duty Cycle 70W Continuous Power 123422-033

Johnson Electric 123422-033 Low Profile Linear Solenoid is engineered to provide extremely compact linear actuation with an optimized magnetic flux path for maximum force relative to stroke. The solenoid features a push pull action and a 100% duty cycle allowing continuous operation without performance degradation.

The solenoid is designed with an auxiliary flux path in the plunger assembly, significantly enhancing the magnetic force to 845 N over a stroke length of up to 18 mm. The coil resistance of 42.75 Ω supports a closed continuous power rating of 70 W, ensuring high reliability even in demanding industrial environments.

This linear solenoid’s compact length of 28.575 mm lends itself well to space-constrained applications such as pumps, packaging equipment, instrumentation, and testing machines. It is ideal for use in industrial automation, control gear, and other systems that require precise and powerful linear actuation.

The low profile design allows installation in tight spaces without compromising performance or force output. Compact low-profile linear actuator design. Push pull action with continuous 100% duty cycle. Maximum stroke of 18 mm for precise linear movement.

High magnetic force capability of 845 Newtons. Continuous coil power rating of 70 Watts for durable operation. 42.75 Ohm coil resistance ensuring efficient power usage. Length dimension of 28.575 mm suits confined spaces.

Reliable performance for industrial automation systems. Suitable for pumps, packaging, instrumentation, and testing use cases. Manufactured in the United States by Johnson Electric. Explore more products in the Linear Solenoids category to find solutions suitable for your automation and control requirements at EnvMart.
