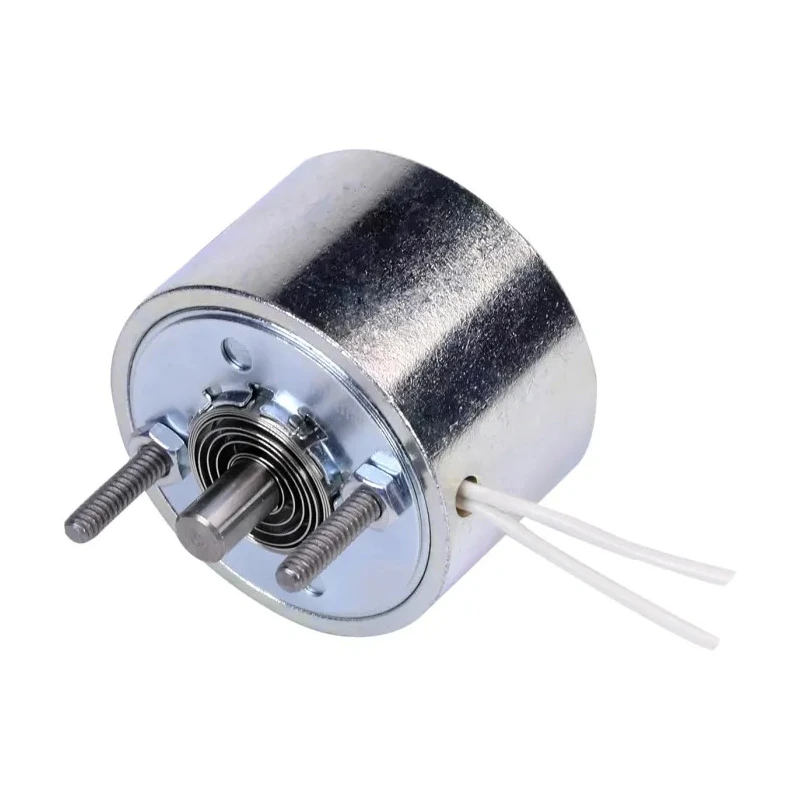

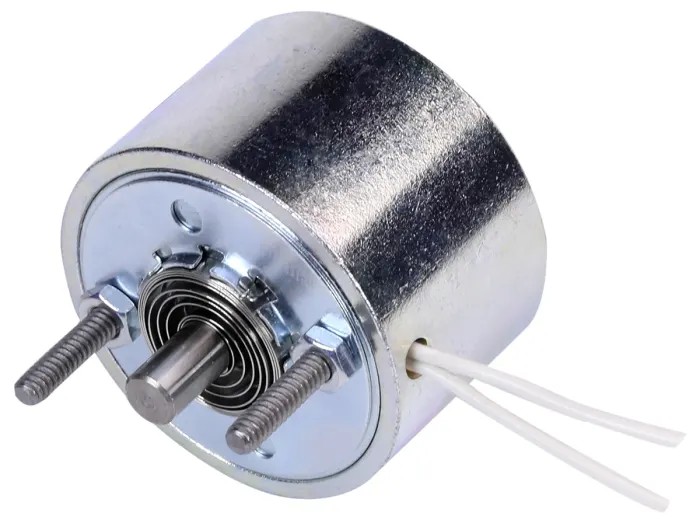

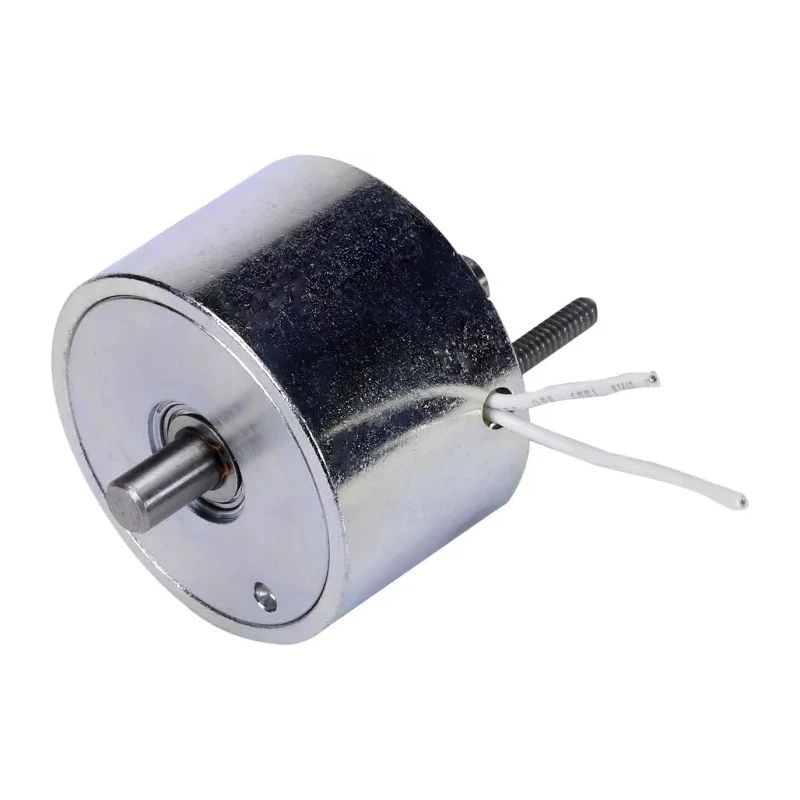

Johnson Electric Rotary Solenoid 30.2 mm Diameter 27.8V dc 40 W 25% Duty Cycle 195190-032

Johnson Electric 195190-032 rotary solenoid is a high precision actuator designed for industrial automation applications. It features a 30.2 mm diameter coil and operates on 27.8V dc with a closed power continuous rating of 40 watts. This rotary solenoid uses Johnson Electric's BTA actuator platform which employs a single-phase coil with three stator poles and a matching rotor pole, allowing a rotational stroke of up to 45 degrees. The design enables quiet and shock-free operation making it ideal for sensitive equipment requiring precise rotary motion.

The solenoid supports a 25% duty cycle, balancing power consumption and operational longevity. The coil resistance is specified at 19.26 ohms with wire gauge 32AWG, contributing to efficient energy use and consistent unit-to-unit performance. This device is completely enclosed to protect internal components and ensure durability in demanding industrial environments.

Control is facilitated through simple pulse width modulation, enabling both open or closed loop velocity and position control which optimizes stroke and torque capabilities. The absence of axial stroke and adaptability for closed-loop operation expands its use across various automation systems including manufacturing, laboratory instrumentation, HVAC, and water treatment plants.

With an expected lifetime exceeding 100 million cycles and manufactured in the United States, this rotary solenoid delivers industrial-grade reliability and consistent performance. Its compact form factor and superior energy efficiency make it suitable for integration into electrical automation, robotics, and precision control systems.

This rotary solenoid features a 30.2 mm diameter coil for compact rotary motion control. Operates at a continuous power of 40 watts ensuring robust performance. Designed for a 25% duty cycle to allow intermittent use with high reliability.

Coil resistance measures 19.26 ohms with a wire size of 32AWG. Manufactured in the United States ensuring strict quality standards. The actuator uses a BTA platform with three stator poles for precise positioning up to 45° stroke.

Offers quiet, shock-free operation suitable for sensitive industrial applications. Allows for open or closed loop velocity and position control using pulse width modulation. Durable construction provides over 100 million cycle life expectancy.
