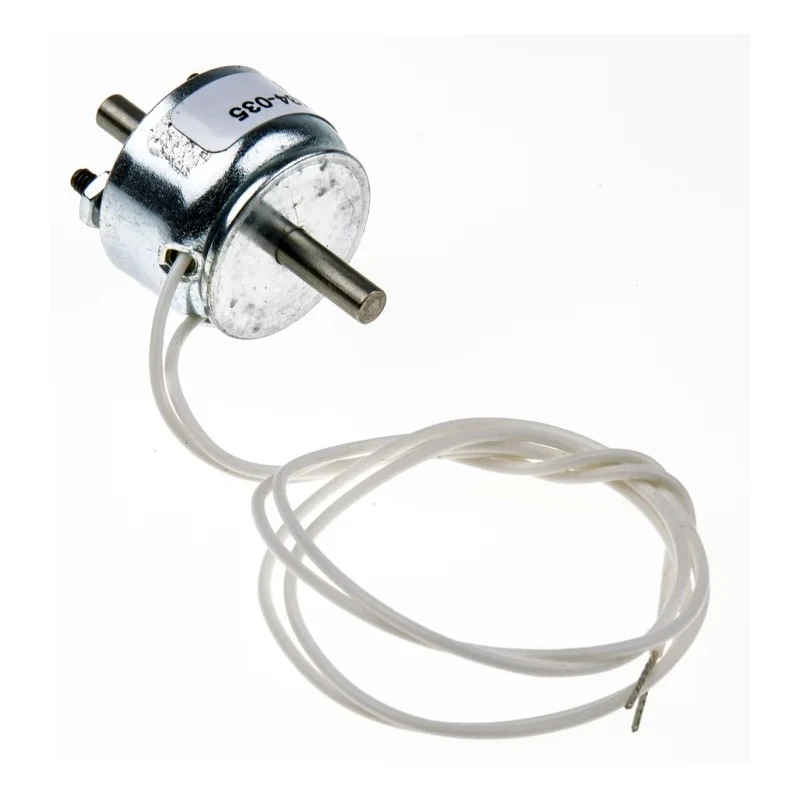

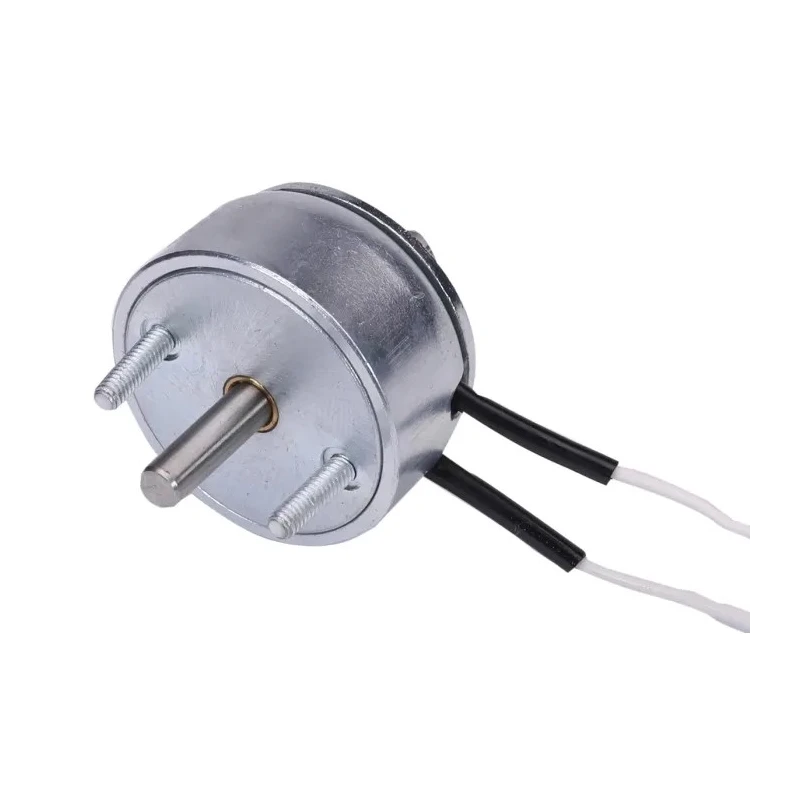

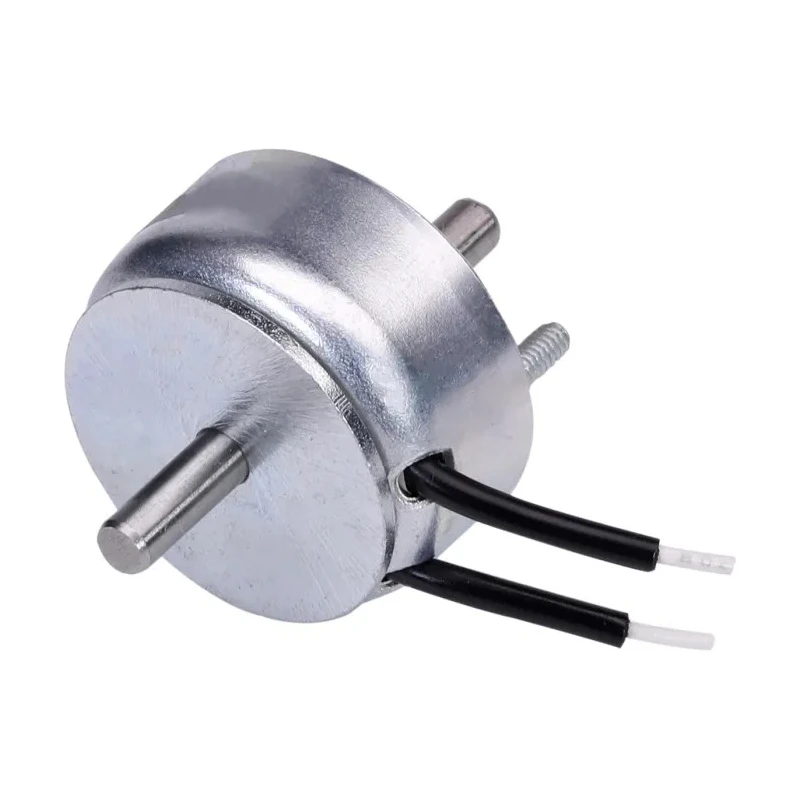

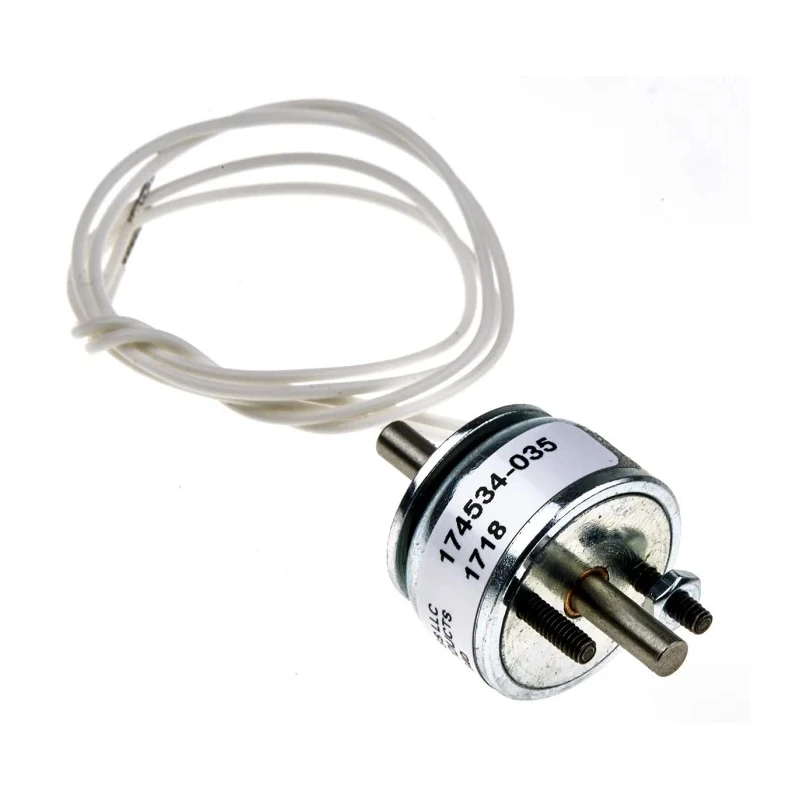

Johnson Electric Ledex Low Profile Linear Solenoid 28.575 mm 12.8 Vdc 4.5W Push Pull 174534-035

Johnson Electric 174534-035 Ledex Low Profile Linear Solenoid is a precision-engineered linear DC solenoid actuator designed to deliver reliable and consistent push-pull action. With a compact length of 28.575 mm, it is optimized to maximize magnetic flux path, generating a magnetic force of 845N and a maximum stroke length of 18mm. This solenoid consumes 4.5W at a supply voltage of 12.8 Vdc, featuring a coil resistance of 14.95 ohms that contributes to efficient electrical performance.

Its design includes a plunger assembly with an auxiliary flux path, significantly increasing the force output while maintaining a low profile. The solenoid supports a 100% duty cycle, enabling continuous operation without overheating or degradation. The product also offers a dielectric strength rated at 1000 VRMS, which enhances its reliability in demanding electrical environments.

This linear solenoid's holding force of 7.6N ensures stable operation during instrumental, pump, and testing system applications, where precise and dependable linear actuation is critical. The product is built to last, supporting long life operation under rigorous industrial and laboratory conditions.

Manufactured in the United States, this Johnson Electric solenoid meets high standards of quality and performance, making it suitable for automation systems, industrial instrumentation, and control gear. It is part of the Ledex Low Profile series known for its compact size and powerful actuation characteristics.

This solenoid operates at 12.8 Vdc with 4.5W power consumption. Push-pull action with 845N magnetic force and 18mm maximum stroke. Coil resistance is precisely 14.95 ohms for efficiency. Supports 100% duty cycle for continuous operation.

Dielectric strength rated at 1000 VRMS ensuring durability. Holding force of 7.6N secures component positioning. Compact length of 28.575 mm for space-constrained installations. Manufactured in the United States for assured quality.

This Johnson Electric Ledex Low Profile linear solenoid is widely used in industrial automation, electrical control, instrumentation, pumps, and testing equipment. Its powerful magnetic force combined with a compact profile makes it an ideal choice for applications requiring precise linear actuation under continuous duty conditions.
