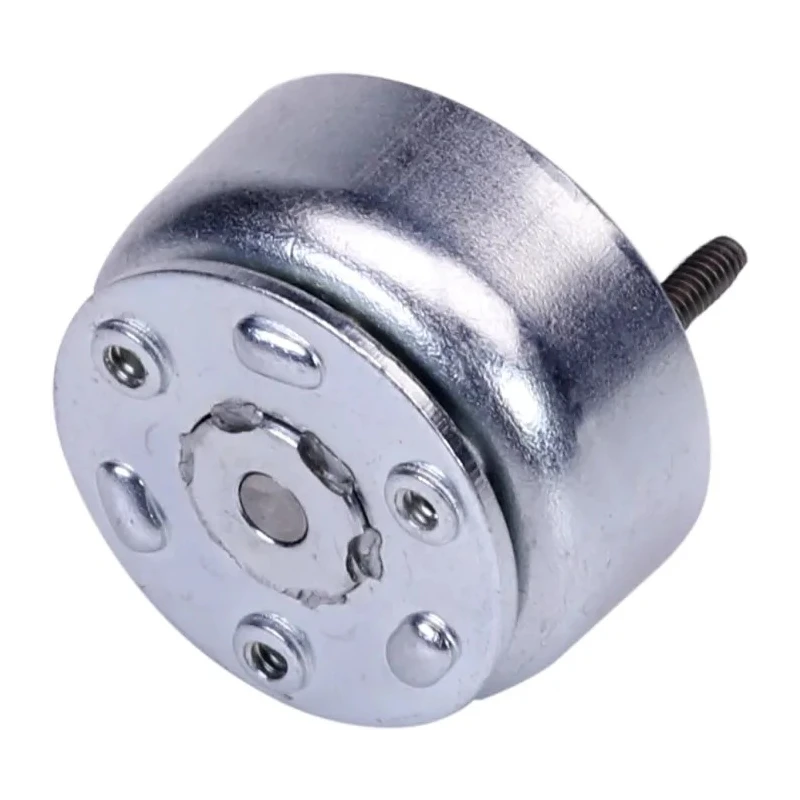

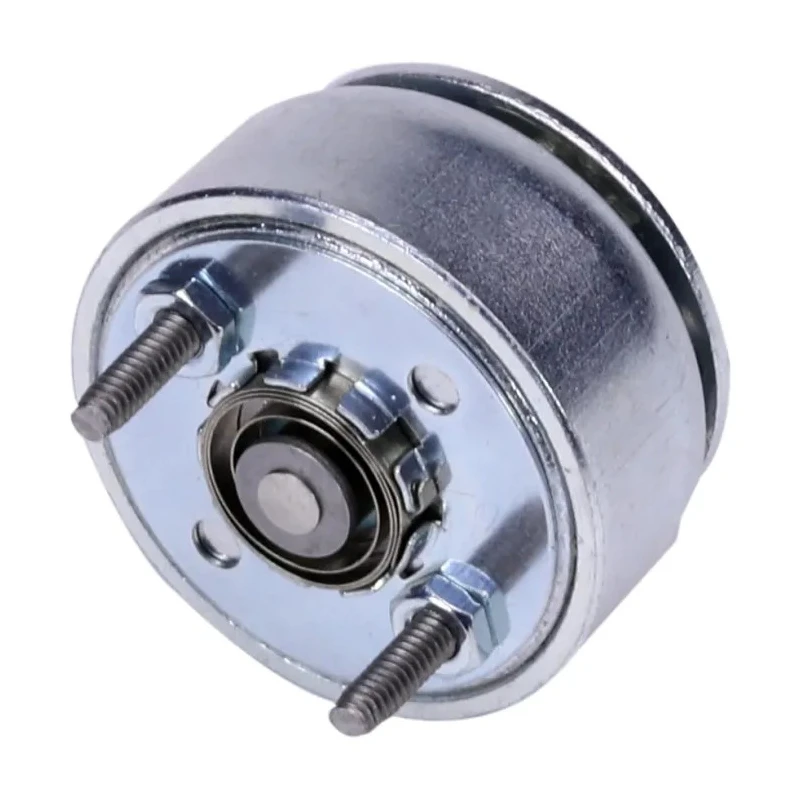

Johnson Electric 25 ° Rotary Solenoid 28.6 mm Diameter H-2346-032

Johnson Electric H-2346-032 rotary solenoid is an electromechanical actuator with a 25° maximum rotary stroke and a compact 28.6 mm diameter, designed for high-speed, precise rotary motion conversion. It uses three ball bearings traveling down inclined raceways that convert linear coil energizing force into rotational movement.

Featuring a robust design, this solenoid provides exceptionally long operating life, capable of withstanding up to fifty million cycles. The armature assembly moves toward the stator and rotates through the determined arc, making it suitable for high-duty industrial environments where durability and accuracy are required.

Measuring 25.83 mm in length and weighing just 56.7 grams, this rotary solenoid balances compactness with performance. It is equipped with 32 AWG wiring and belongs to the series 2E family, ensuring compatibility with a variety of control systems.

This product is well-suited for use in precise mechanisms such as door locking systems, vending machines, industrial automation controls, and medical diagnostic instruments. Its performance and reliability make it an excellent choice for demanding applications requiring rapid and repetitive actuation.

This solenoid converts linear force to rotary motion through ball bearing raceways. Capable of extreme high-speed actuation and long life operation. Compact size with 28.6 mm diameter and 25.83 mm length. Lightweight design at 56.7 grams supports easy integration.

Manufactured in the United States, series 2E, 32 AWG wiring specification. Explore the range of rotary solenoids from Johnson Electric to suit various industrial automation needs at EnvMart.
