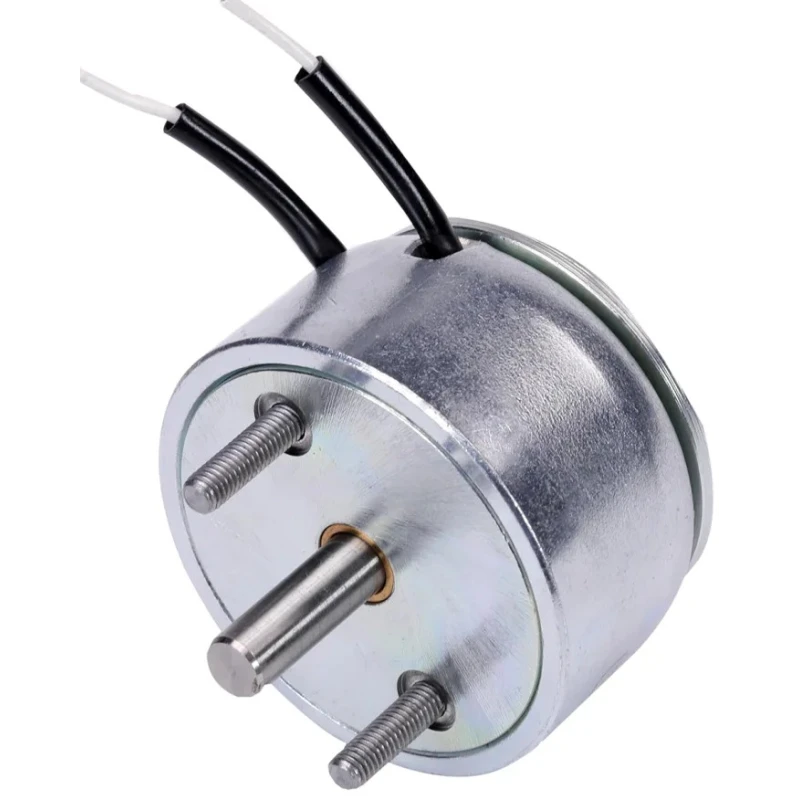

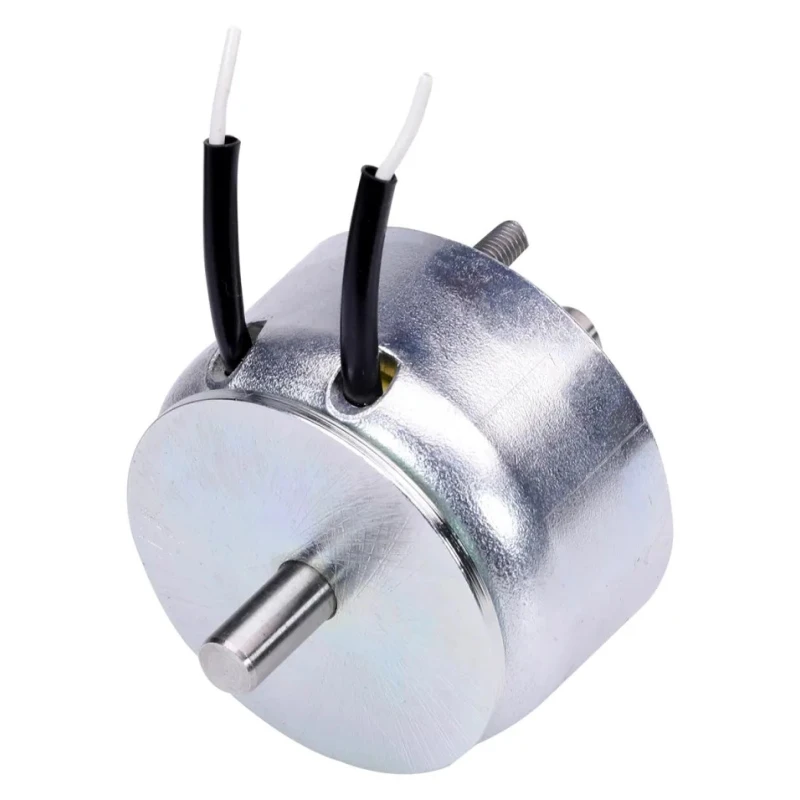

Johnson Electric Low Profile Linear Solenoid Push Pull Action 100% Duty Cycle 18mm Stroke 845N Magnetic Force 21W 129415-025

Johnson Electric 129415-025 Low Profile Linear Solenoid offers a compact design that optimizes the magnetic flux path to provide maximum force relative to stroke length. This linear solenoid features a push-pull action suitable for continuous duty cycle operation at 100%, with a maximum stroke length of 18 millimeters.

The solenoid delivers a powerful magnetic force of 845 newtons while consuming 21 watts of power when energized continuously. The coil resistance is measured at 6.66 ohms, contributing to the efficiency and stability of the unit during operation.

The construction includes an auxiliary flux path within the plunger assembly that significantly increases the actuation force. Its robust and reliable design makes it especially suitable for applications requiring consistent, high-force, short-stroke actuation such as in pump systems, packaging machinery, and instrumentation & testing equipment.

This low profile linear solenoid from Johnson Electric is designed for industrial and laboratory uses where space-saving configurations without compromising force output are critical. Manufactured in the United States, it meets stringent quality standards.

Compact low-profile design optimizes magnetic flux path for maximum force versus stroke. Push-pull action suitable for continuous 100% duty cycle. Maximum stroke length of 18 mm enabling precise control. Magnetic force output up to 845 newtons for powerful actuation.

Closed power continuous rating of 21 W for efficient operation. Coil resistance of 6.66 Ω ensures stable electrical characteristics. Auxiliary flux path in plunger assembly increases force output. Ideal for pumps, packaging equipment, and instrumentation applications.

This solenoid belongs to the Ledex Low Profile series from Johnson Electric, known for its high performance in a compact form factor. For buyers seeking reliable linear actuation solutions, this model provides an excellent balance of power, size, and durability. Explore more automation and control gear products from EnvMart’s comprehensive catalog.
