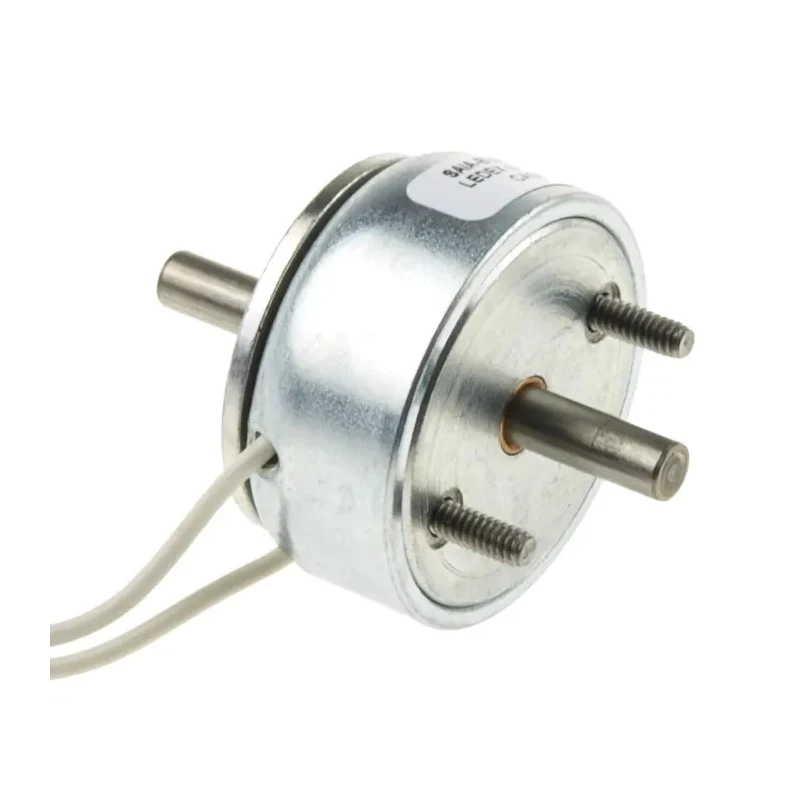

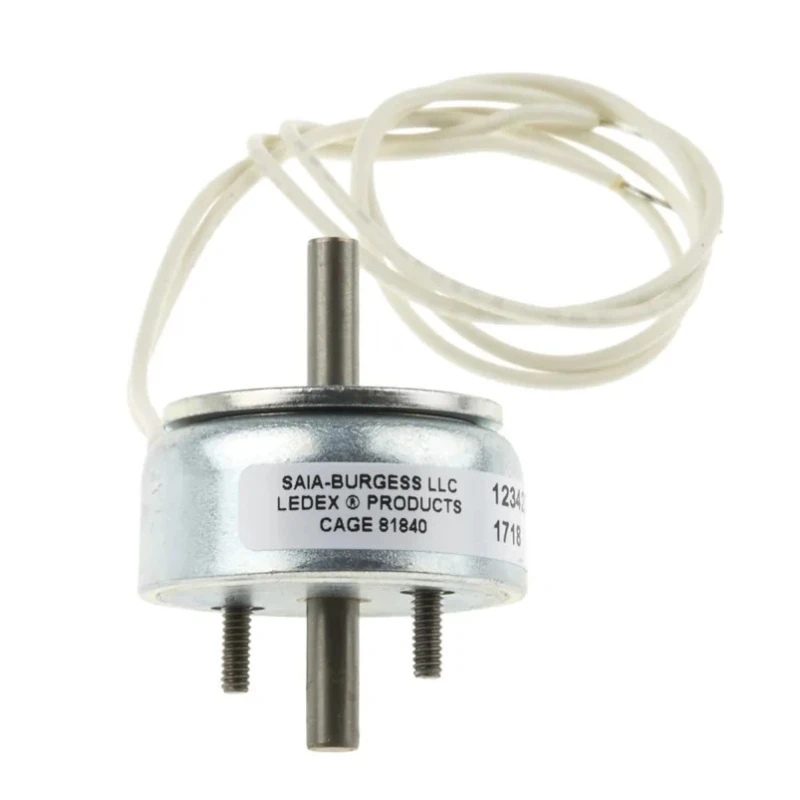

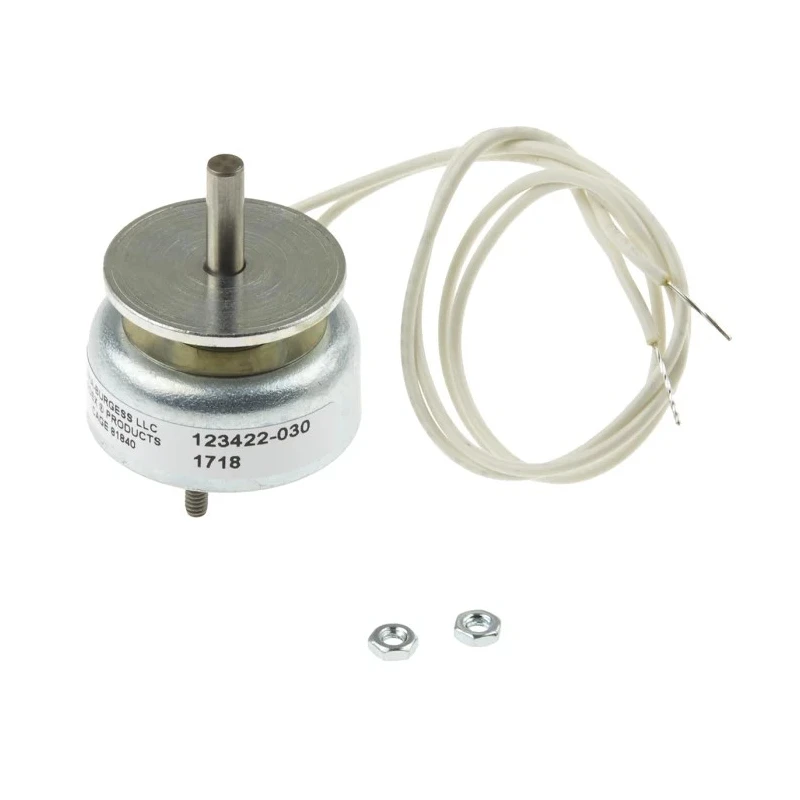

Johnson Electric Ledex Low Profile Linear Solenoid 28.575 mm 100% Duty Cycle 70W 18mm Stroke 123422-030
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Johnson Electric |
| Length | 28.575mm |
| Duty Cycle | 100% |
| Series | Ledex Low Profile |
| Action | Push Pull |
| Maximum Stroke | 18mm |
| Coil Resistance | 11.03Ω |
| Magnetic Force | 845N |
| Closed Power Continuous | 70W |
Key Features
- The solenoid features a push-pull action mechanism.
- It supports a maximum stroke length of 18 mm for precise movement.
- Produces a strong magnetic force of 845 N for robust actuation.
- Coil resistance is 11.03 ohms ensuring stable electrical performance.
- Designed for continuous operation with a closed power rating of 70 watts.
- Equipped with a dielectric strength of 1000 VRMS for electrical safety.
- Wire size used is 30 AWG ensuring compact coil design.
- Ideal for instrumentation, pumps, and testing equipment applications.
Product Description
Johnson Electric 123422-030 Ledex Low Profile Linear Solenoid is a high-performance linear DC solenoid actuator designed for industrial automation systems. With a compact length of 28.575 mm, this solenoid optimizes the magnetic flux path for maximum force and stroke characteristics, delivering a magnetic force of 845 N and a maximum stroke of 18 mm.

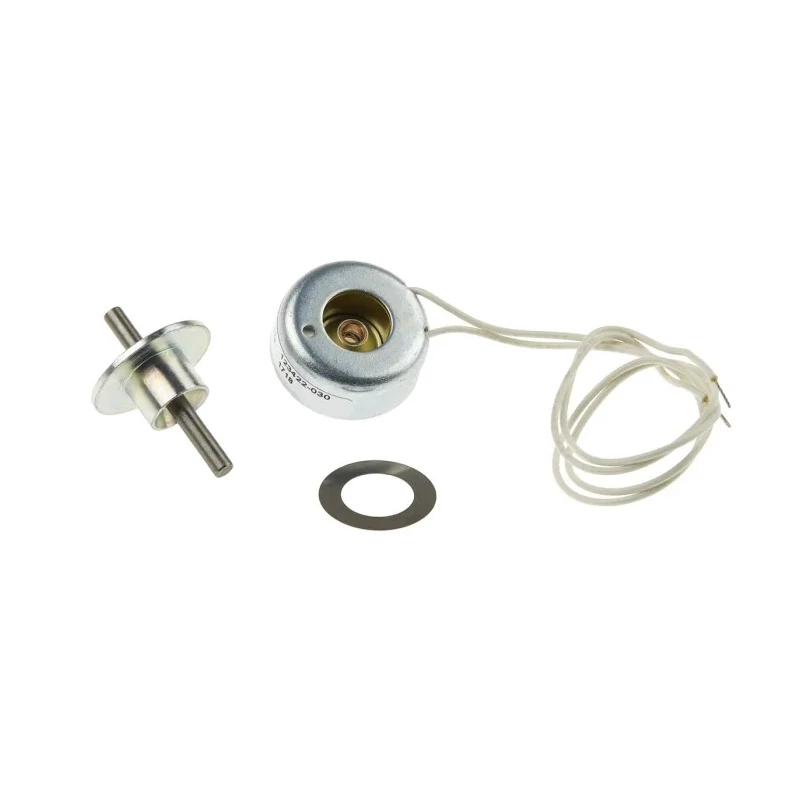

The solenoid supports continuous duty operation at 100% duty cycle, consuming 70 watts of power with a coil resistance of 11.03 ohms, ensuring reliable and long life operation. Its push-pull action and an auxiliary flux path in the plunger assembly enhance force output, making it suitable for precise linear actuation tasks.
Dielectric strength of 1000 VRMS provides electrical insulation safety, and coil wire size of 30 AWG supports compact design. The solenoid is ideal for instrumentation, packaging instruments, pumps, and various testing equipment requiring dependable actuation.
The solenoid has a push-pull action mechanism for comprehensive control. Maximum stroke length is 18 mm, allowing precise linear displacement. Magnetic force output is 845 N for powerful actuation. Power consumption rated at 70 W for continuous operation.
Coil resistance measured at 11.03 Ω to ensure stable current flow. Dielectric strength of 1000 VRMS enhances electrical safety. Wire gauge is 30 AWG, supporting compact coil construction. Long life operation suitable for demanding industrial environments.
Compact and low profile design enables integration in tight spaces. Explore our range of Linear Solenoids and industrial automation products at EnvMart for versatile and reliable solutions in automation and control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum stroke length of this solenoid is 18 mm, allowing for precise linear displacement during operation.
It produces a strong magnetic force of 845 N, which is suitable for robust actuation tasks.
This solenoid has a closed power rating of 70 watts, designed for continuous operation at a 100% duty cycle.
The coil resistance is measured at 11.03 ohms, ensuring stable electrical performance during operation.
It features a push-pull action mechanism, providing comprehensive control for various applications.
The solenoid is equipped with a dielectric strength of 1000 VRMS, enhancing electrical safety during operation.
The wire size used in the coil design is 30 AWG, which supports a compact coil construction.
The solenoid has a compact length of 28.575 mm, making it suitable for integration in tight spaces.
It is ideal for instrumentation, packaging instruments, pumps, and various testing equipment requiring dependable actuation.
The solenoid is manufactured in the United States, ensuring compliance with local standards.
This model belongs to the Ledex Low Profile series, known for its optimized magnetic flux path and performance characteristics.
Yes, it is designed for continuous operation with a 100% duty cycle, making it suitable for demanding industrial environments.
