| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | 744786118A |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | WE-MK |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ceramic |
| Inductance | 18nH |
| Package/Case | 0603 |
| Maximum DC Current | 400mA |
| Pin Count | 2 |
| Maximum DC Resistance | 550mΩ |
| Inductance Tolerance | ±0.05 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.2GHz |
| Minimum Quality Factor | 12 |
| Inductor Construction | Multilayer |

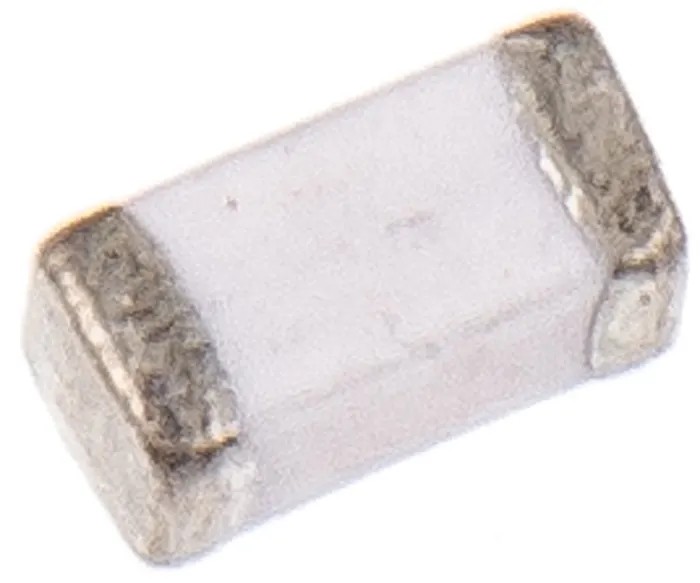

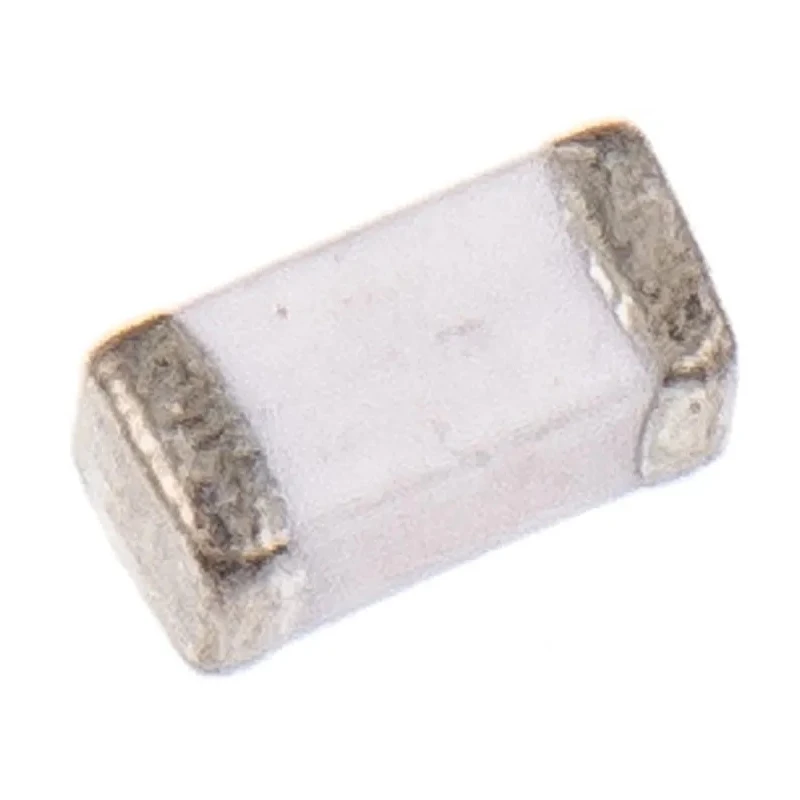

Wurth Elektronik 744786118A is a well-engineered 0603 series shielded multilayer ceramic surface mount inductor designed for high frequency electronic circuits including tuners, transponders, HF amplifiers, pagers, oscillators, laptops, PCMCIA cards, Bluetooth, and wireless LAN applications.
This surface mount inductor features an 18 nH inductance with a tight tolerance of ±0.05 %, ensuring precise performance in sensitive electronic circuits. It supports a maximum DC current rating of 400 mA and a low maximum DC resistance of 550 mΩ, contributing to overall circuit efficiency and reliability.
The compact 0603 package dimensions (1.6 mm length, 0.8 mm height and depth) are suitable for automated PCB assembly using tape and reel packaging. Designed with a ceramic core, the inductor ensures inductance stability over a wide temperature range from -55°C to 125°C. Its multilayer construction enables a high self-resonant frequency up to 2.2 GHz, making it suitable for RF and high-frequency applications.
The inductor's shielding reduces electromagnetic interference, improving circuit integrity. The surface mount termination style supports reflow or wave soldering, facilitating integration into modern manufacturing processes.
Compact 0603 size fits dense PCB layouts. Stable inductance with ±0.05 % tolerance over temperature. High self-resonant frequency up to 2.2 GHz. Shielded construction minimizes external interference. Ceramic core supports thermal and electrical stability.
Rated up to 400 mA DC current. Low DC resistance of 550 mΩ enhances efficiency. Tape and reel packaging for automated assembly. Surface mount termination compatible with standard soldering techniques. High quality factor of 12 ensures performance in RF circuits.
This Wurth Elektronik surface mount inductor series is well suited for industrial, telecommunications, computing, and wireless applications where precision and reliability are critical. It complies with manufacturing standards but does not include specific automotive or other certifications.
Explore more Inductors and surface mount components in the Electronics & Electricals category on EnvMart for your next high-frequency circuit design project.
