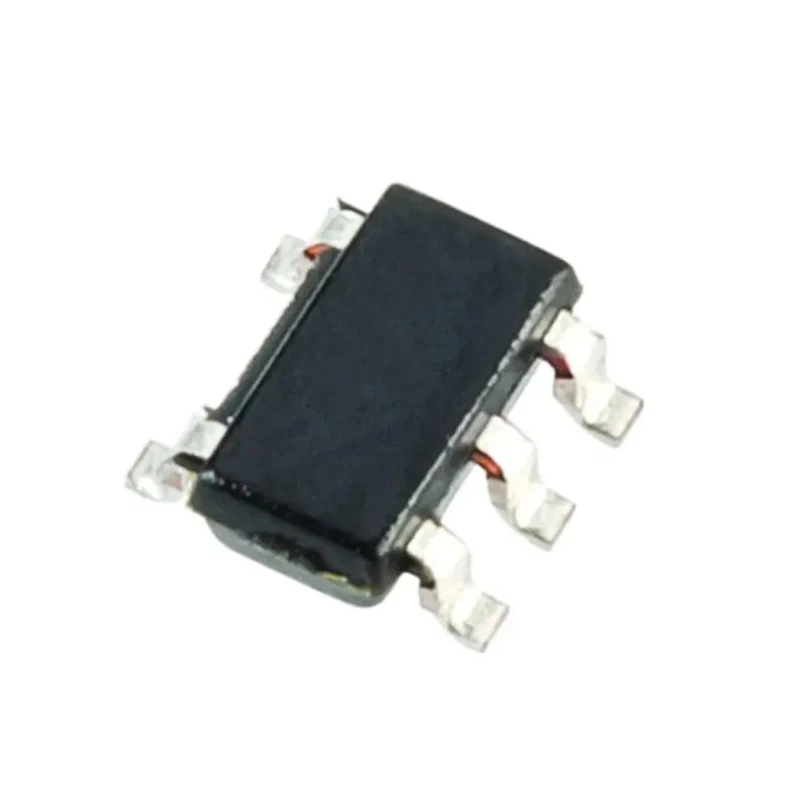

STMicroelectronics Operational Amplifier, 12 MHz Gain Bandwidth, 5-Pin Surface Mount SOT-23 Package TS971ILT

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Operational Amplifier, 12 MHz Gain Bandwidth, 5-Pin Surface Mount SOT-23 Package TS971ILT

Name: STMicroelectronics Operational Amplifier, 12 MHz Gain Bandwidth, 5-Pin Surface Mount SOT-23 Package TS971ILT
Brand: STMicroelectronics
SKU: 384640
Price: 1.32 USD
Availability: InStock



Category Operational Amplifier Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.3mm
Length	3mm
Model	TS971ILT
Width	1.75mm
Mount Type	Surface
Series	TS971
Output Current	1.5mA
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	RoHS
Pin Count	5
Automotive Standard	AEC-Q100
Maximum Supply Voltage	10V
Minimum Supply Voltage	2.7V
GBP - Gain Bandwidth Product	12MHz
Input Bias Current	1000 nA
Vos - Input Offset Voltage	7 mV
Slew Rate	4V/μs
Input Offset Current	150 nA
Low distortion	0.003%
Low noise level	4 nV/√Hz
High dynamic features	12 MHz, 4 V/μs

Key Features

Operates with supply voltages from 2.7 V to 10 V.
Offers low input bias current of 1000 nA.
Input offset voltage is 7 mV providing precise performance.
Slew rate of 4 V per microsecond ensures fast response times.
Wide operating temperature range from -40°C to 125°C.
Single channel design with 1.5 mA output current capability.
Low noise output at 4 nV per root Hz supports sensitive circuits.
Low distortion rate of 0.003% for high-fidelity amplification.

Product Description

The STMicroelectronics TS971ILT operational amplifier is a precision semiconductor device designed for signal amplification in various electronic applications. Featuring a gain bandwidth product of 12 MHz and a slew rate of 4 V/μs, it delivers high dynamic response and stable operation in compact SOT-23 plastic surface mount package with 5 pins.

Its low input bias current of 1000 nA and low offset voltage of 7 mV enable sensitive and accurate analog signal processing. The device supports supply voltages from 2.7 V to 10 V making it ideal for battery-powered and portable equipment.

Operating across a broad temperature range from -40°C to 125°C ensures reliable performance in harsh industrial and automotive environments. This single-channel amplifier offers an output current of 1.5 mA and features low noise output level of 4 nV/√Hz along with extremely low distortion at 0.003%, making it suitable for audio, sensor interface, and instrumentation applications.

Dimensions measure 3 mm length, 1.75 mm width, and 1.3 mm height, fitting compact PCBs. The TS971ILT device conforms to RoHS standards and is automotive qualified under AEC-Q100 for enhanced system reliability.

Operates at supply voltages between 2.7 V and 10 V. Low input bias current minimizes power consumption. Extremely low offset voltage ensures signal accuracy. Slew rate supports rapid changes in input signal. Wide temperature range suitable for industrial uses.

Single channel amplifier for diverse applications. Low noise and distortion optimize signal integrity. Compact SOT-23 package supports high-density PCB layouts. Meets automotive quality standards for robust usage. Compliant with environmental regulations such as RoHS.

This operational amplifier is suited for industrial electronics, automotive systems, audio processing, instrumentation, and portable device circuits. For enhanced design reliability, incorporate the TS971ILT in applications requiring low noise, low distortion, and compact form factor solutions.
