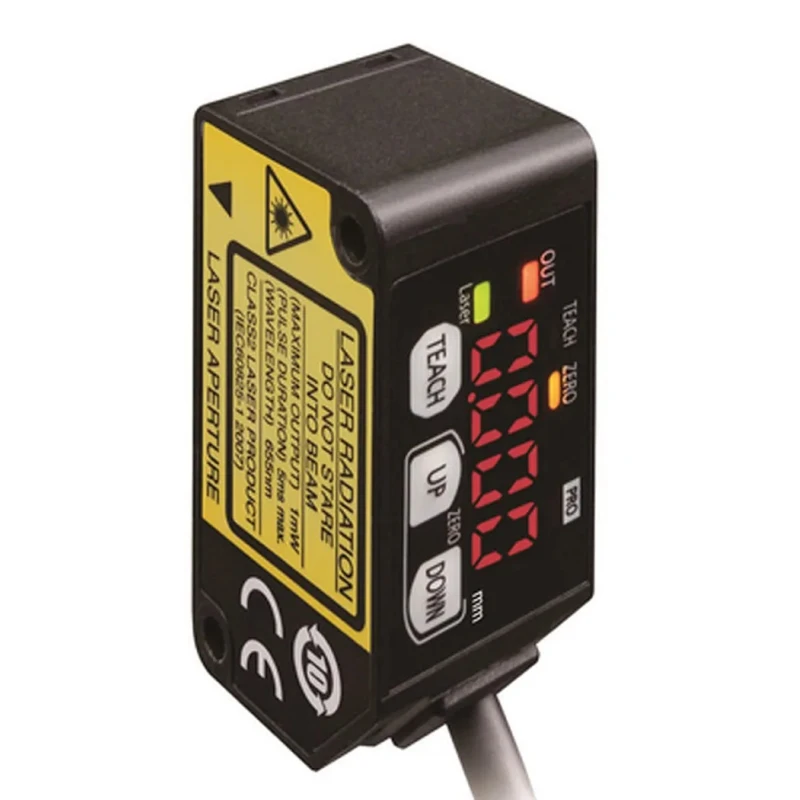

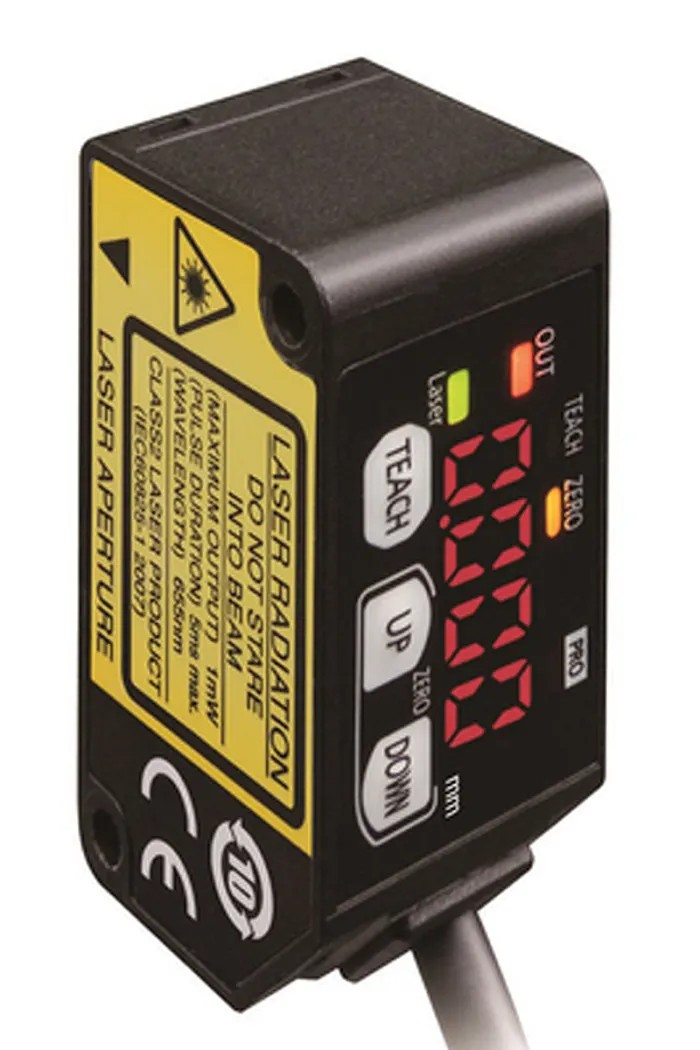

Panasonic Background Suppression Distance Sensor, Block Sensor, 30 mm, NPN Output, IP67, Laser Light Source HG-C1030

Panasonic HG-C1030 background suppression distance sensor is a block style sensor designed for high-precision detection at a range of 30 mm. It features an NPN output and a robust IP67-rated housing made from die cast aluminium and acrylic, ensuring durability in industrial environments. The sensor operates on a maximum DC voltage of 24 V with a current rating of 50 mA and supports temperature ranges from -10°C to 45°C.

This sensor employs a laser light source to provide accurate analog output voltage between 0-5 V, which can be interfaced with PLC analog units for precise data processing and storage. The response time is configurable between 1.5 ms and 5 ms to accommodate different automation requirements. Mounting is accomplished via flange type for stable attachment in varied setups.

Certified under EMC Directive and FDA standards, the HG-C1030 sensor guarantees compliance and reliability. It is ideal for detecting chips, circuit board warpage, bottle or label descriptions, and pill or tube detection, among other applications in industrial automation, electronics manufacturing, and quality control processes.

This sensor features a block sensor style for reliable operation. Equipped with a laser light source for high-precision measurement. IP67 rated for robust protection against dust and water ingress. Operating temperature ranges from -10°C to 45°C for versatile environments.

Maximum DC voltage rating is 24 V while supporting a maximum current of 50 mA. Housing made of die cast aluminium and acrylic ensuring durability. Flange mount type enables secure and stable installation. Response time options of 1.5 ms or 5 ms suit various automation speeds.

Complies with EMC Directive and FDA standards for safety and quality. Suitable for applications including chip detection, circuit board warpage detection, and bottle or pill detection.

Manufactured in China, this sensor is part of the Panasonic HG-C series, known for compact, lightweight, and high-performance distance sensing solutions. Explore Panasonic and related photoelectric Sensors on EnvMart for comprehensive industrial automation offerings.
