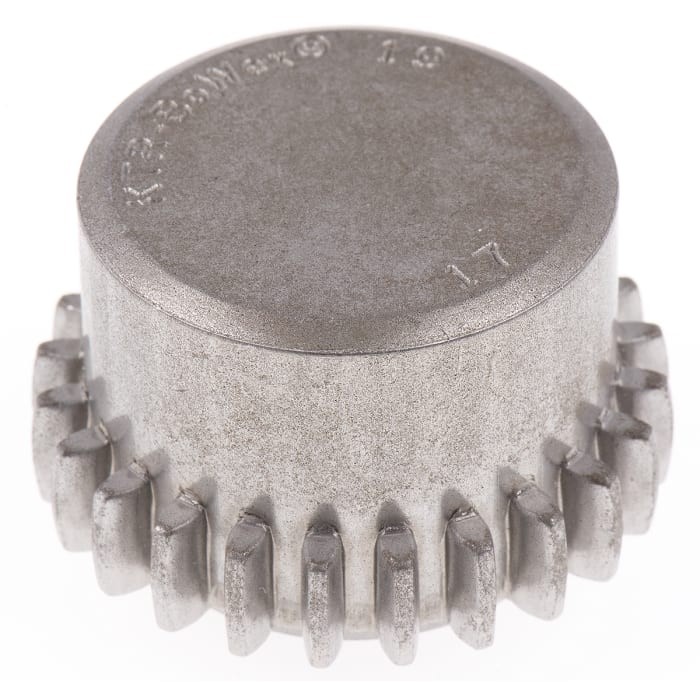

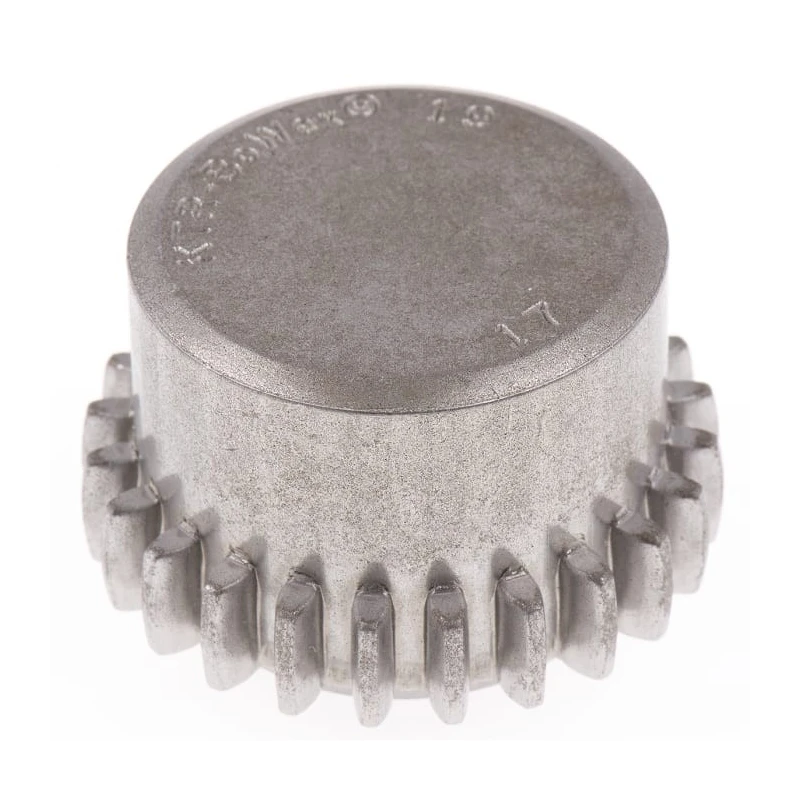

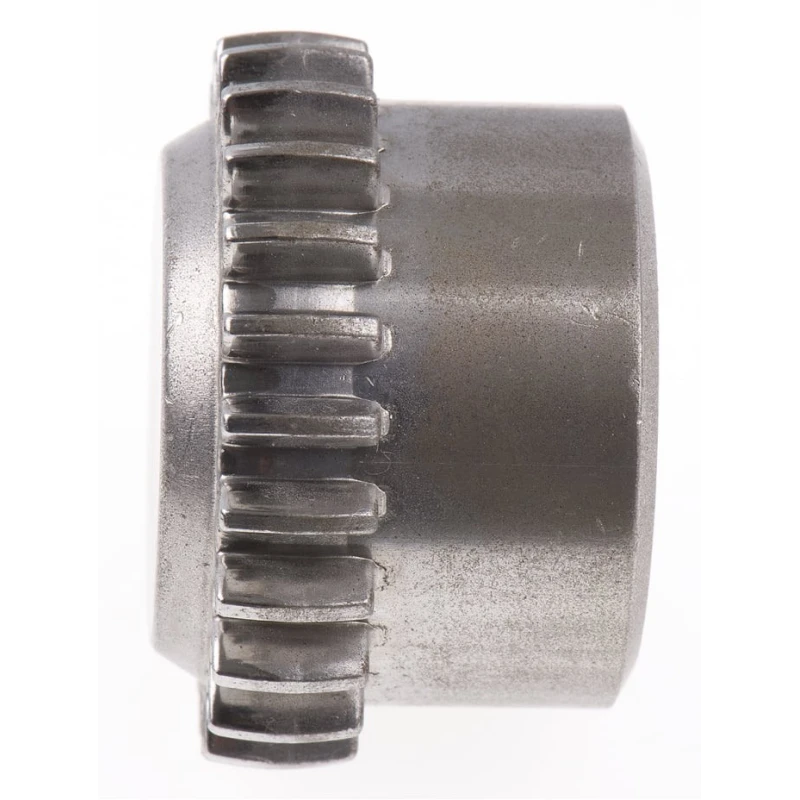

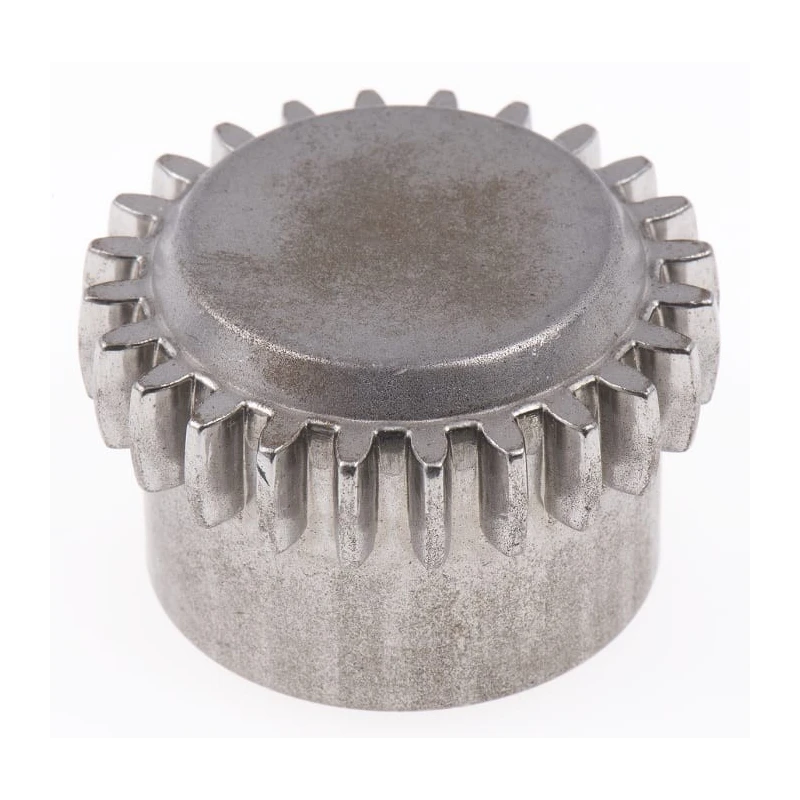

KTR Steel Flexible Coupler 25 mm Outside Diameter 14 mm Bore Pilot Bore BoWex Series, Maximum Speed 6000rpm BOWEXM14-HUB-PB

KTR BOWEXM14-HUB-PB Steel Flexible Coupler features a 14 mm pilot bore and 25 mm outside diameter designed for mechanical power transmission in industrial machinery. With its BoWex curved-tooth gear coupling technology, it delivers positive torque transmission while compensating for axial, radial, and angular misalignments effectively.

The steel construction combined with a polyamide sleeve ensures maintenance-free, low-friction operation that resists wear typical in dry running conditions. The coupling can accommodate angular misalignment up to 0.7 degrees and parallel misalignment up to 0.2 mm without generating periodic fluctuations in angular velocity.

Rated for speeds up to 6000 rpm and torque up to 30 Nm, this coupler is torsionally rigid, ensuring efficient power transfer. It is capable of operating at temperatures up to 100° Celsius and is resistant to various industrial fluids like lubricants, fuels, and hydraulic fluids, making it suitable for applications in food processing, chemical, pharmaceutical industries, printing, textile, sewage technology, and offshore units.

The BoWex series enables easy assembly in both vertical and horizontal orientations without special tools. It complies with EC directive 94/9/EC ATEX safety standards and originates from Germany, guaranteeing strict quality control and durability.

The hub is supplied unbored to allow custom machining for precise fit within coupling parameters. This coupler is especially useful in applications demanding flexible, maintenance-free coupling solutions with reliable performance under harsh conditions.

Constructed from premium steel material with BoWex curved-tooth gear coupling design. Maintenance-free operation with nylon-steel material combination for low wear and friction. Accommodates axial, angular, and radial misalignment effectively.

Rated for maximum speed of 6000 rpm and torque of 30Nm for industrial machinery use. Suitable for harsh environments and resistant to lubricants and chemicals. Compliant with EC directive 94/9/EC March 23 ATEX standards for safe usage.

Originates from Germany ensuring high quality manufacturing standards. Easy vertical or horizontal installation without special tools. Designed to reduce edge pressure in splines preventing premature wear.

This product is categorized under Flexible Couplers for Mechanical Machinery & Spares. Explore the EnvMart catalog for high-quality power transmission components designed for industrial and manufacturing applications.
