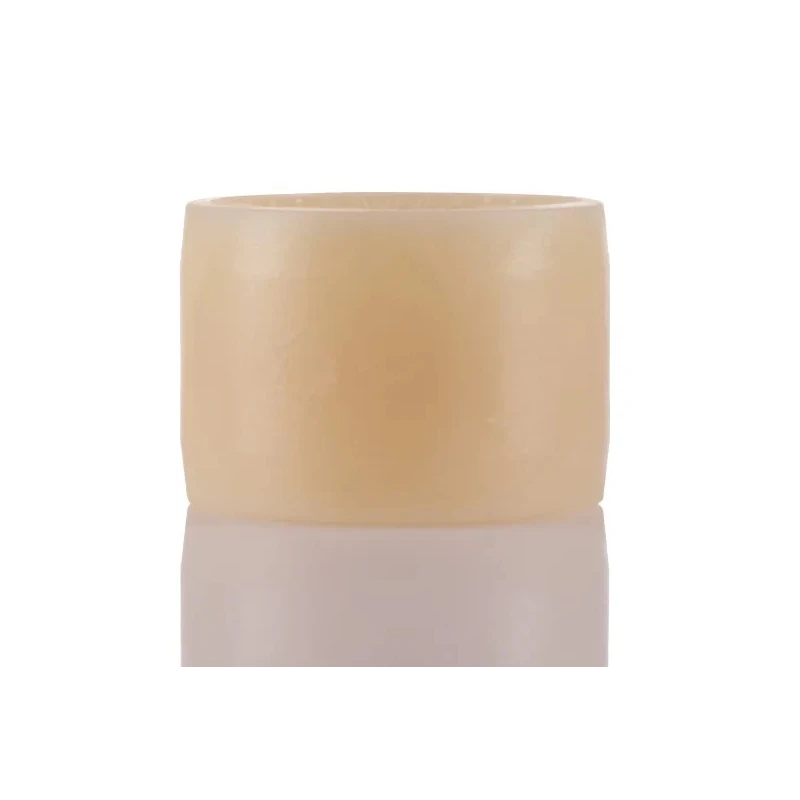

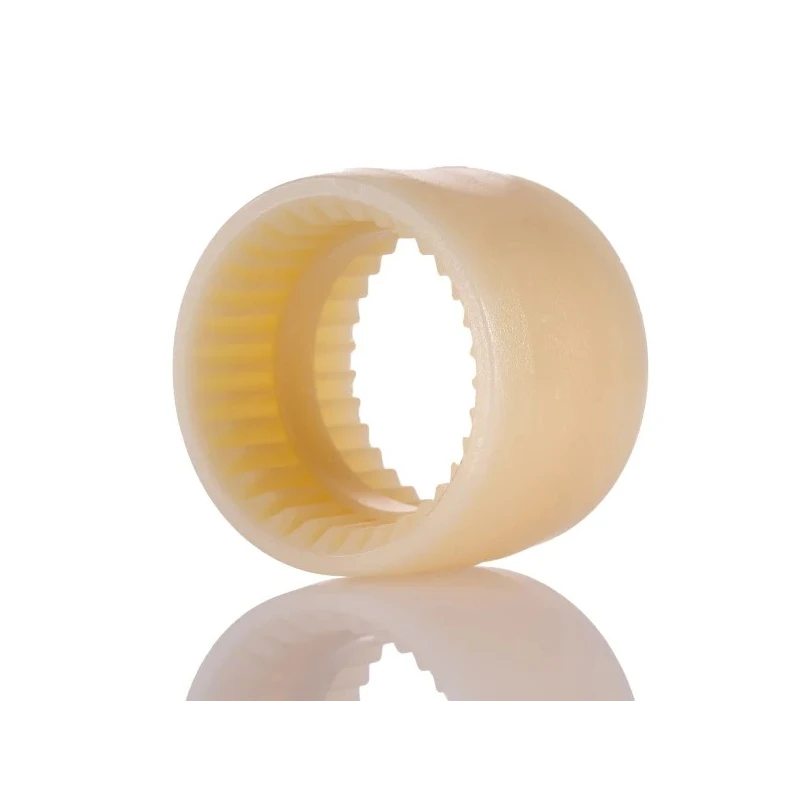

KTR 65 mm Outer Diameter, 46 mm Length Polyamide Flexible Coupler BOWEXM28-SLEEVE-PB

Free Delivery in India | Lowest Global Shipping Charges

KTR 65 mm Outer Diameter, 46 mm Length Polyamide Flexible Coupler BOWEXM28-SLEEVE-PB



Category Flexible Coupler Brand KTR Condition New

Specifications

Country of Origin	Germany
Brand	KTR
Material	Polyamide
Length	46mm
Model	BOWEXM28-SLEEVE-PB
Series	BoWex
Standards/Approvals	EC directive 94/9/EC dated March 23, 1994, ATEX

Key Features

BoWex curved-tooth gear coupling sleeve for positive torque transmission.
Constructed with polyamide material and steel hubs for low friction and maintenance-free use.
Operates without lubrication, avoiding wear even under dry running conditions.
Compensates for shaft misalignment while preventing edge pressure and wear.
Resistant to lubricants, fuels, hydraulic fluids, solvents, and harsh environments.
Suitable for vertical or horizontal assembly without special tools.
Maximum operating temperature of 100°C supports demanding industrial applications.
Commonly used in food, print and paper, textile, sewage, chemical, pharmaceutical, and offshore industries.

Product Description

KTR BOWEXM28-SLEEVE-PB Polyamide Flexible Coupler features a 65 mm outer diameter and 46 mm length, designed as part of the BoWex series curved-tooth gear couplings. These couplings provide flexible shaft connections that enable positive torque transmission while compensating for axial, radial, and angular shaft misalignments.

The coupling sleeve is made from polyamide combined with steel hubs, creating a maintenance-free solution with low friction. Unlike metallic materials that corrode during dry running, this nylon/steel combination allows lubrication-free operation, significantly reducing wear over time.

Thanks to double cardanic operation, restoring forces during angular and radial displacements are negligible, preventing periodic fluctuations in angular velocity. Couplings can be installed vertically or horizontally without requiring special assembly tools, streamlining installation and maintenance.

The polyamide sleeve features a smooth, hard surface with excellent thermal stability up to 100°C. It also offers resistance to lubricants, fuels, hydraulic fluids, and solvents, making it suitable for harsh and aggressive environments.

BoWex curved-tooth gear coupling sleeve provides torsionally rigid, low-wear shaft connection. Polyamide material combined with steel hubs ensures maintenance-free operation. Compensates for axial, angular, and radial misalignments reliably.

Suitable for applications in food, print and paper, textile, sewage technology, and chemical industries. Operates without lubrication, preventing corrosion and wear under dry conditions. Can be assembled easily without special tools as vertical or horizontal configurations.

High resistance to chemicals and mechanical stress for demanding industrial use. Consists of three components sold separately: two hubs and one sleeve for flexible configuration.

This product originates from Germany and adheres to EC directive 94/9/EC and ATEX standards, ensuring compliance with safety and material quality requirements. It is widely used in industrial, manufacturing, and mechanical tooling setups requiring reliable and flexible power transmission couplings.
