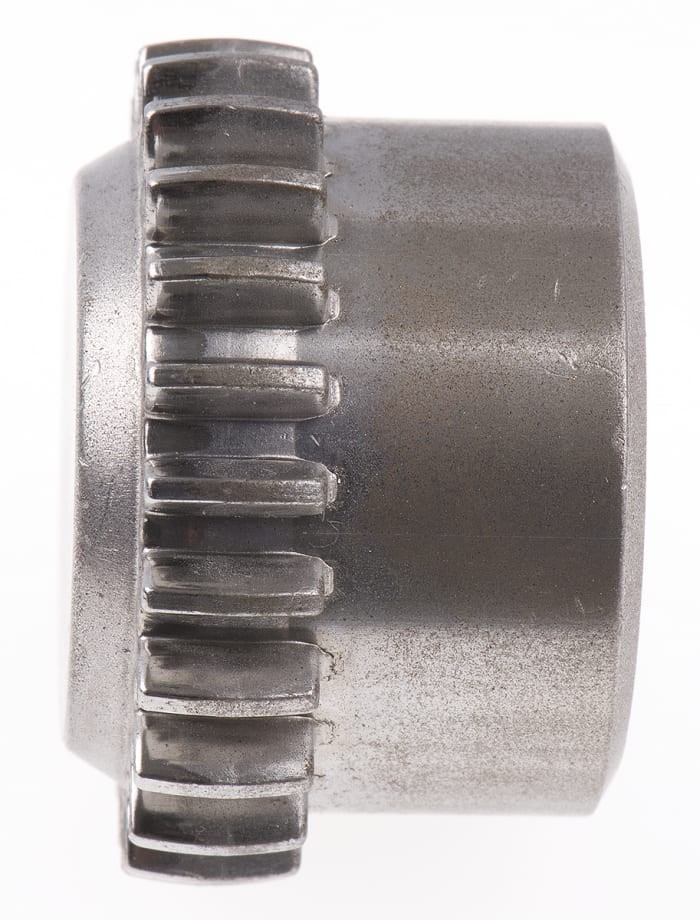

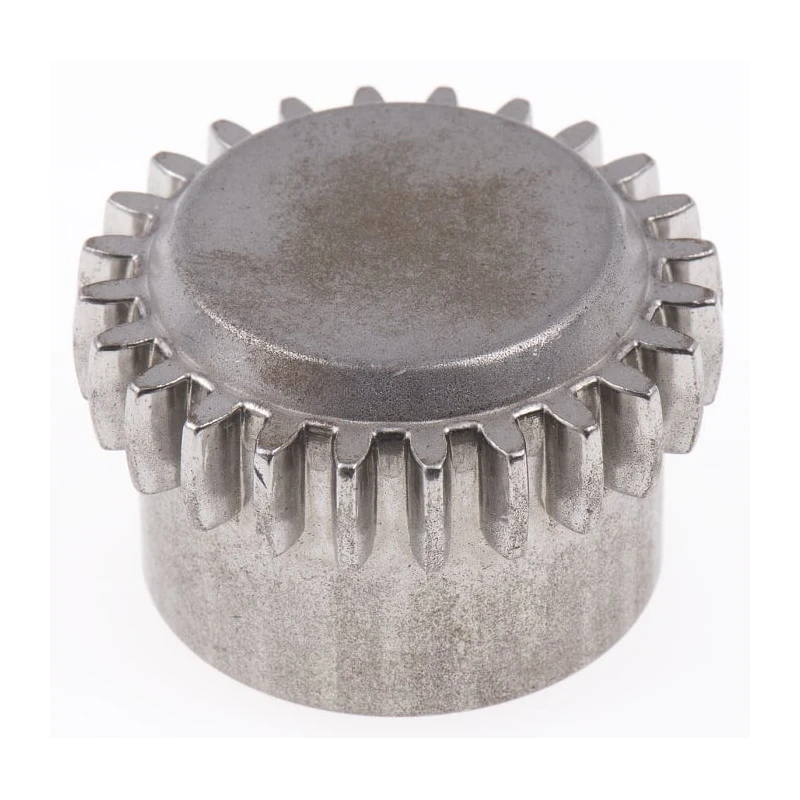

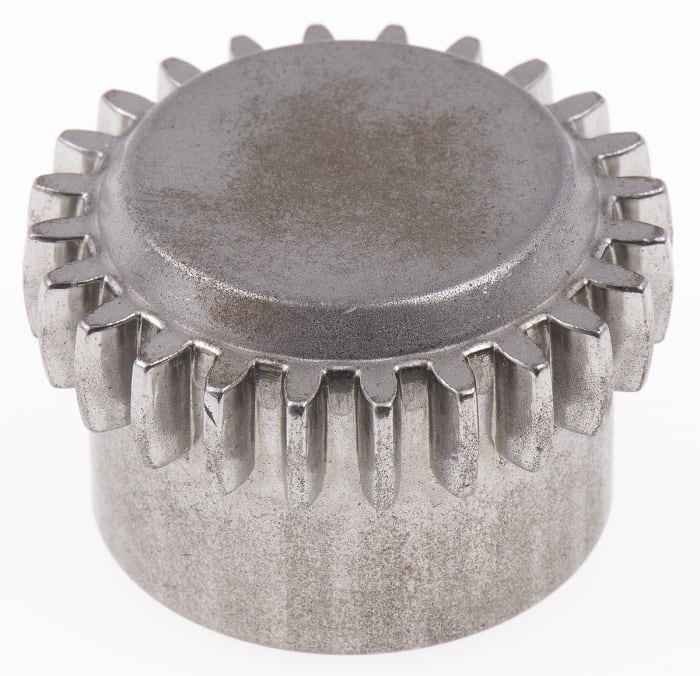

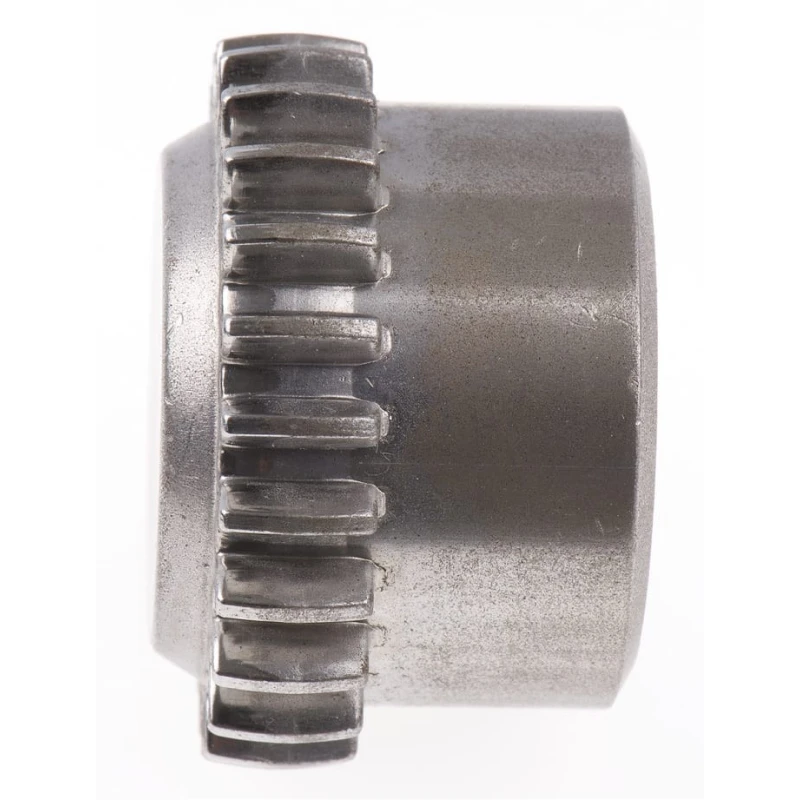

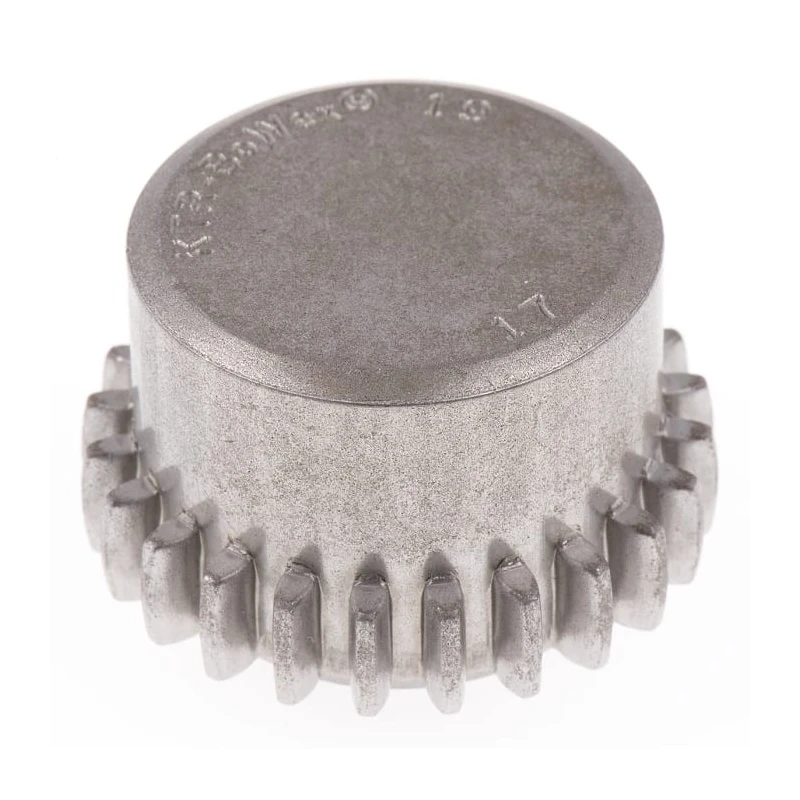

KTR 68 mm OD Steel Stainless Steel Polyamide Nylon Flexible Coupler BOWEXM48-HUB-PB
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | KTR |
| Material | Steel, Stainless Steel, Polyamide, Nylon |
| Model | BOWEXM48-HUB-PB |
| Maximum Speed | 6000rpm |
| Series | BoWex |
| Outside diameter | 68mm |
| Torque Rating | 420Nm |
| Misalignment - Angular | 0.6° |
| Misalignment - Parallel | 0.25mm |
Key Features
- BoWex M Tooth Gear Coupling Hub designed for positive torque transmission.
- Maintenance free operation due to steel and polyamide material combination.
- Supports axial, radial, and angular shaft misalignment compensation.
- Maximum speed rated at 6000 rpm with torque rating of 420 Nm.
- Ideal for use in aggressive environments including chemicals and offshore units.
- Operating temperature up to 100° Celsius with high thermal stability.
- Meets stringent standards including ISO 16016 and EC Directive 94/9/EC (ATEX 95).
- Supplied unbored to be machined to finish by the customer.
Product Description
KTR BOWEXM48-HUB-PB flexible coupler is a high-performance BoWex curved-tooth gear coupling hub with a 68 mm outside diameter, constructed from steel, stainless steel, polyamide, and nylon materials. It provides precise, positive torque transmission while compensating for axial, radial, and angular shaft misalignment, making it a reliable choice for mechanical power transmission applications.
The BoWex design avoids edge pressure and wear on teeth, ensuring a long maintenance-free service life. The combination of steel hubs with polyamide sleeves delivers low friction operation without the need for lubrication, even under dry running conditions. The coupling’s double cardanic operation minimizes restoring forces during angular and radial displacements, which also prevents periodic fluctuations in angular velocity.
Rated for a maximum speed of 6000 rpm and torque of 420 Nm, this coupler supports angular misalignment up to 0.6° and parallel misalignment up to 0.25 mm. It operates efficiently at temperatures up to 100° Celsius and withstands exposure to lubricants, fuels, hydraulic fluids, chemicals, and other aggressive media, making it suitable for use in diverse industrial environments.

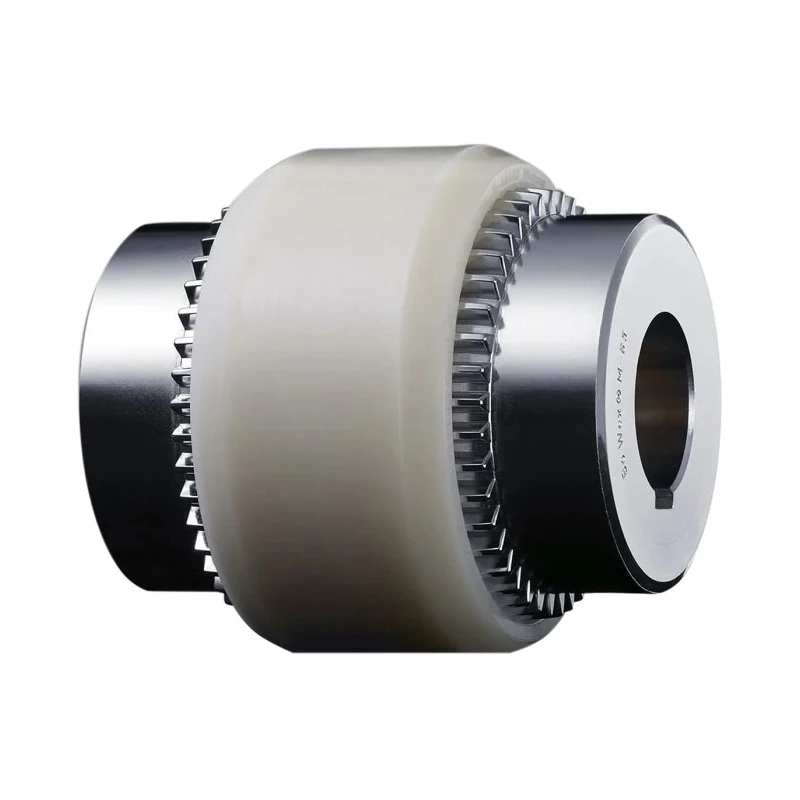

BoWex couplings can be mounted vertically or horizontally without special tools and are widely applied across industries such as food, printing and paper, textile, sewage technology, chemicals, pharmaceuticals, and offshore platforms. The package includes hubs supplied unbored for customization by the customer, with the coupling assembly consisting of two hubs and one gear coupling sleeve sold separately.
BoWex curved-tooth gear coupling hub reducing wear and edge pressure. Material combination ensures maintenance-free continuous operation. Compensates for axial, angular, and radial misalignments. Supports high torque and speed with torsionally rigid design.
Suitable for aggressive industrial environments and fluids. Compliant with ISO 16016, ATEX 95, DIN EN ISO 4029, and other standards. Easy assembly without need for special tools.
This Flexible Coupler is manufactured in Germany and designed for demanding industrial and mechanical power transmission applications. Explore the Mechanical Machinery & Spares category on EnvMart for compatible couplings and industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum speed rating for this coupler is 6000 rpm.
The torque rating of the KTR BOWEXM48-HUB-PB is 420 Nm.
This coupler is constructed from steel, stainless steel, polyamide, and nylon materials.
It can compensate for axial, radial, and angular misalignment, with an angular misalignment capacity of up to 0.6° and parallel misalignment up to 0.25 mm.
The outside diameter of this coupler is 68 mm.
This model operates efficiently at temperatures up to 100° Celsius.
Yes, it is designed for maintenance-free operation due to its material combination of steel hubs and polyamide sleeves, which allows for low friction without the need for lubrication.
This coupler is suitable for various industries including food, printing and paper, textile, sewage technology, chemicals, pharmaceuticals, and offshore platforms.
No special tools are required for mounting; it can be assembled easily without them.
It meets stringent standards including ISO 16016 and EC Directive 94/9/EC (ATEX 95).
The BoWex design avoids edge pressure and wear on teeth, ensuring a long maintenance-free service life and minimizing restoring forces during angular and radial displacements.
The package includes hubs that are supplied unbored, allowing for customization by the customer.
