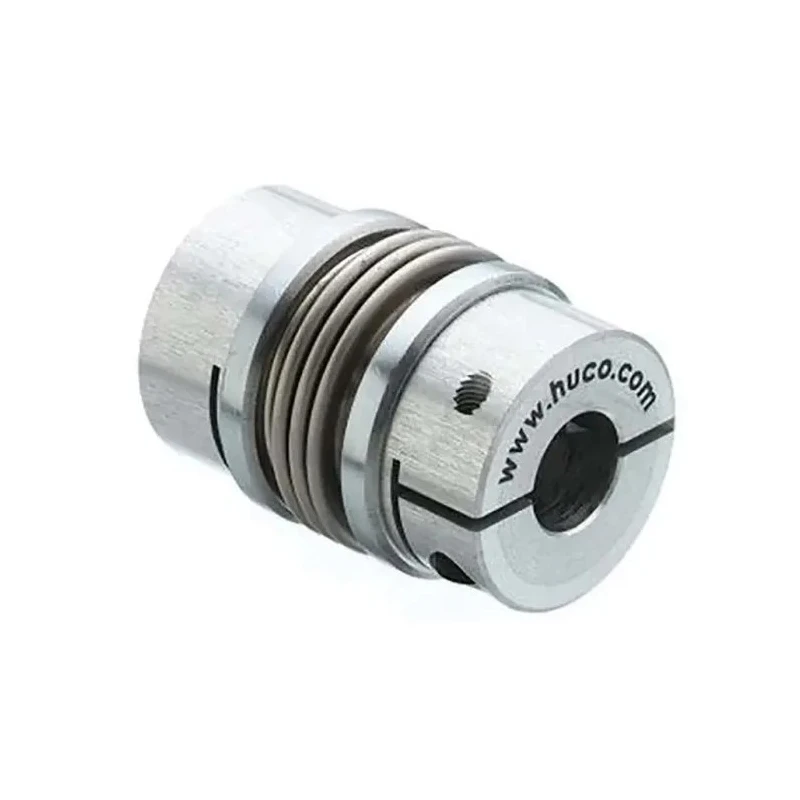

Huco Aluminium Clamp Style Flexible Coupler 65 mm Length 19 mm Bore 30 Nm Torque 120°C Max Operating Temperature 592.56.4646

Huco 592.56.4646 Flexible Coupler is a precision clamp-style coupling designed for mechanical power transmission applications requiring flexibility and accurate torque transfer. Featuring aluminium alloy hubs and stainless steel bellows, this 65 mm length coupler with 19 mm bore diameter supports maximum torques of 30 Nm and speeds up to 10,300 rpm.

The coupling provides exceptional torsional stiffness of 38,000 Nm/rad while accommodating shaft misalignments: axial up to 0.6 mm, parallel up to 0.15 mm, and angular up to 1.5 degrees. Its robust construction allows operation in extreme temperatures ranging from -30°C to 120°C, making it suitable for demanding industrial and manufacturing environments.

The clamp style connection allows for straightforward installation and secure shaft attachment using M6 screws, enhancing maintenance efficiency. The Flex K series offers advanced kinematic properties and radial compensation through the bellows design.

This flexible coupler is ideal for use in mechanical power transmissions across industrial machinery, automation systems, laboratory equipment, and HVAC applications where precise rotational alignment and vibration damping are critical.

Aluminium hubs promote lightweight strength and resistance to wear. Stainless steel bellows ensure durability under temperature variations. Flex K series offers three convolution types tailored for stiffness and motion compensation.

Clamp style design supports ease of assembly with M6 screw fasteners. Designed to minimize torsional backlash and support high-speed operation. Suitable for applications requiring reliable flexible couplings with high performance.

Explore EnvMart's range of Flexible Couplers and mechanical power transmission components for optimal industrial solutions. The Huco 592.56.4646 model delivers premium quality and technical excellence for various mechanical coupling needs.
