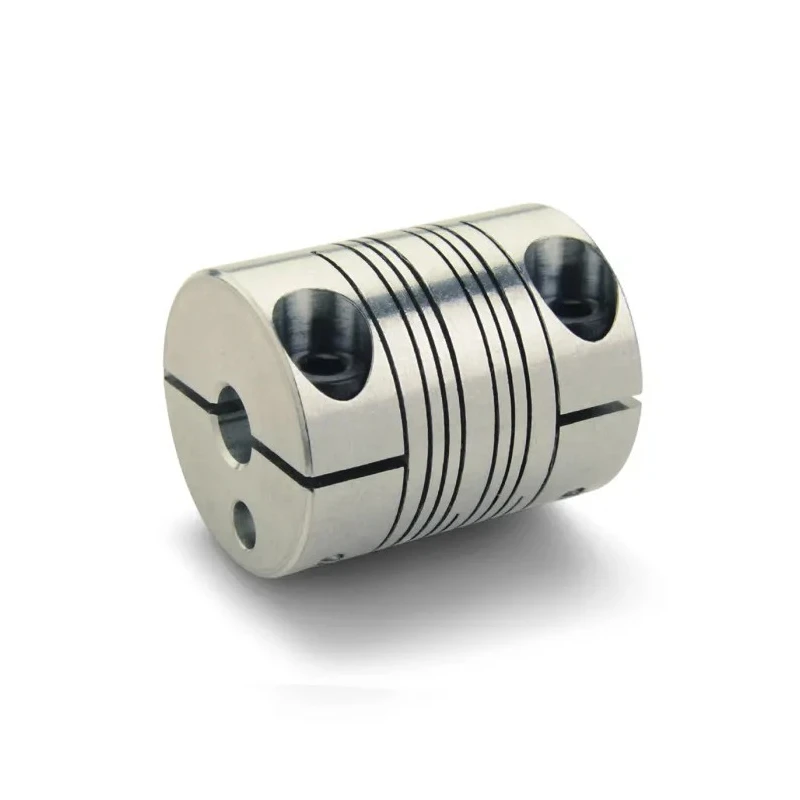

Ruland Aluminium Flexible Coupler 19.1 mm OD 6.35 mm Bore Size A 152.4 mm Bore Size B, Clamp Style, 6000 PCR12-6MM-1/4"-A

Free Delivery in India | Lowest Global Shipping Charges

Ruland Aluminium Flexible Coupler 19.1 mm OD 6.35 mm Bore Size A 152.4 mm Bore Size B, Clamp Style, 6000 PCR12-6MM-1/4"-A

Name: Ruland Aluminium Flexible Coupler 19.1 mm OD 6.35 mm Bore Size A 152.4 mm Bore Size B, Clamp Style, 6000 PCR12-6MM-1/4"-A
Brand: Ruland
SKU: 171673



Category Flexible Coupler Brand Ruland Condition New

Specifications

Country of Origin	United States
Screw Size	M2.5
Brand	Ruland
Material	Aluminium
Length	22.9mm
Model	PCR12-6MM-1/4"-A
Maximum Speed	6000rpm
Number of Beams	4
Outside diameter	19.1mm
Maximum Operating Temperature	107°C
Minimum Operating Temperature	-40°C
Torque Rating	1.58Nm
Standards/Approvals	DIN 912 12.9, RoHS3, REACH
Bore Size A	6.35mm
Moment of Inertia	0.732 x 10-6 kg/m²
Misalignment - Angular	3°
Misalignment - Parallel	0.2mm
Misalignment - Axial	0.13mm
Bore Size B	152.4mm
RS PRO, 19.1 mm OD 6 mm, 22.9 mm Length 6 mm Flexible Beam CouplingRS Stock No.	132-150Brand: RS PRO

Key Features

This coupler features a clamp style fixing for secure attachment.
It supports a maximum speed of 6000 rpm and a torque rating of 1.58 Nm.
Constructed from aluminium for lightweight and corrosion-resistant performance.
Allows up to 3° angular misalignment and 0.2 mm parallel misalignment to accommodate mechanical variances.
Operates efficiently within temperature ranges from -40°C to 107°C.
Designed with four beams providing torsionally rigid one-piece construction and zero backlash.
Typical applications include encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, and fans.
Compliance with DIN 912 12.9, RoHS3, and REACH standards ensures quality and environmental safety.

Product Description

Ruland PCR12-6MM-1/4"-A Aluminium Flexible Coupler features a 19.1 mm outside diameter and 6.35 mm bore size A with 152.4 mm bore size B, designed specifically for mechanical power transmission where higher speeds and greater misalignment occur.

This clamp style coupler allows precise torque transfer of 1.58 Nm and supports speeds up to 6000 rpm. The aluminium construction ensures lightweight durability suitable for demanding industrial, laboratory, robotics, and automation applications.

Its torsionally rigid, one-piece design eliminates mechanical joints and failure points while providing zero backlash during operation. The coupling accommodates up to 3° angular misalignment, 0.2 mm parallel misalignment, and 0.13 mm axial misalignment, increasing reliability in fluctuating mechanical environments.

The coupler's robust temperature range from -40°C to 107°C makes it suitable for a variety of environments without lubrication needs, enhancing maintenance ease and operational lifespan. Typical use cases encompass encoders, stepper motors, robotics, measuring instruments, servo systems, pumps, valves, and fans in industrial, manufacturing, and automation sectors.

This product features clamp style fixing using one socket head cap screw per shaft for secure clamping. The one-piece aluminium construction ensures high torque capacity and eliminates mechanical failure points. Its design supports reversible and high or low-speed operation without lubrication requirements.

Compliant with DIN 912 12.9, RoHS3, and REACH standards for assured quality and compliance. Manufactured in the United States, the coupler meets rigorous industrial standards.
