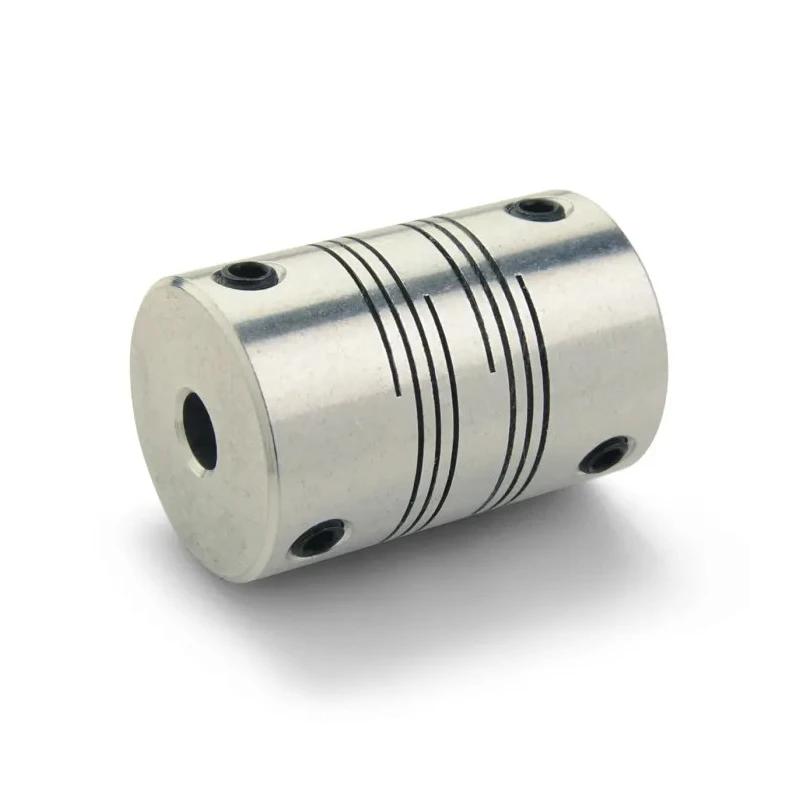

Ruland Aluminium Flexible Shaft Coupler, 31.75 mm OD, 12 mm Bore, 44.45 mm Length, Screw Style FSMR32-12-12-A

Free Delivery in India | Lowest Global Shipping Charges

Ruland Aluminium Flexible Shaft Coupler, 31.75 mm OD, 12 mm Bore, 44.45 mm Length, Screw Style FSMR32-12-12-A

Name: Ruland Aluminium Flexible Shaft Coupler, 31.75 mm OD, 12 mm Bore, 44.45 mm Length, Screw Style FSMR32-12-12-A
Brand: Ruland
SKU: 137135
Price: 80.2 USD
Availability: InStock



Category Flexible Coupler Brand Ruland Condition New

Specifications

Country of Origin	United States
Screw Size	M6
Brand	Ruland
Material	Aluminium
Length	44.45mm
Model	FSMR32-12-12-A
Maximum Speed	6000rpm
Number of Beams	6
Outside diameter	31.75mm
Maximum Operating Temperature	107°C
Minimum Operating Temperature	-40°C
Torque Rating	5.65Nm
Standards/Approvals	DIN 912 12.9, REACH, RoHS3
Moment of Inertia	11.885 x 10-6 kg/m²
Misalignment - Angular	3°
Misalignment - Parallel	0.38mm
Misalignment - Axial	0.25mm
Bore Size B	12mm
Ruland, 31.75 mm OD 12 mm, 44.45 mm Length 12 mm CouplerBrand	Ruland

Key Features

Constructed from durable aluminium for lightweight and corrosion resistance.
Features a 31.75 mm outer diameter and 12 mm bore size on both shafts.
Overall length measures 44.45 mm with screw-style fixing.
Maximum rotational speed up to 6000 rpm with a torque rating of 5.65 Nm.
Designed with 6 beams for torsional rigidity and zero backlash.
Operates reliably within temperature range -40°C to 107°C.
Complies with DIN 912 12.9, REACH, and RoHS3 standards.
Ideal for encoders, stepper motors, robotics, servo systems, pumps, valves, and fans.

Product Description

Ruland FSMR32-12-12-A aluminium flexible shaft coupler is engineered for industrial mechanical power transmission applications requiring precision and durability. This one-piece, screw-style coupling eliminates mechanical joints, reducing potential failure points and enabling high-speed operations up to 6000 rpm.

Constructed entirely from aluminium, this coupling balances strength with lightweight properties and offers excellent corrosion resistance. Its design features six beams that provide torsional rigidity and zero backlash, supporting smoothly reversible and high or low speed operations.

The coupler supports multiple misalignment types with allowances of 3° angular, 0.38 mm parallel, and 0.25 mm axial, making it suitable for applications involving shaft offset and motion variability. The bore size on both ends is 12 mm, with an outer diameter of 31.75 mm and a length of 44.45 mm to fit compact mechanical assemblies.

Operating reliably between -40°C and 107°C, this coupling meets DIN 912 12.9 material standards and conforms to REACH and RoHS3 environmental regulations. Lightweight aluminium construction ensures resistance to corrosion and suitable for high-speed use.

Screw-style fixing with M6 screws offers secure attachment to shafts. 6 beam design provides excellent torque transmission with minimal backlash. Allows up to 3° angular, 0.38 mm parallel, and 0.25 mm axial misalignment.

Suitable for servo motors, stepper motors, encoders, robotics, pumps, and valves. Temperature operating range from -40°C to 107°C. Moment of inertia of 11.885 x 10^-6 kg/m² reduces system vibration.

This coupler is predominantly used in industrial environments including automation, robotics, manufacturing, and fluid power systems where precise torque transmission and durability are critical.
