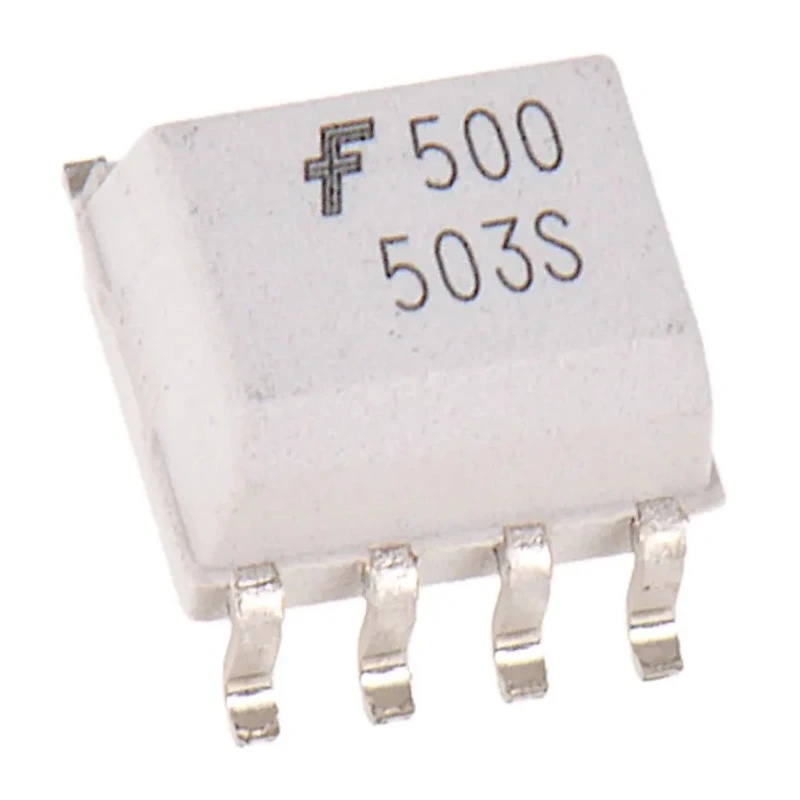

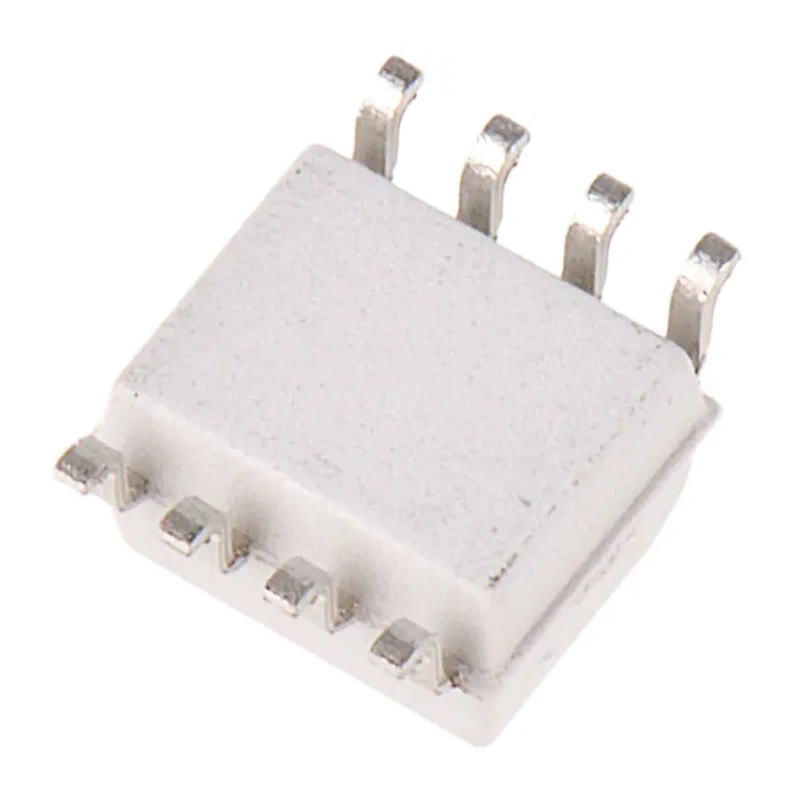

onsemi DC Input Surface Mount Optocoupler, Transistor Output, 8-Pin SOIC, 1 Channel, HCPL0500

onsemi HCPL0500 is a high-performance DC input optocoupler designed for surface mounting on PCBs, housed in an 8-Pin SOIC package. It operates with transistor output, providing electrical isolation and accurate signal transfer for industrial, electronic, and power applications.

This robust optocoupler supports one channel per device with a maximum forward voltage of 1.8 V and a maximum input current of 25 mA, making it suitable for precise control and signal conditioning. The typical rise time of 5 ns enables fast switching performance essential for responsive electronic circuits.

The device is rated for an isolation voltage of 2500 V AC and operates reliably in harsh environments with temperature ratings from -40°C to 85°C. The HCPL0500 is compliant with UL standards, ensuring stringent quality and safety benchmarks.

Packaged in tubes, the optocoupler is ready for automated insertion into assembly lines, enhancing manufacturing efficiency. Applications include industrial automation, communications equipment, power supplies, and electronic signal isolation.

Designed for surface mounting on printed circuit boards. Features transistor output for signal isolation. Supports one channel per device. Operates with a maximum forward voltage of 1.8 volts. Typical rise time is 5 nanoseconds for fast switching.

Isolation voltage rating of 2500 volts AC ensures high electrical isolation. Operating temperature range from -40°C to 85°C for industrial use. Maximum input current of 25 milliamps with DC input. Complies with UL standards ensuring reliability and safety.

Packaged in tubes for easy handling and assembly.

This onsemi HCPL0500 DC input Optocoupler combines performance and reliability for industrial and electronic component applications. Explore more in the Electronics & Electricals category at EnvMart for complementary components and connectors.
