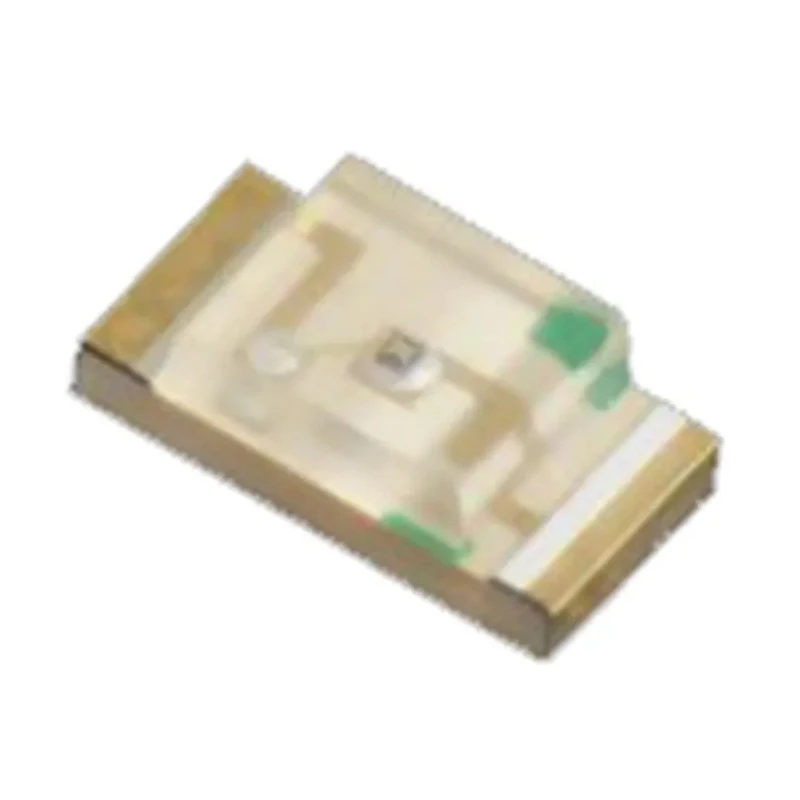

Kingbright Blue 4 V LED 3216 Surface Mount KP-3216QBC-D

Free Delivery in India | Lowest Global Shipping Charges

Kingbright Blue 4 V LED 3216 Surface Mount KP-3216QBC-D

Name: Kingbright Blue 4 V LED 3216 Surface Mount KP-3216QBC-D
Brand: Kingbright
SKU: 382283
Price: 0.2 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Height	1.1 mm
Model	KP-3216QBC-D
Packaging	Tape & Reel
Mount Type	Surface
Series	KP-3216
Maximum forward current	150mA
Viewing angle	120 °
Package Type	3216
Standards/Approvals	RoHS
LED Colour	Blue
Dominant Wavelength	465nm
Forward Voltage	4V
Number of Pins	2
LED Luminosity	100 mcd
Maximum Power Dissipation	120mW
Lens Dimensions	3.2 x 1.6 x 1.1 mm
Lens Shape	Rectangular

Key Features

The LED emits blue light with a dominant wavelength of 465nm.
It supports a maximum forward current of 150mA for reliable performance.
The rectangular lens shape provides a viewing angle of 120 degrees for wide light dispersion.
The device features a compact 3.2 x 1.6 x 1.1 mm dimension with a low profile height of 1.1 mm.
It has a maximum power dissipation of 120mW ensuring low power consumption.
The LED luminosity is rated at 100 millicandela (mcd) for efficient brightness.
Designed for surface mounting, it comes packaged in tape and reel for ease of use in automated assembly.
The product complies with RoHS standards, indicating lead-free and environmentally friendly materials.

Product Description

Kingbright KP-3216QBC-D is a high-quality 4 V blue LED designed in a 3216 (1206) surface mount package. With precise dimensions of 3.2 x 1.6 x 1.1 mm and low profile height of 1.1 mm, this compact LED integrates easily into various electronic assemblies.

This rectangular lens LED emits blue light with a dominant wavelength of 465nm. It features a wide viewing angle of 120°, allowing for broad light distribution, suitable for applications requiring uniform backlighting or status indication.

It supports a maximum forward current of 150mA and a maximum power dissipation of 120mW, providing reliable brightness output while maintaining low power consumption. The LED brightness is rated at 100 millicandela, balancing visibility with energy efficiency.

Packaged in tape and reel format, the device facilitates efficient automated manufacturing processes typical in electronics production. The LED has 2 pins for straightforward surface mount soldering.

Kingbright KP-3216QBC-D is RoHS compliant, ensuring it meets environmental and health regulations by being free from hazardous substances. Manufactured in China, this component is widely used for industrial, consumer electronics, and embedded system indicator lighting.

The LED emits blue light at 465nm wavelength. Supports a maximum current of 150mA. Compact 3216 rectangular surface mount package. 120° wide viewing angle. Low height profile of 1.1 mm. Power dissipation up to 120mW. LED brightness of 100 millicandela.

Compliant with RoHS standards. Packaged in tape and reel for automated PCB assembly. Dual-pin configuration for mounting.

Kingbright LEDs are trusted components in electronics manufacturing for indicator lights and backlighting in industrial, automotive, and consumer devices. Browse our Electronics Components category for more LED solutions and other optoelectronic devices on EnvMart.
