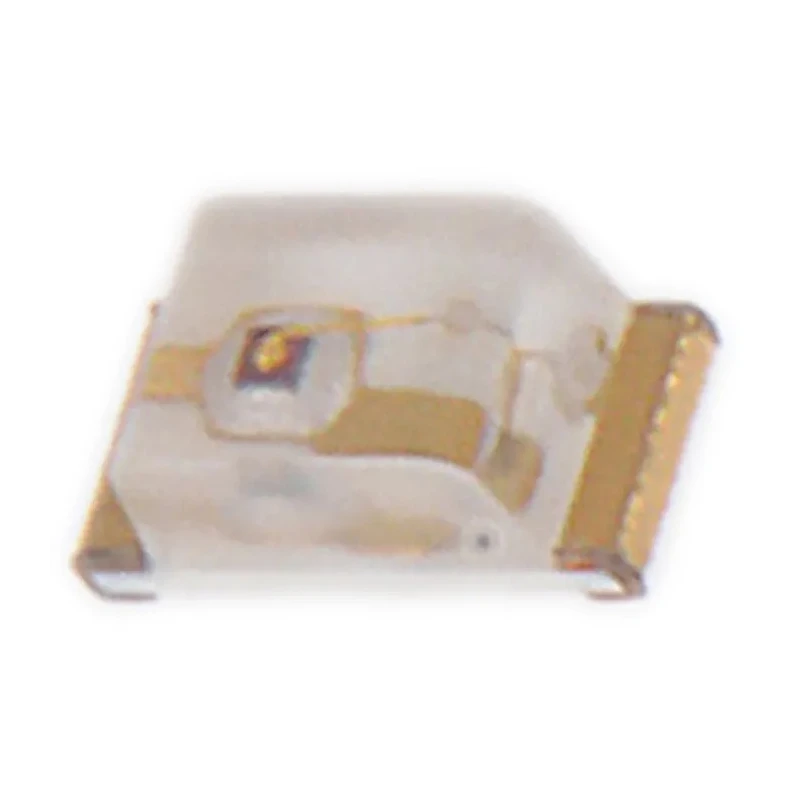

Kingbright 2.5 V 75mW Red LED 0603 Surface Mount SMT Chip LED 230 mcd KPH-1608SURCK

Kingbright KPH-1608SURCK is a surface-mount technology (SMT) chip LED designed for industrial and commercial electronics applications. This red LED operates at a forward voltage of 2.5 V with a maximum power dissipation of 75 mW, making it highly energy-efficient for display and indicator purposes.

The device features a compact 0603 package with precise lens dimensions of 1.6 x 0.8 x 0.65 mm, allowing it to fit on densely populated printed circuit boards. Its wide 120-degree viewing angle and rectangular clear lens shape offer excellent visibility from multiple perspectives, suitable for indicator lights and backlit displays.

With a maximum forward current of 185 mA, this LED achieves a brightness level of 230 millicandela (mcd) at a dominant wavelength of 630 nm, ensuring vibrant red illumination for diverse applications. Its surface mount package is taped and reeled for streamlined automated placement, enhancing production efficiency.

The product meets RoHS compliance standards, ensuring it is environmentally friendly and safe for use in modern electronic devices. The absence of an automotive standard designation indicates it is intended for general commercial and industrial use rather than automotive systems.

Industry-standard 0603 SMT LED package measuring 1.6 x 0.8 x 0.65 mm. Maximum forward current rating of 185 mA for robust operation. Maximum power dissipation of 75 mW provides energy efficiency. Wide 120-degree viewing angle providing excellent visibility.

Bright red light output with 230 mcd luminosity at 630 nm wavelength. Clear rectangular lens ensuring consistent light projection and color purity. Complies with RoHS directives, ensuring environmental safety. Surface mount type designed for automated PCB assembly on tape and reel packaging.

Manufactured in China to high quality standards.

This LED is ideal for industrial electronics, laboratory equipment, consumer electronics, and display applications where efficient and bright red illumination is required. Its compact size and surface mount form factor enable high-density board designs, commonly found in modern manufacturing and assembly environments.

Explore the full range of Kingbright LEDs and other electronic components on EnvMart for reliable, high-quality products suited to your technical requirements.
