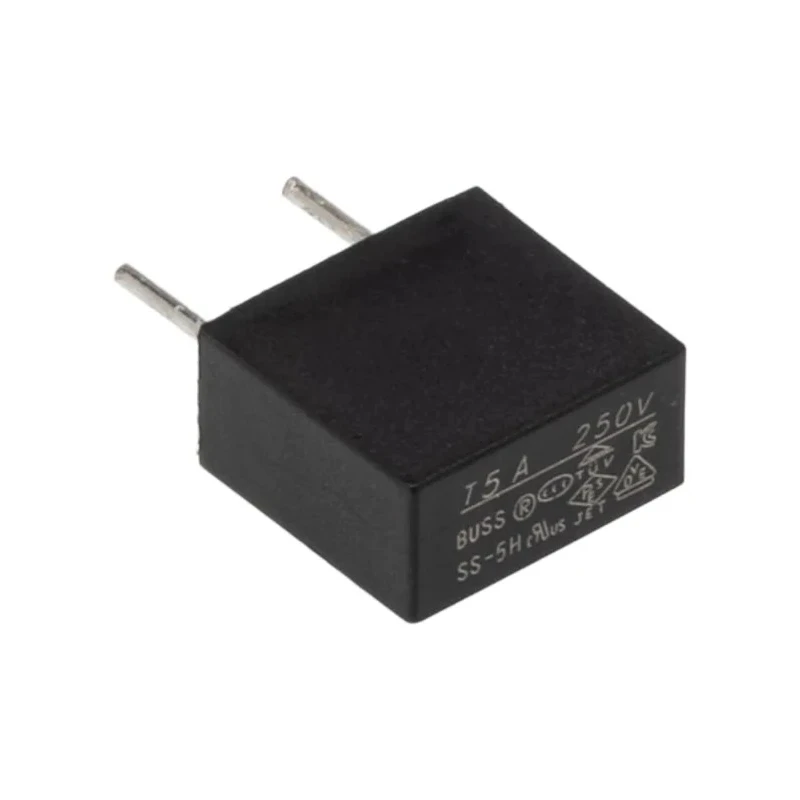

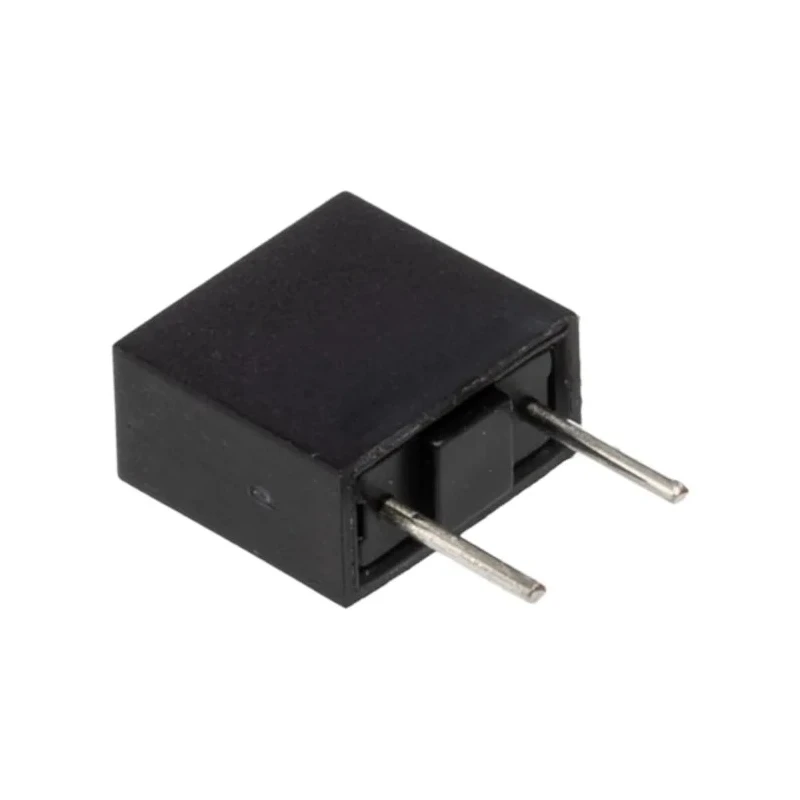

Eaton Fuse, Radial 5A Time Delay 250V AC Plastic Body SS-5H-5A-BK

Eaton SS-5H-5A-BK fuse is a time-delay radial fuse rated for 5A current and 250V AC operation. It features a durable plastic body designed to withstand handling damage and simplify mounting in control and automation systems.

This fuse type is ideal for low-voltage AC circuits where short-duration current surges occur, such as motor starters and industrial control panels. Its slow-blow (time-delay) characteristic protects against sustained overloads while tolerating temporary inrush without nuisance trips.

The compact radial leads with a 0.76mm diameter facilitate secure through-hole PCB or wiring connections, suitable where axial routing is not practical. Its breaking capacity of 100A safely interrupts fault currents limiting potential damage.

Operating temperature range from -40°C to +125°C allows this fuse to work reliably in varied ambient conditions commonly found in industrial and laboratory equipment.

Applications include motor starter circuits with high inrush, automation control panels, power supply protection for test equipment, and ancillary circuitry in mechanical plant systems.

The time-delay fuse tolerates inrush currents without nuisance tripping. Plastic body construction offers handling durability and mounting ease. Radial lead orientation with 0.76mm diameter enables secure connections. 100A breaking capacity ensures safe fault interruption.

Wide -40°C to +125°C operating temperature range. Compact size allows dense panel and PCB packing. Suitable for motor starter and industrial automation circuits. Compliant with UL and RoHS standards.

This Eaton SS-5H series fuse combines durability, reliable performance, and compliance suitable for industrial automation and electrical protection systems. Browse more non-resettable Fuses in EnvMart's comprehensive electrical components category.
