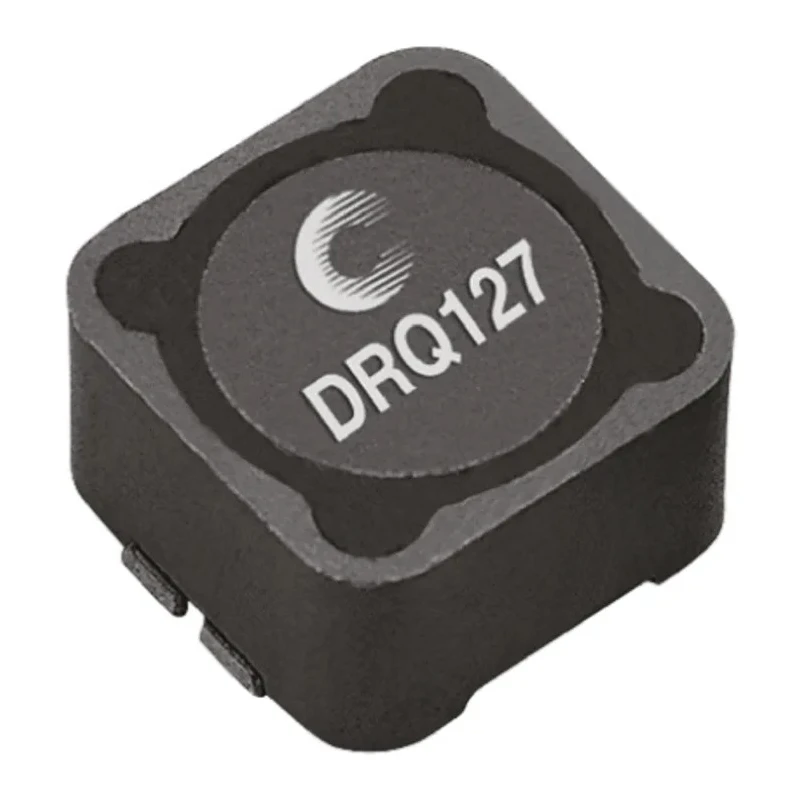

Eaton Shielded Surface Mount Inductor with Ferrite Core 47 μH ±20% 5.28A IDC, Model DRQ127-470-R
Specifications
| Country of Origin | China |
|---|---|
| Brand | Eaton |
| Height | 8mm |
| Length | 12.5mm |
| Model | DRQ127-470-R |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | DRQ |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Package/Case | 0127 |
| Maximum DC Current | 5.28A |
| Pin Count | 4 |
| Maximum DC Resistance | 288mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
Key Features
- Features a wirewound construction with 4 pins and shielded design.
- Constructed with a ferrite core ideal for high-temperature applications up to 125°C.
- Compact package size 0127 with dimensions 12.5mm length, 8mm height, and 12.5mm depth.
- Suitable for use in DC-DC converters, VRM inductors, and filter chokes in industrial electronics.
- Complies with RoHS standards ensuring environmentally compliant manufacturing.
- Offers a maximum DC resistance of 288 mΩ and maximum self-resonant frequency of 100 kHz.
- Operates reliably in temperatures ranging from -40°C to 125°C.
- Packaged on reels for efficient assembly and surface mounting applications.
Product Description
Eaton DRQ127-470-R Shielded Surface Mount Inductor is designed with a ferrite core and wirewound construction, delivering 47 μH inductance with ±20% tolerance and a maximum DC current of 5.28 A. Its surface mount termination style and 4-pin configuration facilitate compact and efficient PCB assembly.
The inductor’s robust design supports operating temperatures from -40°C to 125°C, making it suitable for demanding industrial, electronic, and power applications including DC-DC converters, VRM inductors for CPUs and DDR memory power supplies, input/output filter chokes, and coupled inductor circuits.
Its shielded design minimizes electromagnetic interference, improving circuit stability. The compact 0127 package measures 12.5mm in length, 8mm in height, and 12.5mm in depth, suitable for space-constrained layouts. Maximum DC resistance is 288 mΩ, with a maximum self-resonant frequency of 100 kHz to ensure reliable performance across frequency ranges.
Manufactured according to RoHS standards, this component supports environmentally safe electronic designs. Packaged on reels, it streamlines automated surface mounting processes.
Common industrial use cases include power management in computing devices, telecommunications, automotive electronic systems (non-automotive standard compliant), and general electronic circuitry requiring stable inductance characteristics and high current handling.
Features a wirewound construction with 4 pins and shielded design. Constructed with a ferrite core ideal for high-temperature applications up to 125°C. Compact package size 0127 with dimensions 12.5mm length, 8mm height, and 12.5mm depth.
Suitable for use in DC-DC converters, VRM inductors, and filter chokes in industrial electronics. Complies with RoHS standards ensuring environmentally compliant manufacturing. Offers a maximum DC resistance of 288 mΩ and maximum self-resonant frequency of 100 kHz.
Operates reliably in temperatures ranging from -40°C to 125°C. Packaged on reels for efficient assembly and surface mounting applications. Explore more surface mount Inductors and ferrite core products at EnvMart to meet your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 47 μH with a tolerance of ±20%.
The maximum DC current for this inductor is 5.28 A.
It has a compact size with dimensions of 12.5 mm in length, 8 mm in height, and 12.5 mm in depth.
It operates reliably in temperatures ranging from -40°C to 125°C.
It features a wirewound construction with a shielded design, constructed with a ferrite core.
The maximum DC resistance is 288 mΩ.
The maximum self-resonant frequency is 100 kHz.
This model has a surface mount termination style.
It is suitable for use in DC-DC converters, VRM inductors, and filter chokes in industrial electronics.
It is packaged on reels for efficient assembly and surface mounting applications.
Yes, it complies with RoHS standards, ensuring environmentally compliant manufacturing.
This inductor features a 4-pin configuration.
