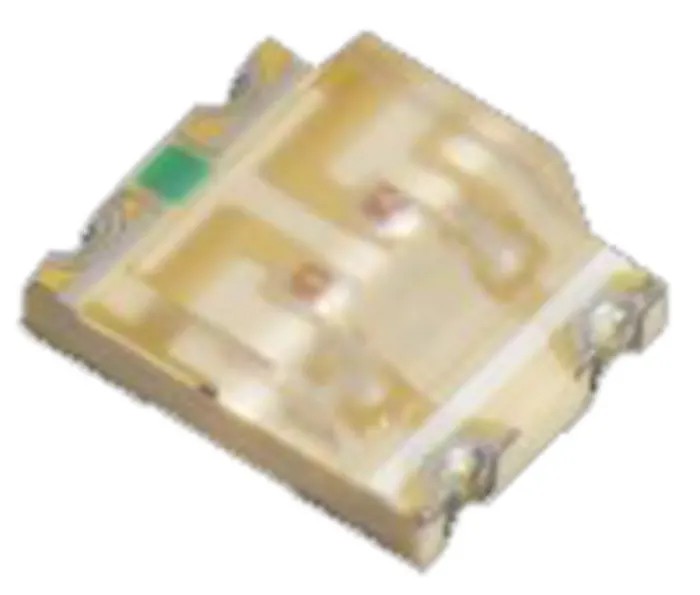

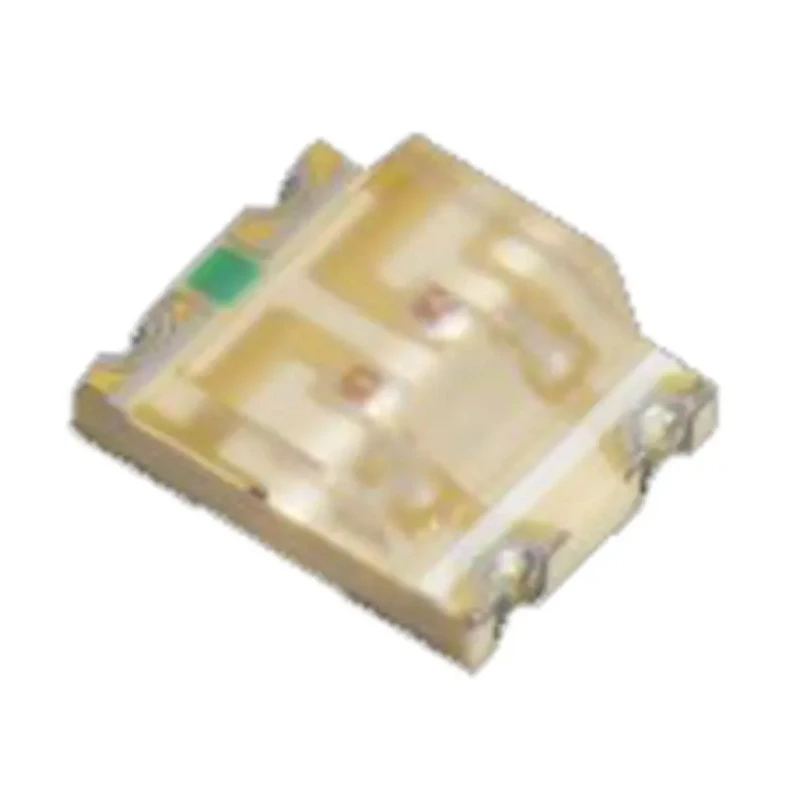

Kingbright 2.5 V Red, Green LED 3025 Surface Mount Bi-Colour Indicator KPBL-3025SURKCGKC

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 2.5 V Red, Green LED 3025 Surface Mount Bi-Colour Indicator KPBL-3025SURKCGKC

Name: Kingbright 2.5 V Red, Green LED 3025 Surface Mount Bi-Colour Indicator KPBL-3025SURKCGKC
Brand: Kingbright
SKU: 382295
Price: 0.26 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	3.0 x 2.5 mm
Model	KPBL-3025SURKCGKC
Packaging	Tape & Reel
Mount Type	Surface
Number Of Leds	2
Maximum forward current	30mA
Viewing angle	100 °
Package Type	3025
Standards/Approvals	RoHS
LED Colour	Red, Green
Dominant Wavelength	630nm
Forward Voltage	2.5V
Number of Pins	4
LED Luminosity	120 mcd, 600 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	3 x 2.5 x 1.4 mm
Lens Shape	Dome

Key Features

This LED features a 3025 package suitable for surface mounting on electronic boards.
It emits red and green colours for versatile indication applications.
The maximum forward current is 30 mA for efficient low power operation.
The wide viewing angle of 100 degrees allows clear visibility from various directions.
Lens dimensions are compact at 3 x 2.5 x 1.4 mm with a dome shape and clear finish.
The LED provides luminosity levels of 120 mcd (red) and 600 mcd (green) for bright indication.
It is RoHS compliant, ensuring environmental and safety standards.
The device has 4 pins and supports tape and reel packaging for automated assembly.

Product Description

Kingbright KPBL-3025SURKCGKC is a high-quality 2.5 V bi-colour LED in a SMT 3025 surface mount package. It features both red and green LEDs integrated into a single device, designed to provide versatile status indication with a maximum forward current of 30 mA and maximum power dissipation of 75 mW. The 1109 (3025) SMT package offers compact dimensions of 3.0 x 2.5 mm and a dome-shaped clear lens measuring 3 x 2.5 x 1.4 mm allowing a wide 100° viewing angle for excellent visibility.

The LED luminosity is rated at 120 mcd for red and 600 mcd for green, making it suitable for use as indicator lights or backlights in various electronic assemblies, control panels, instrumentation, and consumer devices. This device incorporates a 4-pin configuration and is supplied on tape and reel packaging for efficient insertion in surface mount production lines. Featuring RoHS compliance and manufactured in China, this LED fulfills industrial and commercial applications requiring reliable, low power consumption bi-colour status indicators.

Applications include industrial electronics, instrumentation, status indicators, backlighting in commercial and consumer devices, and other electronic equipment where durable, bright bi-colour LED signalling is essential. The compact size and surface mount design enable integration into densely populated circuit boards.

Surface mount 3025 package bi-colour LED with red and green colours. Forward voltage of 2.5 V supports low power operation. Maximum forward current of 30 mA and power dissipation of 75 mW. Wide 100° viewing angle for enhanced visibility in applications.

Compact lens with dome shape and clear finish measuring 3 x 2.5 x 1.4 mm. Luminosity ratings of 120 mcd (red) and 600 mcd (green). RoHS compliant for environmental safety and quality assurance. Supplied on tape and reel packaging for automated assembly.

Ideal for backlight, indicator, and electronic display applications. Explore more LED, optoelectronic components, and surface mount devices at EnvMart for your industrial, commercial, and laboratory electronics needs.
