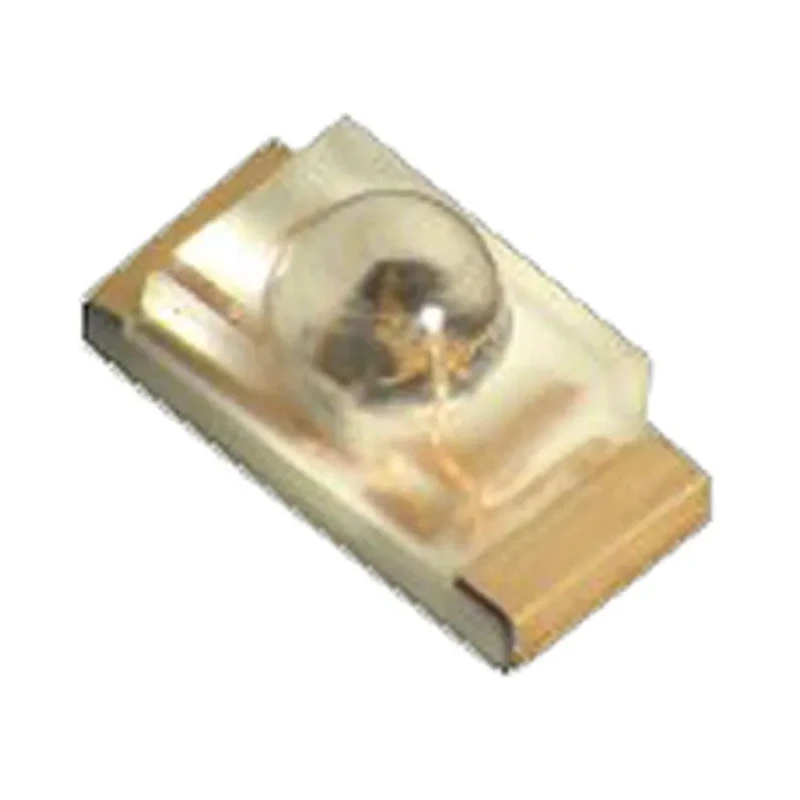

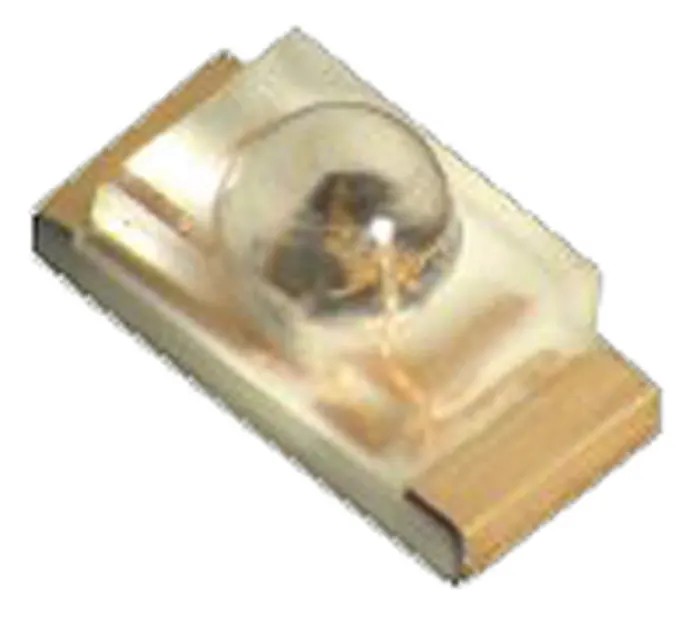

Kingbright 2.5 V Yellow Surface Mount LED 0603 Package Dome Lens 450 mcd KPTD-1608SYCK

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 2.5 V Yellow Surface Mount LED 0603 Package Dome Lens 450 mcd KPTD-1608SYCK

Name: Kingbright 2.5 V Yellow Surface Mount LED 0603 Package Dome Lens 450 mcd KPTD-1608SYCK
Brand: Kingbright
SKU: 382301
Price: 0.22 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Dimensions	1.6 x 0.8 mm
Model	KPTD-1608SYCK
Packaging	Tape & Reel
Mount Type	Surface
Series	KPTD-1608
Maximum forward current	175mA
Viewing angle	60 °
Package Type	0603
Standards/Approvals	RoHS
LED Colour	Yellow
Dominant Wavelength	590nm
Forward Voltage	2.5V
Number of Pins	2
LED Luminosity	450 mcd
Maximum Power Dissipation	75mW
Lens Dimensions	1.6 x 0.8 x 0.95 mm
Lens Shape	Dome

Key Features

The LED operates at a maximum forward current of 175 mA ensuring efficient low power consumption.
It has a forward voltage rating of 2.5 volts suitable for various low voltage applications.
The dome-shaped lens provides a clear finish and a wide 60° viewing angle for bright and focused illumination.
Designed for surface mount technology (SMT) with a compact 1.6 x 0.8 mm footprint for easy integration on PCBs.
The LED emits yellow light with a dominant wavelength of 590 nm, ideal for indicators and backlighting.
It is RoHS compliant, ensuring adherence to environmental safety standards.
Packaging is tape and reel, facilitating efficient assembly in manufacturing environments.
The LED has two pins and a maximum power dissipation of 75 mW for reliable operation.

Product Description

Kingbright KPTD-1608SYCK is a high-quality 2.5 V Yellow LED designed for surface mount (SMT) applications, packaged in a standard compact 0603 footprint with dome lens technology. It measures 1.6 x 0.8 mm with a lens thickness of 0.95 mm, offering excellent visual performance with a luminous intensity of 450 millicandela (mcd) and a 60° viewing angle. This yellow LED emits light at a dominant wavelength of 590 nm, making it suitable for use in electronic indicators, backlighting in displays, and other signaling applications.

The device supports a maximum forward current of 175 mA and a forward voltage of 2.5 V with a maximum power dissipation of 75 mW. Its surface mount design and tape and reel packaging enable seamless automated assembly and integration onto printed circuit boards (PCBs). The dome-shaped clear lens enhances brightness and optical clarity, while the component is RoHS compliant, which aligns with industry environmental norms for electronic manufacturing.

This LED is engineered for extensive industrial use including electronics manufacturing, instrumentation, display backlighting, and other commercial and consumer electronic applications. It is made in China and carries the Kingbright quality assurance.

The LED operates with low power consumption and high efficiency. Its dome lens design provides enhanced light output with a broad viewing angle. Standard 0603 package ensures wide compatibility with SMT assembly lines. RoHS compliance guarantees environmentally safe usage and disposal.

Tape and reel packaging improves handling and production throughput. Compact size facilitates inclusion in small-scale electronic devices and densely populated PCBs. Yellow color emission is ideal for indication and decorative lighting.

Reliable operation under specified electrical conditions supports durability. Explore a wide range of Kingbright LEDs and electronic components on EnvMart for diverse industrial, laboratory, and commercial electronic applications.
