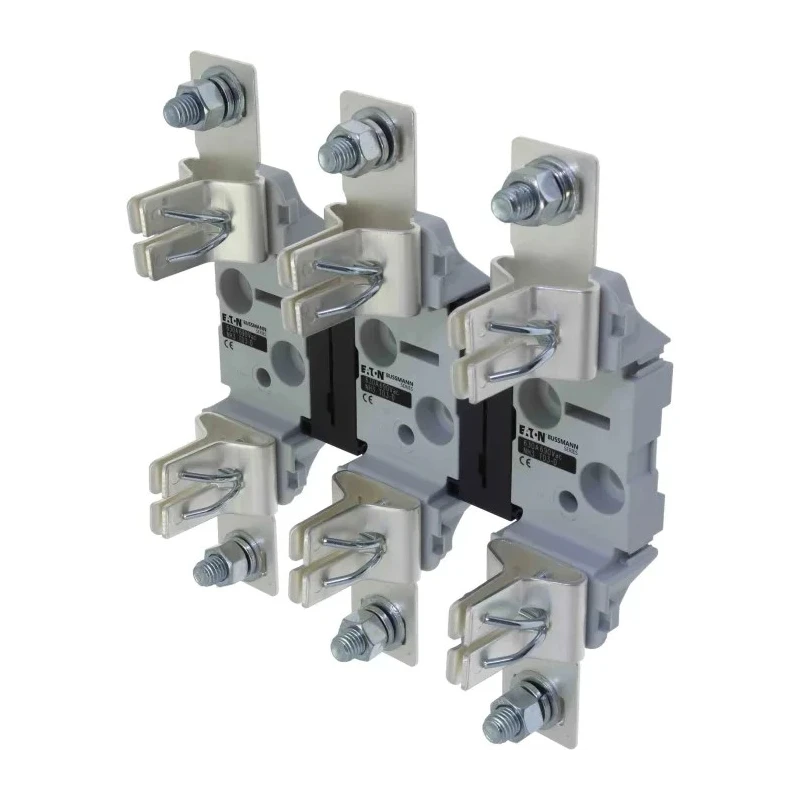

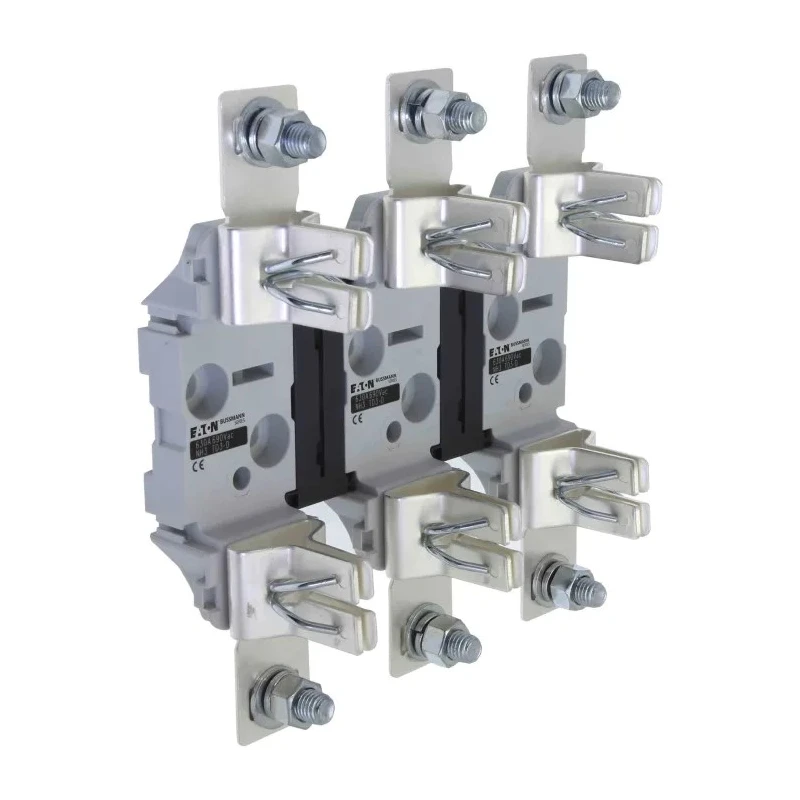

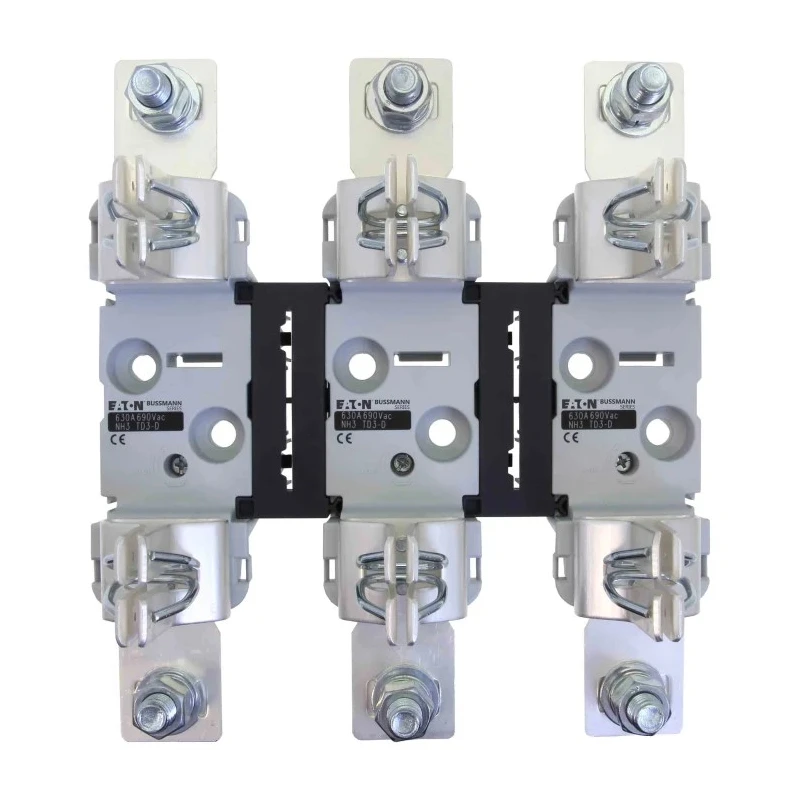

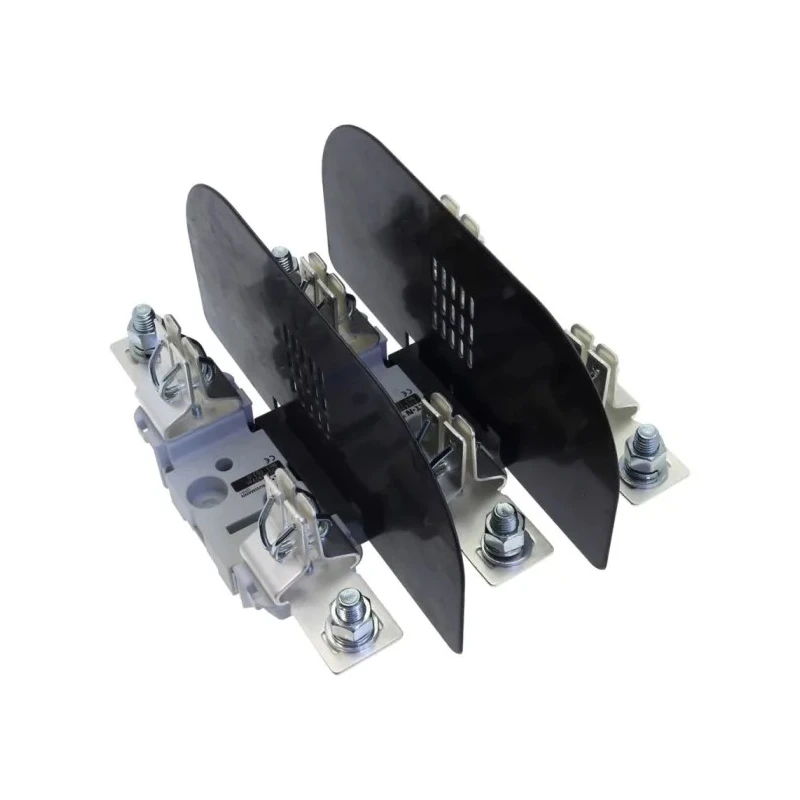

Eaton 630A Rail Mount Fuse Holder 3P-Pole, 690V AC TD3-D
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 690V ac |
| Range | 160 to 1600 A |
| Brand | Eaton |
| Model | TD3-D |
| Case Material | Glass Filled Polybutylene Terephthalate |
| Contact Material | Silver Plated Copper |
| Current Rating | 630A |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Rail Type | DIN 35 mm |
| Compatible Fuse Size | 3 |
| Cooper Bussmann 630A Rail Mount Fuse Holder Base for 3 Fuse, 3P, 690V acBrand | Cooper Bussmann |
Key Features
- Designed for rail mount installation on DIN 35 mm rails.
- Compatible with NH3 fuse size for versatile application.
- Equipped with anti-vibration feature ensuring stability and durability.
- Constructed with glass filled polybutylene terephthalate case material.
- Silver plated copper contacts enhance electrical conductivity.
- Screw type terminals provide secure connections.
- Operates safely between -20°C and 70°C temperature range.
- Complies with IEC 60269-1 and 2, VDE 0636-1 and 2 standards.
Product Description
Eaton TD3-D Rail Mount Fuse Holder is a premium product designed for efficient and safe electrical circuit protection in industrial and commercial applications. Rated for 630A current and 690V AC voltage, this fuse holder is configured for 3 pole (3P) three-phase systems. It mounts conveniently on DIN 35 mm mounting rails, enabling streamlined installation and maintenance.
The case is made of durable glass filled polybutylene terephthalate, providing mechanical strength and heat resistance. Silver plated copper contacts ensure excellent conductivity and reliable electrical performance. The fuse holder incorporates an anti-vibration design that guarantees stable fuse retention even in environments with mechanical vibrations.
With an operating temperature range from -20°C to 70°C, and IP20 protection rating, the TD3-D fuse holder safeguards equipment against dust ingress and occasional water exposure. It is compatible with NH3 fuse sizes, adding to its versatility across different electrical setup needs.
Certified to meet IEC 60269-1 and 2 and VDE 0636-1 and 2 standards, this fuse holder complies with rigorous international safety and performance criteria. It features screw-type terminals for secure and easy electrical connections.
Inserted in industrial automation systems, electrical control panels, manufacturing facilities, and commercial power distribution networks, the Eaton TD3-D rail mount fuse holder delivers dependable circuit protection and operational reliability.
Rail mount design for simple installation on DIN 35 mm rails. Compatible with NH3 fuse sizes for flexible application. Anti-vibration features enhance durability and operational stability. Constructed from glass filled polybutylene terephthalate for robustness.
Silver plated copper contact material ensures excellent conductivity. Screw terminal type for firm electrical connections. Operating temperature range from -20°C to 70°C. Complies with IEC 60269-1, IEC 60269-2 and VDE 0636-1, VDE 0636-2 standards.
IP20 protection rating for dust and water ingress protection. Ideal for industrial, commercial power distribution and automation applications. Explore additional Eaton products and premium Fuse Holders in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton TD3-D rail mount fuse holder has a current rating of 630A.
This model operates at a voltage of 690V AC.
It operates safely within a temperature range of -20°C to 70°C.
It features screw-type terminals for secure electrical connections.
The case is made from glass filled polybutylene terephthalate, providing mechanical strength and heat resistance.
This fuse holder is configured for 3 poles (3P).
It is compatible with NH3 fuse sizes, allowing for versatile applications.
It complies with IEC 60269-1, IEC 60269-2, VDE 0636-1, and VDE 0636-2 standards.
The TD3-D has an IP20 protection rating, safeguarding against dust ingress and occasional water exposure.
It is designed for mounting on DIN 35 mm rails.
It incorporates an anti-vibration design to ensure stable fuse retention even in mechanically vibrating environments.
This model is suitable for industrial automation systems, electrical control panels, and commercial power distribution networks.
